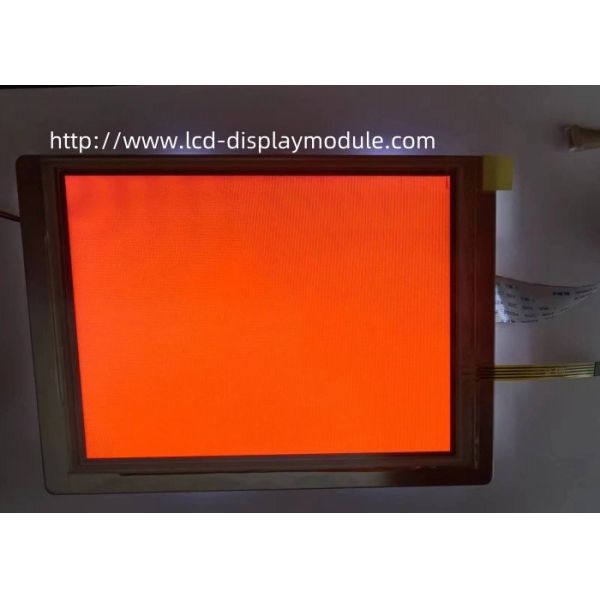

5.7 Inch 320 X 240 TFT LCD Display Module
5.7 Inch 320 X 240 TFT LCD Display Module
5.7 Inch 320 X 240 TFT LCD Display Module
5.7 Inch 320 X 240 TFT LCD Display Module
5.7 Inch 320 X 240 TFT LCD Display Module
5.7 Inch 320 X 240 TFT LCD Display Module
5.7 Inch 320 X 240 TFT LCD Display Module
5.7 Inch 320 X 240 TFT LCD Display Module
5.7 Inch 320 X 240 TFT LCD Display Module
5.7 Inch 320 X 240 TFT LCD Display Module
Specifications
Brand Name :
Elite Tree
Model Number :
ETT57SP7J1RA
Certification :
ISO9001:2015 / ISO14001/TS16949
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100Kpcs~ per month
Delivery Time :
5days for sample and 20-25 days for mass production
Packaging Details :
In anti-statics bag packed in carton or according to the customer's requirement
Display Type :
5.7 inch TFT Display
Viewing Direction :
6 O'clock
Display Mode :
Normally White/Transmissive/Wide View
Brightness :
800 CD/m2
Active Area :
115.20 * 86.40 mm
Outline dimension :
144.00* 140.60
Touch Panel :
Optional (CTP or RTP)
Surface Hardness :
3H
Backlight :
30-chips LED;
Resolution :
320 * 240
Description

5.7 inch 320*240 RGB Interface TFT display with​ Optional Touch Screen

TFT LCD Display Module

Company Information

To take the purpose of 'quality first and customer first', Elite Tree Technology will show you the capability and advantages we have. How that we can carry on cooperation with our customers in strong and good business partner relationship! Let's grow and develop together, with win-win!

Product Information

Display Type 5.7 inch TFT Display
Display format 320 * 240 Resolution
Outline dimension 144.00* 140.60mm
Active area 115.20 * 86.40 mm
IC package
 COG
Interface
 Digital RGB (6bits/Color) Data Transfer
Touch panel optional Yes, Resistance or Capacitive Touch Screen
Viewing direction 6 O'clock
LED backlight color
 White
Backlight current (typ) 30 Chip white LED
Operating temp
 -20ºc~70ºc
Storage temperature -30ºc~80ºc
If accept customized Yes
RoHS compliance Yes

Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours

​Application

Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

5.7 Inch 320 X 240 TFT LCD Display Module

Product Drawing

​5.7 Inch 320 X 240 TFT LCD Display Module
