16bit MPU 240 * 320 2.4 TFT Screen , QVGA IPS Panel Full Viewing TFT Touch Screen
16bit MPU 240 * 320 2.4 TFT Screen , QVGA IPS Panel Full Viewing TFT Touch Screen
16bit MPU 240 * 320 2.4 TFT Screen , QVGA IPS Panel Full Viewing TFT Touch Screen
16bit MPU 240 * 320 2.4 TFT Screen , QVGA IPS Panel Full Viewing TFT Touch Screen
16bit MPU 240 * 320 2.4 TFT Screen , QVGA IPS Panel Full Viewing TFT Touch Screen
16bit MPU 240 * 320 2.4 TFT Screen , QVGA IPS Panel Full Viewing TFT Touch Screen
Specifications
Brand Name :
Elite Tree
Model Number :
ET240NP03
Certification :
ISO9001:2015 / ISO14001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100Kpcs~ per month
Delivery Time :
5days for sample and 20-25 days for mass production
Packaging Details :
In anti-statics bag packed in carton or according to the customer's requirement
Display Type :
TFT LCD Screen 2.4'' 240 * 320
Viewing Direction :
Full Viewing
Driver IC :
IL9341V
Interface :
16bit MPU
Description

TFT 2.4'' 240 * 320 Resolution IPS QVGA TFT LCD Screen IPS Panel Full viewing​

TFT LCD Screen

Product Information

Display Type 2.4'' TFT LCD Screen
Resolution 240 * 320
Outline dimension 60.40mm * 42.72mm * 2.21mm
Active area 48.96mm * 36.72 mm
Interface 16bit MPU
Driver IC IL9341V
Touch panel optional Optional
Viewing direction Full Viewing
LED backlight color
 White LED * 4pcs
Brightness 400cd/m2
Operating temp
 -20ºc~70ºc
Storage temperature -30ºc~80ºc
If accept customized Yes
RoHS compliance Yes

Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours

​Application

Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

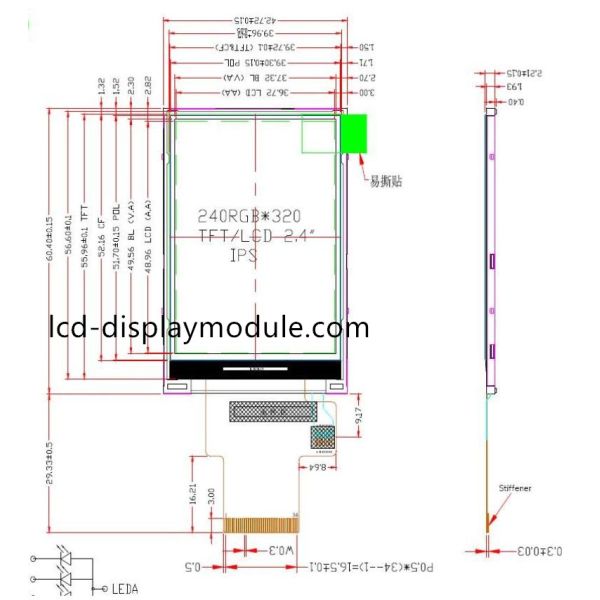

Product Drawing (PIN Definition)

16bit MPU 240 * 320 2.4 TFT Screen , QVGA IPS Panel Full Viewing TFT Touch Screen​
