Character LCD 8 * 1 Transflective LCD Display FSTN Positive 3.3V Driving Voltage
Character LCD 8 * 1 Transflective LCD Display FSTN Positive 3.3V Driving Voltage
Character LCD 8 * 1 Transflective LCD Display FSTN Positive 3.3V Driving Voltage
Character LCD 8 * 1 Transflective LCD Display FSTN Positive 3.3V Driving Voltage
Character LCD 8 * 1 Transflective LCD Display FSTN Positive 3.3V Driving Voltage
Character LCD 8 * 1 Transflective LCD Display FSTN Positive 3.3V Driving Voltage
Specifications
Brand Name :
Elite Tree
Model Number :
ET0801B15
Certification :
ISO9001:2015 / ISO14001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
300Kpcs~ per month
Delivery Time :
5days for sample and 20-25 days for mass production
Packaging Details :
In anti-statics bag packed in carton or according to the customer's requirement
Display Type :
FSTN/Transflective/Positive
Viewing Direction :
12 O'clock
Driver IC :
ST7070 OR EQUIVALENT
Interface :
SERIAL, 3-SPI
Description

Character LCD 8*1 LCD Display Screen FSTN Transflective Positive

LCD Display Screen
Product Information
Display Type FSTN 8*1 Character LCD Display Screen
Polarizer Type Transflective Positive
Viewing Area (mm*mm)
.939.40mm * 8.00mm
Outline Dimension (mm*mm) 55.00mm * 17.00mm * 9.50mm
Driving Voltage 3.3V
Viewing Angle 12 O'clock
Driver IC ST7070 OR EQUIVALENT
Backlight Red
Customized Customized accepted

Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours

​Application

Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers, Smart Watch,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

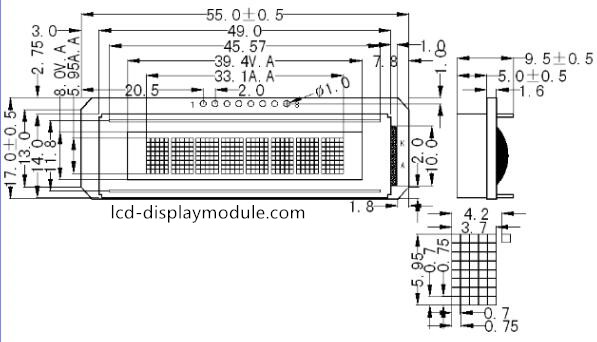

Outline Drawing


Character LCD 8 * 1 Transflective LCD Display FSTN Positive 3.3V Driving Voltage
