High Resolution 1024 * 600 Customized TFT LCD 300cd / m2 Brightness White Backlight
High Resolution 1024 * 600 Customized TFT LCD 300cd / m2 Brightness White Backlight
High Resolution 1024 * 600 Customized TFT LCD 300cd / m2 Brightness White Backlight
High Resolution 1024 * 600 Customized TFT LCD 300cd / m2 Brightness White Backlight
High Resolution 1024 * 600 Customized TFT LCD 300cd / m2 Brightness White Backlight
High Resolution 1024 * 600 Customized TFT LCD 300cd / m2 Brightness White Backlight
Specifications
Brand Name :
Elite Tree
Model Number :
ET900NP01
Certification :
ISO9001:2015 / ISO14001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100Kpcs~ per month
Delivery Time :
5days for sample and 20-25 days for mass production
Packaging Details :
In anti-statics bag packed in carton or according to the customer's requirement
Display Type :
TFT LCD Screen 9'' 1024*RGB*600
Viewing Direction :
6 o'clock/optional
Operting Voltage :
3.3V
Backlight :
White 27 LEDs
Interface :
LVDS
Driver IC :
EK79001AG+EK73215BCGA
Description

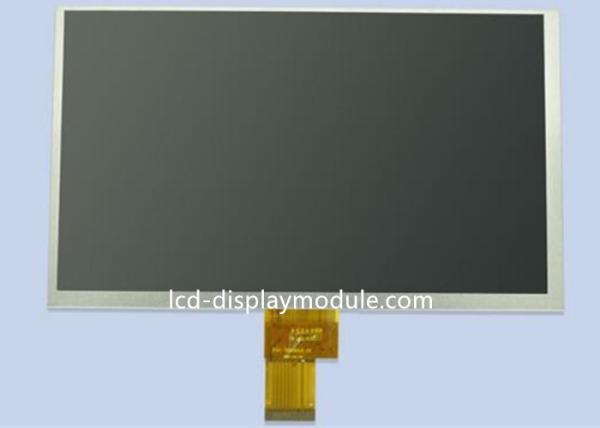

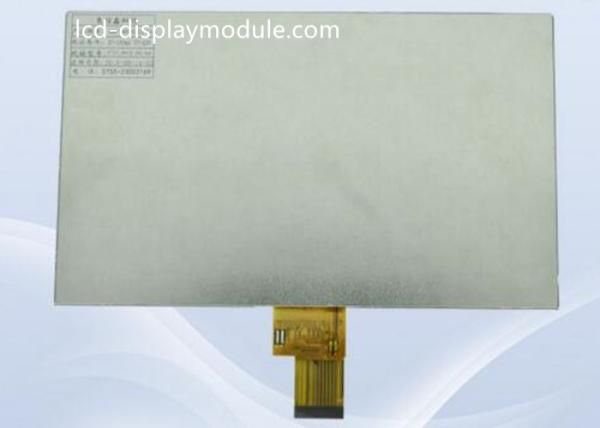

TFT 9'' 1024 * 600 High Resolution TFT LCD Screen 300cd/m2 Brightness​↵

TFT LCD Screen

Product Information

Display Type 9'' TFT LCD Screen with High Resolution
Resolution 1024*600
Active area 196.61X114.15 mm
IC package
 COG
IC or equivalent
 EK79001AG+EK73215BCGA
Interface LVDS
Touch panel optional Yes
Viewing direction 6:00
LED backlight color
 White
Power supply(typ) 3.3V
Backlight current (typ) side, white Led(27PCS)
Operating temp
 -20ºc~70ºc
Storage temperature -30ºc~80ºc
Brightness 450cd/m2
If accept customized Yes
RoHS compliance Yes

Our advantages


1) Small quantity accepted
2) Competitive price and short lead-time and best service
3) ROHS/ ISO 14001 and other related certificates are available
4) Reply the mail within 24 hours

​Application

Autoelectronics, 3D&Shutter, Meters & Instrument, Telecommunication,

Domestic electrical appliance(Household appliance), Fuel dispensers,

Office equipment, Medical &health equipment, Business related facility, Education electronics, etc.

Product Drawing

​

High Resolution 1024 * 600 Customized TFT LCD 300cd / m2 Brightness White Backlight
