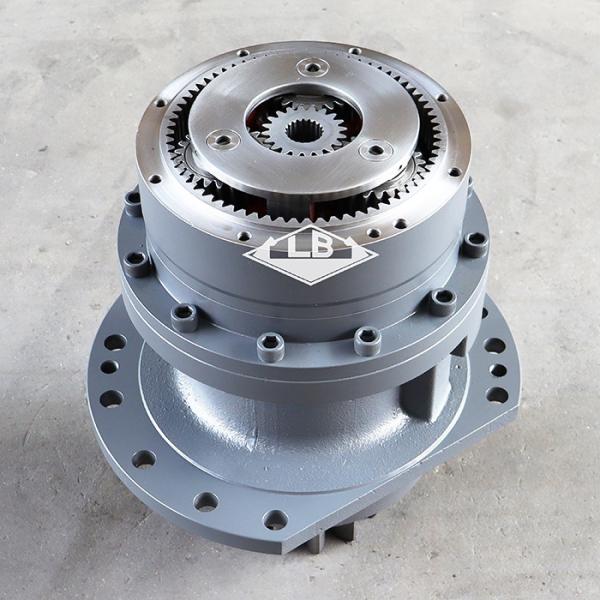

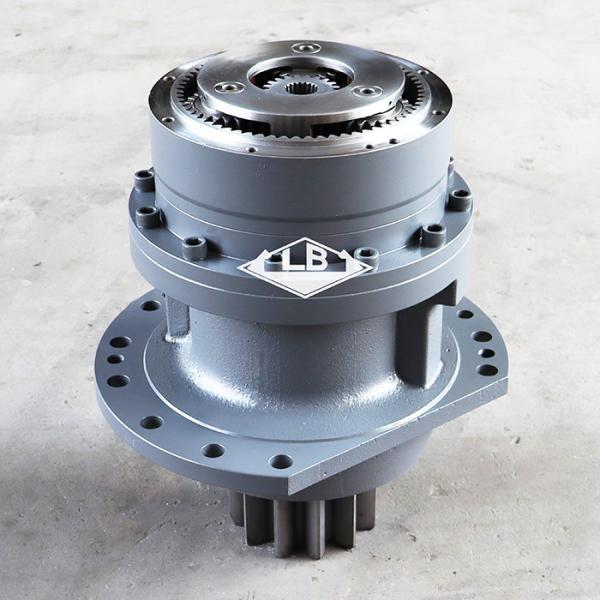

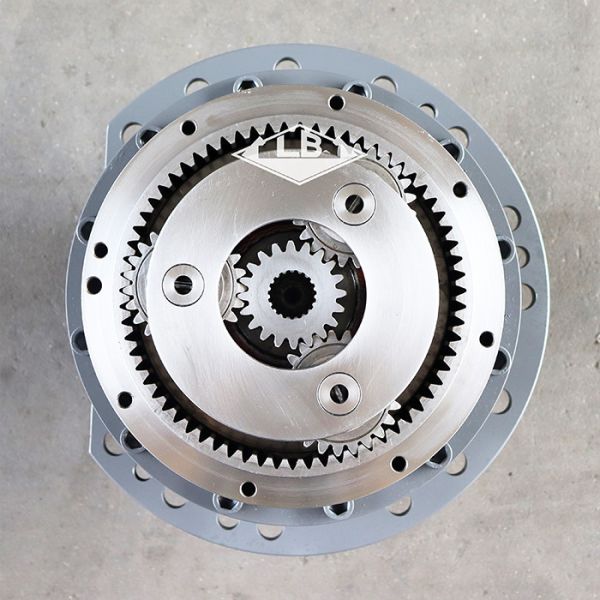

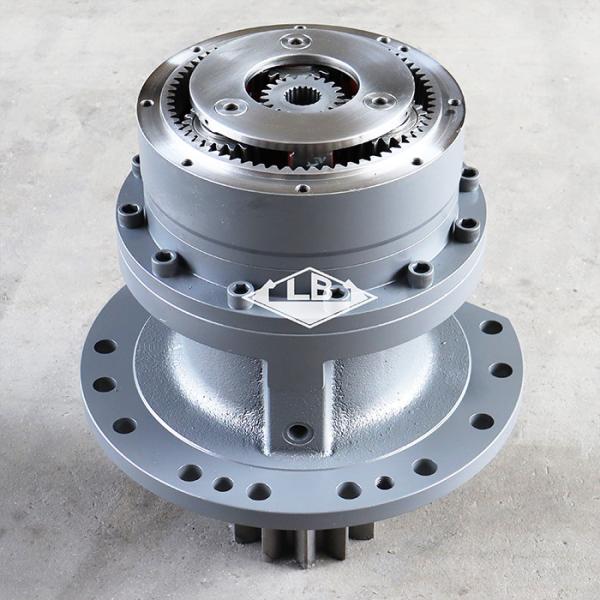

ZX470-5G SWING DEVICE 9300512 SWING REDUCER ZX470-5G swing gearbox
ZX470-5G SWING DEVICE 9300512 SWING REDUCER ZX470-5G swing gearbox
ZX470-5G SWING DEVICE 9300512 SWING REDUCER ZX470-5G swing gearbox
ZX470-5G SWING DEVICE 9300512 SWING REDUCER ZX470-5G swing gearbox
ZX470-5G SWING DEVICE 9300512 SWING REDUCER ZX470-5G swing gearbox
ZX470-5G SWING DEVICE 9300512 SWING REDUCER ZX470-5G swing gearbox
ZX470-5G SWING DEVICE 9300512 SWING REDUCER ZX470-5G swing gearbox
ZX470-5G SWING DEVICE 9300512 SWING REDUCER ZX470-5G swing gearbox
Specifications
Description
PRODUCT PARAMETERS
Part name
 ZX470-5G swing gearbox
Equipment Apply to HITACHI EXCAVATOR
Part no. 9300512
NO.1 sun gear spline teeth 19 splines
Swing pinion shaft teeth 12T
Item condition New
Logo LB
Gross weight 205 KG
MOQ 1 pc


Product Descriptio

ZX470-5G SWING DEVICE 9300512 SWING REDUCER ZX470-5G swing gearboxZX470-5G SWING DEVICE 9300512 SWING REDUCER ZX470-5G swing gearboxZX470-5G SWING DEVICE 9300512 SWING REDUCER ZX470-5G swing gearbox

Parts on group SWING DEVICE:

Pos. Part No Qty Parts name Comments
00-46. 9300512 [1] SWING DEVICE
00-46. 9300512 [1] SWING DEVICE
00. 1036082 [1] HOUSING
00. 1036082 [1] HOUSING
01. 2043694 [1] SHAFT;PROP.
01. 2043694 [1] SHAFT;PROP.
04. 3085412 [1] SLEEVE
04. 3085412 [1] SLEEVE
05. A811120 [1] O-RING
05. A811120 [1] O-RING
06. 4402481 [1] BRG.;ROL.
06. 4402481 [1] BRG.;ROL.
09. 3099830 [1] NUT
09. 3099830 [1] NUT
10. 4474191 [1] PLATE;LOCK
10. 4474191 [1] PLATE;LOCK
11. J901016 [2] BOLT
11. J901016 [2] BOLT
12. 4667150 [1] BRG.;ROL.
12. 4667150 [1] BRG.;ROL.
13. 4422691 [1] SEAL;OIL
13. 4422691 [1] SEAL;OIL
15. 1034189 [1] CARRIER
15. 1034189 [1] CARRIER
16. 4187590 [1] PLATE;THRUST
16. 4187590 [1] PLATE;THRUST
17. 3099815 [3] GEAR;PLANETARY
17. 3099815 [3] GEAR;PLANETARY
18. 4336929 [3] PLATE;THRUST
18. 4336929 [3] PLATE;THRUST
20. 4027427 [3] PIN;SPRING
20. 4027427 [3] PIN;SPRING
21. 4713899 [6] BRG.;NEEDLE
21. 4713899 [6] BRG.;NEEDLE
22. 3099795 [1] GEAR;SUN
22. 3099795 [1] GEAR;SUN
23. 4488904 [3] PIN
23. 4488904 [3] PIN
26. 1032548 [1] GEAR;RING
26. 1032548 [1] GEAR;RING
27. M341645 [12] BOLT;SOCKET
27. M341645 [12] BOLT;SOCKET
30. 1031817 [1] CARRIER
30. 1031817 [1] CARRIER
32. 4403371 [1] PLATE;THRUST
32. 4403371 [1] PLATE;THRUST
33. 3102045 [3] GEAR;PLANETARY
33. 3102045 [3] GEAR;PLANETARY
34. 4404506 [3] BRG.;NEEDLE
34. 4404506 [3] BRG.;NEEDLE
35. 4403082 [3] PLATE;THRUST
35. 4403082 [3] PLATE;THRUST
37. 4051262 [3] PIN;SPRING
37. 4051262 [3] PIN;SPRING
39. 3115868 [1] GEAR;SUN
39. 3115868 [1] GEAR;SUN
40. 4336923 [3] PIN
40. 4336923 [3] PIN
42. 4194712 [1] COCK
42. 4194712 [1] COCK
43. 94-2024 [1] PLUG
43. 94-2024 [1] PLUG
44. 4422479 [4] MAGNET
44. 4422479 [4] MAGNET
45. M470513 [4] SCREW
45. M470513 [4] SCREW
46. 431578 [2] CORK
46. 431578 [2] CORK
