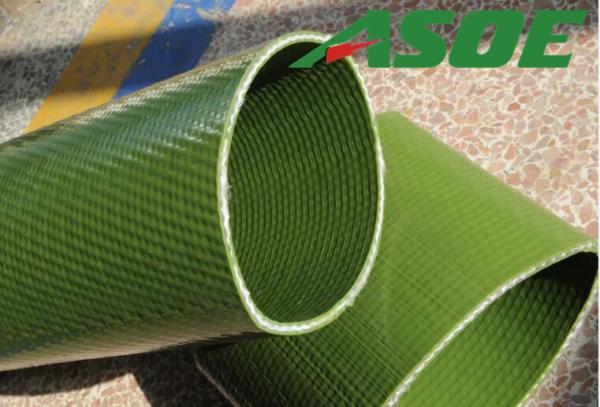

Polyurethane Oil Transfer Hose For Fuel Transportation Heavy Duty 6×200Ft
Polyurethane Oil Transfer Hose For Fuel Transportation Heavy Duty 6×200Ft
Specifications
Brand Name :
ASOE
Model Number :
Oilvey 20
Certification :
ISO
Place of Origin :
China
MOQ :
10cm
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000m per week
Delivery Time :
depends on your order quantity
Packaging Details :
Standard Export Package
Product Name :
TPU layflat hose for Oil transfer
Raw Material :
Polyurethane
Specification :
6"
Working Pressure :
28Bar
Standard Color :
Green, others
Standard Length :
50,100, 660,990ft etc
Description

Polyurethane Oil Transfer Hose For Fuel Transportation Heavy Duty 6

Layflat PU Hose with Copper Anti-static Wire for Oil or Fuel Transferring Through the Weave Heavy Duty 6"×200Ft

♦ Oilvey 20 is made from extruded thermoplastic polyether based polyurethane (TPU) with excellent wear & tear properties.

♦ The reinforcement is made from circular woven filament polyester yarn. The "extrusion through-the-weave" production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.

♦ Incorporated copper wire is used to transfer static electricity.

Inner tube and cover: Smooth PU cover and tube.

Reinforcement: Circular woven polyester jacket with static wire incorporated

Operating Temperature Range: From -60° F to 176° F (-50° C to 80° C)

Standard Color: Green, other colors available per request

Standard Length: 50ft, 100ft, 330ft/100m, 660ft/200m; other lengths available per request

Couplings: Steel HPHC FM couplings, etc.

Warranty: Ten years guarantee

Structure

A Outside Polyurethane Cover

B Reinforcement Jacket

C Inside Polyurethane Tube

D Copper Wire

Polyurethane Oil Transfer Hose For Fuel Transportation Heavy Duty 6
Polyurethane Oil Transfer Hose For Fuel Transportation Heavy Duty 6
Oilvey™20 PU Layflat Hoses
ID
Wall Thickness
Weight

Working Pressre
Bursting Pressure
Inch
mm
Inch
mm
lbs/ft
kg/m
PSI
Bar
PSI
Bar
6
153+2.5
0.23
5.9
2.26
3.37
400
28
1200
84

Polyurethane Oil Transfer Hose For Fuel Transportation Heavy Duty 6

► Temporarily oil or fuel transfer solutions

► Produced Water Transfer Solutions

► Frac water transfer in mountain area
