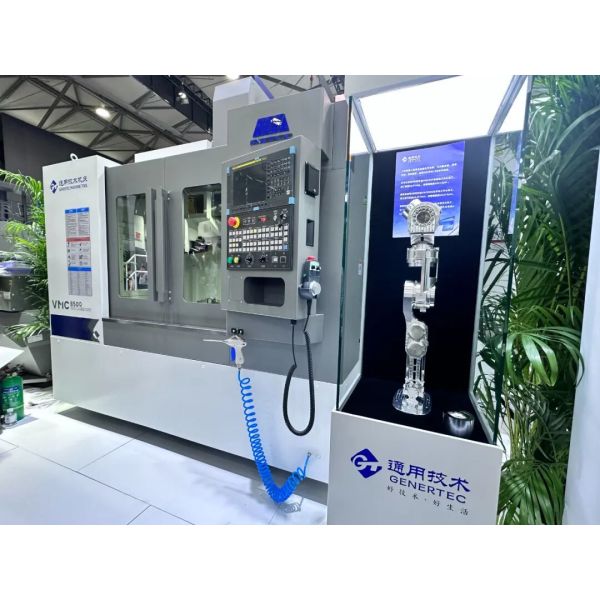

SMTCL 10000rpm FANUC High Precision VMC850Q Vertical Machining Center CNC Milling Machine
SMTCL 10000rpm FANUC High Precision VMC850Q Vertical Machining Center CNC Milling Machine
SMTCL 10000rpm FANUC High Precision VMC850Q Vertical Machining Center CNC Milling Machine
SMTCL 10000rpm FANUC High Precision VMC850Q Vertical Machining Center CNC Milling Machine
SMTCL 10000rpm FANUC High Precision VMC850Q Vertical Machining Center CNC Milling Machine
SMTCL 10000rpm FANUC High Precision VMC850Q Vertical Machining Center CNC Milling Machine
SMTCL 10000rpm FANUC High Precision VMC850Q Vertical Machining Center CNC Milling Machine
SMTCL 10000rpm FANUC High Precision VMC850Q Vertical Machining Center CNC Milling Machine
SMTCL 10000rpm FANUC High Precision VMC850Q Vertical Machining Center CNC Milling Machine
SMTCL 10000rpm FANUC High Precision VMC850Q Vertical Machining Center CNC Milling Machine
Specifications
Brand Name :
SMTCL/SYMG
Spindle Motor Power(kW): :
7.5/11
Tool Magazine Capacity: :
24
Table size (L×W) :
1000x500mm
Modle: :
VMC850Q
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
50 sets per month
Packaging Details :
The wooden case，Tin trunk ,Other seaworthy packing
CNC Control System: :
FANUC, Siemens
Z Axis travel :
540mm
Model Number :
VMC850Q-A
X Axis travel :
850mm
MOQ :
1 Set
Delivery Time :
45-60 days
Brand: :
SMTCL
Place of Origin :
China
Certification :
ISO certification
Feed Speed(mm/min): :
1 - 10000 mm/min
Y Axis travel :
550mm
Description

SMTCL 10000rpm FANUC High Precision VMC850Q Vertical Machining Center CNC Milling Machine

SMTCL High Precision 10000rpm FANUC VMC850Q Vertical Machining Center CNC Milling Machine

Compact structure, high processing efficiency, well suited for multi-variety component manufacturing

Product advantages:

  1. High rigidity and high seismic resistance design; re-arrangement of internal rib structures in the bed, slide, and column
  2. Ultra-precision processing: micrometer-level interpolation performance, surface precision milling Ra value within 0.6um, needle-type parts diameter 0.08mm
  3. Larger processing stroke, Y-axis stroke increased to 550mm, suitable for processing more parts
  4. Imported roller guides, screws, bearings, Taiwan spindle and Taiwan tool magazine
  5. Fully enclosed tool magazine, suitable for processing parts of various materials, reducing maintenance frequency
  6. Higher cavity height of the bed and increased water tank capacity
  7. Optional high-performance electric spindle, optical encoder, spindle cooling (oil cooling/water cooling machine), etc.
  8. Reserved automation interfaces, strong automation integration advantages
  9. Professional simulation design, full-dimensional scientific optimization, and further verified by advanced manufacturing processes and strict testing system, achieving extraordinary processing quality, excellent cutting performance fully released, perfectly adapted to various parts

SMTCL 10000rpm FANUC High Precision VMC850Q Vertical Machining Center CNC Milling Machine

Product performance:

  • High rigidity:
    Large-span zigzag column;
    thermally symmetrical main spindle box;
    three-axis P-grade roller guideways

  • High dynamic response:
    Spindle speed 10,000 rpm;
    three-axis rapid movement 48/min;
    error compensation technology

  • High performance:
    Intelligent power disc;
    quantified process standards;
    machining accuracy IT6 grade

Feature 1: Stable & reliable - Comprehensive testing, consistent performance through comparative testing
7 sets of batch performance testing equipment, 7 sets of cutting testing equipment
22 performance test items and 25 cutting test items per equipment

SMTCL 10000rpm FANUC High Precision VMC850Q Vertical Machining Center CNC Milling Machine

Third-party evaluation: Leading performance level

SMTCL 10000rpm FANUC High Precision VMC850Q Vertical Machining Center CNC Milling Machine

Feature 2:High-quality machining capability - High precision, tool joint mark control technology; high surface finish, roughness Ra 0.8 μm
Part name: Tool joint mark test piece
Industry: New energy vehicles, robotics; material (AL6061)
Part dimensions: 200×150×20mm
Process difficulties:
* Tool joint marks on part surface
* Tests machine spindle and machining stability
* Surface quality requirements

SMTCL 10000rpm FANUC High Precision VMC850Q Vertical Machining Center CNC Milling Machine

Feature 3:Ultra-micro precision machining capability - High stability, φ0.08mm fine needle machining
Part name: D0.2mm engraving machining
Industry: Semiconductor, medical, etc.; material: AL7075
Part dimensions: φ40×30mm
Process difficulties:
* Weak rigidity of machining position, prone to deformation
* Tests machine tool feed control and stability
* Precise control of tool runout and tool setting
* Surface burr removal technology

SMTCL 10000rpm FANUC High Precision VMC850Q Vertical Machining Center CNC Milling Machine

SMTCL 10000rpm FANUC High Precision VMC850Q Vertical Machining Center CNC Milling Machine

Key industries:

  1. Pump motor industry: Valve body
  2. Automotive industry: Cylinder head cover
  3. Reducer: Secondary planetary gear shaft

SMTCL 10000rpm FANUC High Precision VMC850Q Vertical Machining Center CNC Milling Machine


Product Paramenters:

Item Unit VMC850Q
Worktable Table size (L*W) mm 1000*500

Max load on the table kg 600
Capacity X axis travel mm 850
Y axis travel mm 550
Z axis travel mm 540
Spindle nose to table surface mm 120-660
Spindle Spindle speed rpm 10000
Spindle taper/spindle shank mm 7/24 taper
BT40
Spindle motor kw 7.5/11
Maximum output torque N.m 35.8/70
Spindle drive type
Synchronous tooth belt
Feed rate X,Y,Z rapid traverse M/min 48/48/48
Max cutting feed rate M/min 20
Accuracy Positioning accuracy X/Y/Z mm 0.008/0.006/0.006
Repeatability positioning X/Y/Z mm 0.005/0.004/0.004
Tool storage capacity pc Arm type 24
Max tool diameter mm 150(80)
Turret Max tool length mm 250
Tool change time(T-T) sec 2.5
Others Overall dimensions(L*WxH) mm 2400*3125*2840
Net machine weight kg 5100
Total power requirment KVA 18
Standard configuration: FANUC numerical control system, 10,000 rpm spindle, BT40-24 disc tool magazine, water tank + bed double helical chip removal system:
Selective configuration: Chain-type chip remover, four-axis turntable, water outlet at the center of the spindle, automatic door
