SMTCL HTC30Q Horizontal CNC Lathe | Compact High-Efficiency Turning Machine
SMTCL HTC30Q Horizontal CNC Lathe | Compact High-Efficiency Turning Machine
SMTCL HTC30Q Horizontal CNC Lathe | Compact High-Efficiency Turning Machine
SMTCL HTC30Q Horizontal CNC Lathe | Compact High-Efficiency Turning Machine
SMTCL HTC30Q Horizontal CNC Lathe | Compact High-Efficiency Turning Machine
SMTCL HTC30Q Horizontal CNC Lathe | Compact High-Efficiency Turning Machine
Specifications
Brand Name :
SMTCL/SYMG
Model Number :
HTC30Q
Certification :
ISO certification
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
50 sets per month
Delivery Time :
45-60 days
Packaging Details :
The wooden case，Tin trunk ,Other seaworthy packing
Brand: :
SMTCL
Modle: :
HTC30Q
CNC Control System: :
GSK25Ti
Max.cutting dia. :
Φ300
Maximum cutting length :
500
X Axis travel :
160mm
Z Axis travel :
550mm
Spindle Speed :
4500
Spindle Motor Power(kW): :
11/15
Tool turret form :
8-station horizontal servo turret
Description

SMTCL HTC30Q Horizontal CNC Lathe | Compact High-Efficiency Turning Machine

SMTCL HTC30Q Horizontal CNC Lathe | Compact High-Efficiency Turning Machine

Product advantages:

  • Optimize product layout with extremely small floor space.
  • Main shaft with large bearings, meeting high rigidity and high torque requirements. It can be equipped with electric spindle for stable processing.
  • Large box-type tool rest with extremely strong cutting rigidity.
  • The entire machine is designed for thermal balance, ensuring high processing accuracy.
  • Use imported guide rails and lead screws, as well as chuck oil cylinders.
  • Can be equipped with an automated processing unit, with very low labor costs.

Product performance:

  1. High Precision:

    Unique feed mechanism
    High-precision C3 grade ball screw
    Overall thermal stability structure of the machine

  2. High Efficiency:

    High spindle speed
    High and fast movement speed of both axes
    Efficient servo turret

  3. High Performance:

    Small floor area
    Quantitative process standards
    Strict inspection standards

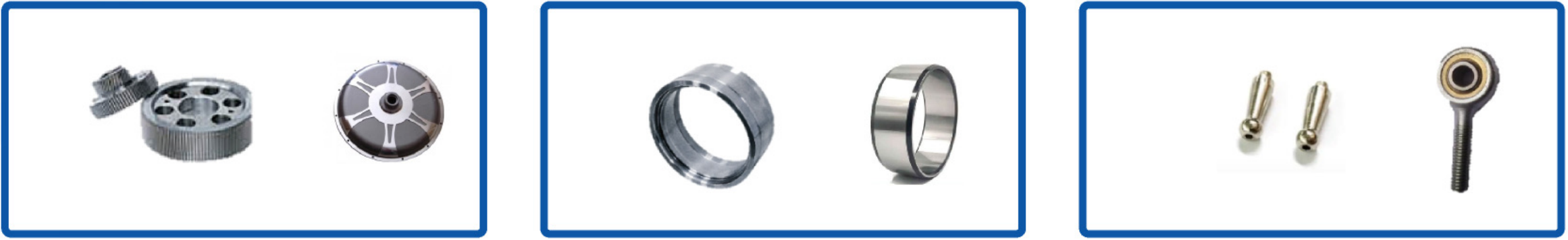

Key industries:

  1. Automotive industry: Gears, end caps
  2. Bearing industry: Outer ring, inner ring
  3. General industry: Ball head, housing

SMTCL HTC30Q Horizontal CNC Lathe | Compact High-Efficiency Turning Machine

Product Paramenters:

Items Units HTC 30Q
Max.cutting dia. mm Φ300
Maximum cutting length mm 500
Max.swing dia. over bed mm Φ420
Max.swing dia.over bed gap mm Φ280
Spindle

Spindle nose model - A2-6
Front bearing inner dia. mm 100
Spindle taper and hole size
1:20;Φ70
Dia. of spindle hole Max. mm Φ65
Max.bar dia. mm Φ50
Standard chuck dia. inch 8"
Spindle speed range r/min 4500
Spindle max.torque N.m 180(576r/min)
Rated spindle torque N.m 110(769r/min)
Main motor output power continuous/30 min. kW 11/15
X/Z axis

X-axis rapid traverse speed mm 30
Z-axis rapid traverse speed mm 30
X-axis travel mm 160
Z-axis travel mm 560
Tailstock

Tailstock travel mm 300
Tailstock drive method
Saddle drag
Tailstock sleeve travel mm 100
Tailstock sleeve dia. mm Φ100
Tailstock taper hole taper
MT- 5
Tool turret

Tool turret form
8-station horizontal servo turret
Center height mm 80
Repositioning accuracy of tool holder transposition Sec. ±1.6
If could choose tool nearby mm yes
Others

Distance between spindle center and floor mm 936
Machine weight kg 3500
Total power supply capacity KVA 23
Overall dimensions(LxWxH) mm 2295*1680*1650
Standard configuration:

GSK25Ti CNC Control System,Imported Linear Guides & Ball Screws,

High-Quality Sleeve Spindle Unit,Center Height 80mm 8-Station Servo Turret,Hydraulic Tailstock,Imported 8" Hollow Hydraulic Chuck & Cylinder,

Chip Box
Optional configuration: 12-station servo turret,Side chip conveyor,Rear chip conveyor
