VL850 Cnc Vertical Machining Center High Precision 3 Axis VMC Machine
VL850 Cnc Vertical Machining Center High Precision 3 Axis VMC Machine
VL850 Cnc Vertical Machining Center High Precision 3 Axis VMC Machine
VL850 Cnc Vertical Machining Center High Precision 3 Axis VMC Machine
VL850 Cnc Vertical Machining Center High Precision 3 Axis VMC Machine
VL850 Cnc Vertical Machining Center High Precision 3 Axis VMC Machine
Specifications
Place of Origin :
China
Certification :
CE ISO
Packaging Details :
Package suitable for long distance sea freight
Supply Ability :
800 Set/Sets per Year
Price :
Negotiable
Model Number :
VL850
MOQ :
1 Set
Delivery Time :
30-45 days
Product name :
VL850 vmc 3 axis cnc vertical machining center
Table Size (mm) :
1000*500
Table Travel (X/Y/Z) (mm) :
850/500/550
Positioning Accuracy (mm) :
0.008
Repeatability (X/Y/Z) (mm) :
0.005
spindle nose to worktable :
150-700mm
spindle center to column :
550mm
max load on table :
800kg
T-slot :
18*5*100
Spindle speed :
8000/12000rpm
Description

VL850 advanced high Speed and High Precision vmc 3 axis cnc vertical machining center price 4 axis cnc milling machine

Product Introduction

VL Series -High Speed and High Precision Machining Center

  • Standard configuration of import control systems and servos such as Fanuc, Mitsubishi and Siemens to provide overall solutions for high-speed and high-precision processing users.

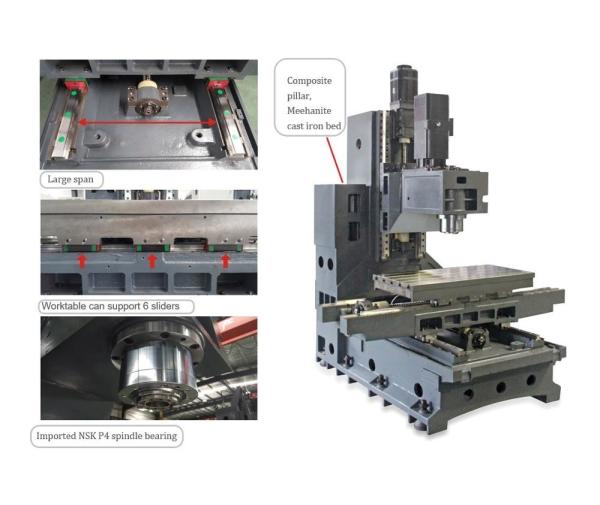

  • The main castings of high strength fuselage and composite pillar are made of high-grade Meehanite cast iron. After this twice agingtreatment, they are stable and deformed for a long time.
  • The standard THK or HIWIN high precision screw rods , PMI linear guide rail and NSK or FAG bearing are assembled with high precision. The repeated positioning accuracy is 0.005mm and the positioning accuracy is 0.008mm.
  • The spindle is equipped with 8000rpm, 12000 rpm for high-speed spindle and 24000 rpm for motorized spindle, and high-precision grating with positioning accuracy of 0.004.
  • Controlling thermal deformation: selecting and matching measures to prevent thermal deformation, such as spindle oil cooling, screw water cooling, electric cabinet temperature control, etc.VL850 Cnc Vertical Machining Center High Precision 3 Axis VMC Machine

Product advantages

VL850 Cnc Vertical Machining Center High Precision 3 Axis VMC Machine

Taiwan HIWIN ball screw, the diameter is 40mmVL850 Cnc Vertical Machining Center High Precision 3 Axis VMC Machine

Taiwan PMI linear guide rail X/Y/Z 35mm/45mm/45mm

VL850 Cnc Vertical Machining Center High Precision 3 Axis VMC Machine

Taiwan OKADA 24T tool holder

VL850 Cnc Vertical Machining Center High Precision 3 Axis VMC Machine

Machine Parameters

Model No. VL850 VL1100
Capacity X axis travel mm 850 1100
Y axis travel mm 500 600
Z axis travel mm 550 550
Spindle nose to table surface mm 150-700 150-700
Spindle nose to column surface mm 550 650
Worktable Table size (L×W) mm 1000×500 1200×600
Max load on the table kg 800 1000
T-slot size mm 18×5×100 18×5×100
Spindle Spindle speed rpm 8000(Synchronous belt)/12000(OPTdirect connection) 8000(Synchronous belt)/12000(OPTdirect connection)
Spindle taper/spindle shank mm 7/24 taper 7/24 taper
BT40 BT40
Spindle motor kw 7.5/11 11/15
Feed rate X,Y,Z rapid traverse M/min 36/36/24 36/36/24
Max cutting feed rate M/min 10 10
A.T.C Tool storage capacity pc Arm type 24 Arm type 24
Max tool diameter mm 150(80) 150(80)
Max tool length mm 250 250
Tool change time(T-T) sec 2.5 2.5
Accuracy Positioning accuracy mm 0.008 0.008
Repeatability positioning mm 0.005 0.005
Machine size Machine height mm 2610 2610
Space requirment(L×W) mm 2450×2230 2750×2300
Net machine weight kg 5800 7000
Power requirment KVA 10 12
Finished Parts

VL850 Cnc Vertical Machining Center High Precision 3 Axis VMC MachineVL850 Cnc Vertical Machining Center High Precision 3 Axis VMC Machine
