Specifications
Brand Name :
SYMG
Model Number :
HTC63n Series45°Bed
Certification :
ISO certification
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
45 sets per month
Delivery Time :
30-45 days
Packaging Details :
The wooden case，Tin trunk ,Other seaworthy packing
Product name :
HTC50Q/H
Maximum cutting diameter： :
500/550 mm
Maximun cutting length： :
500/1000/1500/2000/2500mm
Maximum diameter of swing over bed： :
∅650
Maximum turning diameter on the slide： :
∅500
Spindle hole diameter： :
90 mm
Maximum diameter of through bar ： :
80/104 mm
Spindle speed range ： :
50-3500r/min
Standard chuck diameter： :
10"
Standard tool turret type： :
12 stations horizontal tool turret
Description

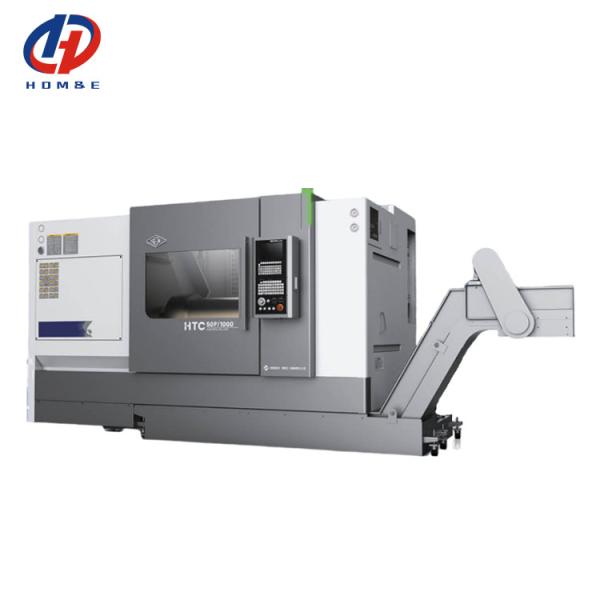

Universal CNC Horizontal Lathe HTC50Q High Torque Spindle SMTCL Heavy Slant Bed CNC Lathe

Product Description
SMTCL Universal CNC Horizontal Lathe HTC50Q High Torque Spindle Heavy Slant Bed CNC Lathe
The new generation HTC-Q/H/S cnc lathe, analysis and optimization are carried out through professional design and software, and assembly and verification are carried out with advanced manufacturing and testing technology.
HTC50Q/H/S rolling rail and hard rail structures can meet different working conditions, suitable for needs of automobiles, engineering machinery and other industries.
Product Features
1,High precision
◆ High-precision screw and guide rail
◆ High-precision spindle bearings
◆ Quantification of process standards
◆ High-precision grating ruler
2,High efficiency
System modular code application
◆ Complete functional conf iguration, enabling
intelli gent production
◆ High-efficiency se rvo turret
◆ High-performance,heavy-duty cutting spindle
3,High rigidity
◆ High-quality cast iron bed, etc.
◆ Key castings: long-span bedside box
◆ High power and high torque spindle
◆ High rigidity tool turret
Product Details
Universal CNC Horizontal Lathe HTC50Q High Torque Spindle SMTCL Heavy Slant Bed CNC Lathe

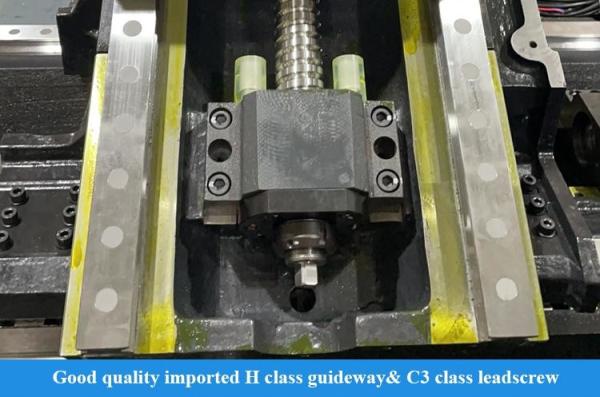

High-precision screws and guide rails

It uses high-quality imported C3-grade screws and H-grade guide rails, and is directly driven by servo motors to achieve excellent operating accuracy
Universal CNC Horizontal Lathe HTC50Q High Torque Spindle SMTCL Heavy Slant Bed CNC Lathe

High-precision spindle cylindrical roller bearings

It adopts high-quality imported P4 grade cylindrical roller bearings and cooperates with high-precision spindle to achieve excellent rotation accuracy.
Universal CNC Horizontal Lathe HTC50Q High Torque Spindle SMTCL Heavy Slant Bed CNC Lathe

High speed two axis

The two axis use imported screws and use pre-stretching technology to ensure fast and stable operation of the machine tool
Universal CNC Horizontal Lathe HTC50Q High Torque Spindle SMTCL Heavy Slant Bed CNC Lathe
Complete functional configuration, enabling
intelligent production
Different module configurations such as steady rest, sub-spindle, servo tailstock, and Y-axis can
be optional according to different workpiece requirements. It can realize multi-sequence processing of workpieces, and can also beequipped with workpiece measurement, tool
setter, automation modules, etc., to improve work efficiency.
Universal CNC Horizontal Lathe HTC50Q High Torque Spindle SMTCL Heavy Slant Bed CNC Lathe

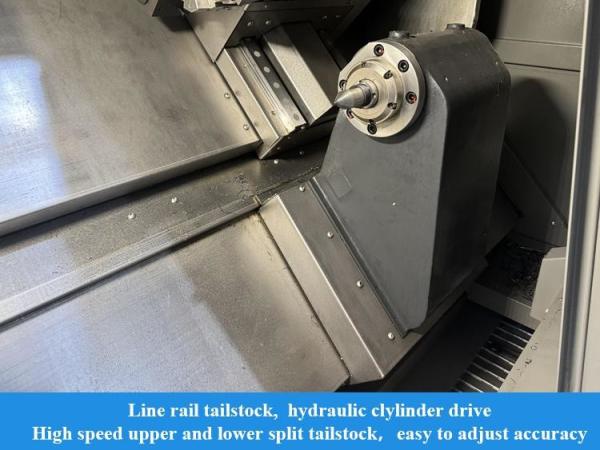

Small spindle tailstock
It is equipped with a small spindle structure tailstock, and internally installed tapered roller
bearings and angular contact ball bearings to improve the cutting rigidity of the tailstock end and ensure the cutting effect of long-axis parts.
Universal CNC Horizontal Lathe HTC50Q High Torque Spindle SMTCL Heavy Slant Bed CNC Lathe
High rigidity bed
The bed is a 45° inclined bed, with an optimized and reinforced rib structure inside. It is cast in one piece with high-quality castings, and the entire axis adopts a hard rail structure, which effectively improves dynamic stiffness. The joint between the bed and the headstock is scraped and ground by a double-rest surface, which further improves the cutting rigidity of the whole machine.
Universal CNC Horizontal Lathe HTC50Q High Torque Spindle SMTCL Heavy Slant Bed CNC Lathe

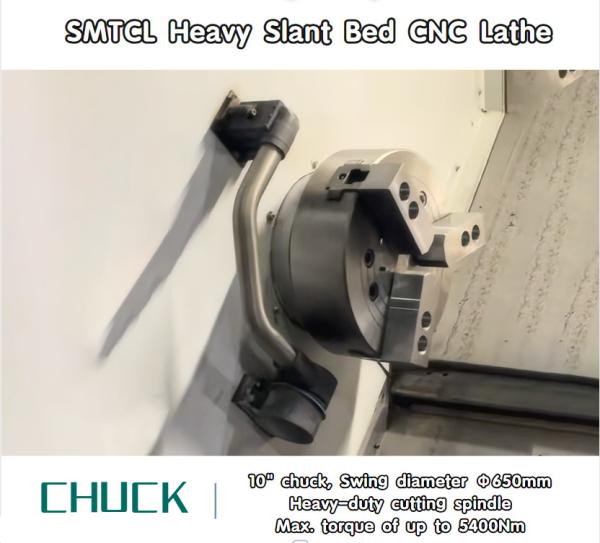

High-performance, heavy-duty cutting spindle The high-power motor is paired with a heavy -duty cutting spindle, with a maximum torque
of up to 5400Nm and a cutting depth of more than 10mm on one side, improving cutting efficiency.
Industry application

Universal CNC Horizontal Lathe HTC50Q High Torque Spindle SMTCL Heavy Slant Bed CNC Lathe

Product Paramenters
Items
Units
HTC 50H
HTC 50H
Max.cutting dia.(shaft/disk)
mm
Φ500/Φ550
Φ500/Φ550
Maximum cutting length
mm
500/1000/1500/2000/2500
500/1000/1500/2000/2500
Max.swing dia. over bed
mm
Φ650
Φ650
Max.swing dia.over bed gap
mm
Φ500
Φ500
Spindle
Spindle nose model
-
A2-8
A2-11
Front bearing inner dia.
mm
Φ120
Φ160
Spindle taper and hole size
1:20;Φ90
1:20;Φ120
Dia. of spindle hole Max.
mm
Φ80
Φ104
Max.bar dia.
mm
Φ65
Φ85
Standard chuck dia.
inch
10"
12"
Spindle speed range
r/min
50-3500
35-3000
Spindle max.torque
Nm
343
890
Spindle speed series
First gear
First gear
Main motor output power continuous/30 min.
kW
22/30
22/30
X/Z axis
X-axis rapid traverse speed
mm
20
20
Z-axis rapid traverse speed
mm
20
20
X-axis travel
mm
285
285
Z-axis travel
mm
510/1010/1510/2010/2510
510/1010/1510/2010/2510
Tailstock
Tailstock travel
mm
300/800/1300/1800/2300
300/800/1300/1800/2300
Tailstock drive method
Saddle drag
Saddle drag
Tailstock sleeve travel
mm
150
150
Tailstock sleeve dia.
mm
Φ120
Φ120
Tailstock taper hole taper
Morse 5#
Morse 5#
Tool turret
Tool turret form
12-station horizontal servo turret
12-station horizontal servo turret
Center height
mm
100
100
Tool size
mm
25×25
25×25
If could choose tool nearby
mm
yes
yes
Maximum load capacity
Disc workpieces
kg
300
500
Shaft workpieces
kg
800
1300
Others
Distance between spindle center and floor
mm
1050
1050
Machine weight
kg
5500/7000/8500/10000/11500
5500/7000/8500/10000/11500
Standard configuration:
FANUC 0i–TF plus
12-station tool carriage
Solid chuck oil cylinder
Standard configuration:
Hydraulic center frame
Servo sub-spindle
Pneumatic door
Tool setting gauge
Workpiece measurement
Oil mist collector
Tool damage detection
Universal CNC Horizontal Lathe HTC50Q High Torque Spindle SMTCL Heavy Slant Bed CNC Lathe
High rigidity spindle
The large-span headstock component adopts
composite support of imported double-row cylindrical roller bearings and angular contact
ball bearings at the front and rear, which enhances the rigidity and torque of the spindle
and achieves excellent heavy-cutting effects of the spindle.
Universal CNC Horizontal Lathe HTC50Q High Torque Spindle SMTCL Heavy Slant Bed CNC Lathe
Efficient servo turret The high-efficiency servo motor is adopted to control the precise indexing of the cutterhead, ensuring that it maintains strong
processing capabilities and stable tool changing performance under high-speed operation. The fastest tool change at adjacent stations only takes 0.4s, which is fast and
has high processing efficiency.
