Specifications
Place of Origin :
China
Brand Name :
SMTCL
Model Number :
IT35L
Certification :
CE ISO
Packaging Details :
Wooden Standard Package suited for long sea shipment
Price :
Negotiable
MOQ :
1 Set
Supply Ability :
50 sets per month
Delivery Time :
30 days
Payment Terms :
D/P,L/C,T/T
Product name :
IT35L
Max. Length of Workpiece (mm) :
500
Max. Swing Diameter (mm) :
580
Max cutting diameter :
360mm
Max. Spindle Speed (r.p.m) :
4000
Turret Type :
8-station Tool Post
Spindle nose :
A2-6
Spindle hole diameter :
65mm

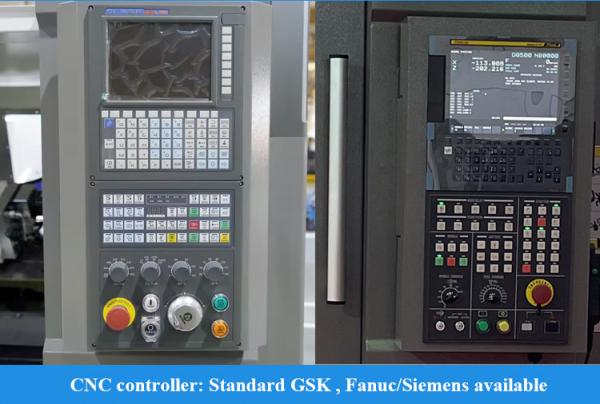

CNC Control System :
FANUC GSK optional
Chuck diameter :
8"
Description

Metal CNC Turning Lathe Machine IT35L BMT45 Horizontal 8 Station Servo Turret Slant Bed CNC Lathe

Product Description:

Metal CNC Turning Lathe Machine IT35L BMT45 Horizontal 8 Station Servo Turret Slant Bed CNC Lathe

IT series horizontal CNC lathe is suitable for processing all kinds of disk and short shaft parts, can turn the end face and the end groove, the outer circle and the inner hole thread, the groove and the rotary surface and other geometric features. Can meet the automotive, bearing, engineering machinery, non-ferrous metals and other industries for rotary parts of efficient, large quantities, high-precision processing requirements.

Product Features:

1,High Rigidity

♦ Finite element analysis to optimize the whole machine structure

♦ The bed is made of high quality castings with reasonable bar layout

♦ Configuration of large span, large torque spindle, improve cutting rigidity

♦ Precision scraping process, improve the connection rigidity

2,High efficiency
♦ Configuration servo tool holder, short transposition time, high tool change efficiency
♦ Two-axis servo motor drive, fast moving speed
♦ Large chip discharge port design, efficient chip discharge
♦ User-friendly design, easy operation and maintenance
3,High Stability
♦ Double support feed structure to achieve stable processing
♦ High quality guide screw, stable operation
♦ Integral tail platform, parts simplification, high stability
♦ Quantitative process indicators, strict inspection standards
Product Details:

Metal CNC Turning Lathe Machine IT35L BMT45 Horizontal 8 Station Servo Turret Slant Bed CNC Lathe

Industry application:

Metal CNC Turning Lathe Machine IT35L BMT45 Horizontal 8 Station Servo Turret Slant Bed CNC Lathe

Product Paramenters:
Item
unit
specification
iT35
iT35L
Maximum turning diameter
mm
Φ360
Maximum turning length
mm
350
500
Maximum swing over bed
mm
Φ580
Max swing over slide
mm
Φ360
Φ330
Spindle
spindle nose
A2-6
front bearing dia.
mm
100
spindle taper and hole size
1:20；Φ70
dis.of spindle hole
mm
Φ65
max dia. Of bar
mm
Φ50

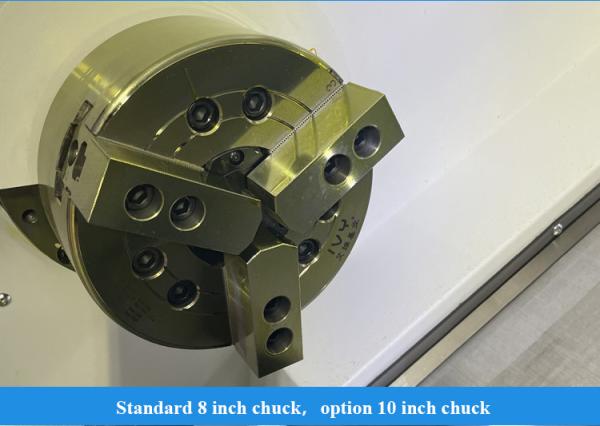

chuck size
inch
8
spindle speed
r/min
4000
spindle rated torque
Nm
157.5(666r/min)
max spindle torque
Nm
215(666r/min)
max motor output power continous/30min
kW
11/15
Feeding
X/Z rapid traverse
m/min
30
X/Z max speed
m/min
30
x axis travel
mm
200
z axis travel
mm
350
510

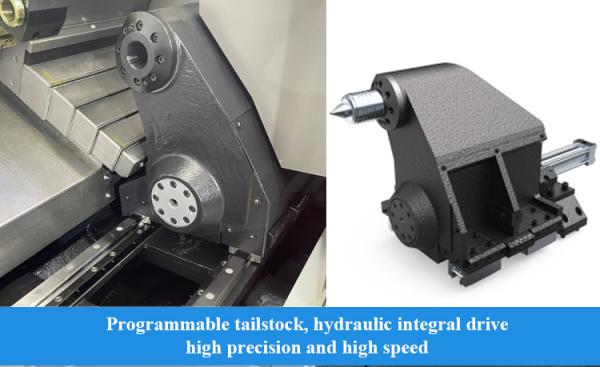

Tailstock
tailstock travel
mm
NO
400
drive type
NO
Cylinder drive
Maximum fast moving speed
m/min
NO
8
Minimum jacking workpiece length
mm
NO
120
tailstock taper
morse
NO
MT-5

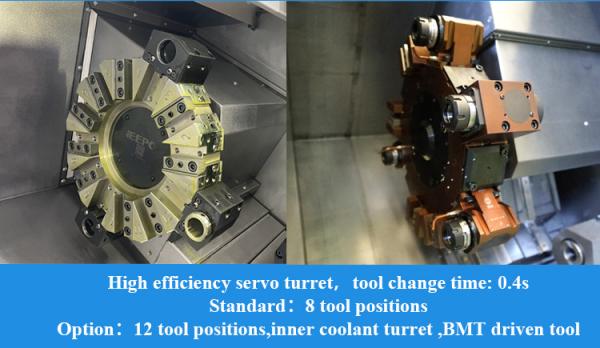

Turret
turret type
Horizontal 8 station servo turret
center height
mm
80
rotary positioning
Sec.
±1.6
Whether the cutter can select the tool nearby
yes
End tool holder
mm
25×25
Boring tool holder
mm
Φ40
Reducer sleeve
mm
Φ32
Cooling chip removal
Cooling pump pressure
bar
0.9
Cooling pump flow
L/min
40
Tank capacity
L
150
160
Chip extractor form
Right side chain plate
Loading
Disk-like parts
kg
150 Includes chuck and other accessories
Axial parts
kg
300 Includes chuck and other accessories
Other
The spindle center is high from the bottom of the bed
mm
108+0
weight
kg
3300
3600
power
kVA
27
overall dimensions
(L*W*H)
mm
2330×1675×1760
2550×1675×1760
Standard configuration:
1,GSK988TA controller
2,Solid chuck&cylinder Chinese brand
3,8 positions turret
4,Hydraulic station Chinese brand
5,Chip box
Selective configuration:
1,Side conveyor
2,Rear conveyor
3,Special chuck
4,Special cylinder
5,Special turret

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
