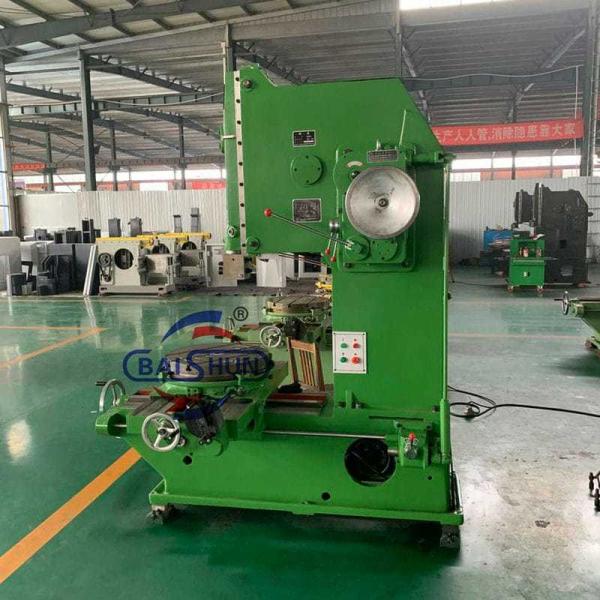

PLC Control Hydraulic Feed Vertical Slotting Machine with 200mm Max Slotting Length for Keyway and Metal Work
PLC Control Hydraulic Feed Vertical Slotting Machine with 200mm Max Slotting Length for Keyway and Metal Work
PLC Control Hydraulic Feed Vertical Slotting Machine with 200mm Max Slotting Length for Keyway and Metal Work
PLC Control Hydraulic Feed Vertical Slotting Machine with 200mm Max Slotting Length for Keyway and Metal Work
PLC Control Hydraulic Feed Vertical Slotting Machine with 200mm Max Slotting Length for Keyway and Metal Work
PLC Control Hydraulic Feed Vertical Slotting Machine with 200mm Max Slotting Length for Keyway and Metal Work
PLC Control Hydraulic Feed Vertical Slotting Machine with 200mm Max Slotting Length for Keyway and Metal Work
PLC Control Hydraulic Feed Vertical Slotting Machine with 200mm Max Slotting Length for Keyway and Metal Work
PLC Control Hydraulic Feed Vertical Slotting Machine with 200mm Max Slotting Length for Keyway and Metal Work
PLC Control Hydraulic Feed Vertical Slotting Machine with 200mm Max Slotting Length for Keyway and Metal Work
Specifications
Brand Name :
Baishun
Model Number :
B5020
Certification :
ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
100Set/Sets per Month
Delivery Time :
20 working days
Packaging Details :
Export standard wooden case package
Name :
Slotter Machine
Model :
B5020
Max.slotting length :
200mm
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Controller :
PLC
Voltage :
380v/50hz or as customer required
Warranty :
1 Year
Power (kW) :
4
Key words :
Slotter Machine
Description
Long Shaft Center Keyway Vertical Slotting Machine B5032 B5040 Slotter Machine for Sale
Product Overview

The Long Shaft Center Keyway Vertical Slotting Machine is designed for precision slotting operations with advanced hydraulic transmission and versatile feed capabilities.

Performance Characteristics
  • Three-direction feed system (longitudinal, horizontal, and rotary) enables multiple surface machining with single clamping
  • Hydraulic transmission for sliding pillow reciprocating motion and table feed operations
  • Consistent sliding pillow speed across all strokes with continuously adjustable ram and table movement
  • Comprehensive control system featuring hydraulic and manual feed, plus motor-driven fast movement in all directions
  • Superior hydraulic feed mechanism providing instantaneous feed during work return cycle
Applications
  • Interpolation plane machining and forming surface operations
  • Keyway slotting and inclined surface machining up to 10°
  • Ideal for single unit production and small batch manufacturing
Technical Specifications - B Series
Specification Unit B5020 B5032 B5040
Max. stroke of RAMmm220340400
Ram maximum slotting lengthmm200320500
Ram motion frequencytimes/min32.50.80.12520.32.50.8020.32.50.80
Ram tilt angle°0-80-80-8
Ram vertical adjustment distancemm230315315
Cutter head bearing surface to distance between forearm bedmm485600600
Table Diametermm500630630
Distance between lower end of sliding frame to work tablemm320490600
Max. longitudinal moving distance of working tablemm500630690
Max. transverse moving distance of working tablemm500560620
Table maximum rotation angle°360360560
Vertical and horizontal table power feed rangemm0.08-1.210.08-1.210.08-1.21
Table rotary feed rangemm0.052-0.7830.052-0.7830.052-0.783
Motor powerkw344
Motor speedr/min1430960960
Machine weightkg220030003700
Outline dimensionmm1916*1305*19952261*1495*22452290*1525*2485
Technical Specifications - BK Series
Item Unit BK5018 BK5030 BK5032 BK5040
Max. length of rammm180300320400
Ram adjustment strokemm80300315315
Number of ram movementsn/min30/12030~15020~8020~80
Working desk sizemm600*320550*405800*610800*610
X direction motor torqueN.M667.77.7
Z direction motor torqueN.M667.77.7
Main motor powerkw3.73.744
Machine weightkg2000280037003700
Package dimensionmm2200*2100*23002300*2200*23002800*2400*25002800*2400*2500
Machine Images
PLC Control Hydraulic Feed Vertical Slotting Machine with 200mm Max Slotting Length for Keyway and Metal Work PLC Control Hydraulic Feed Vertical Slotting Machine with 200mm Max Slotting Length for Keyway and Metal Work PLC Control Hydraulic Feed Vertical Slotting Machine with 200mm Max Slotting Length for Keyway and Metal Work PLC Control Hydraulic Feed Vertical Slotting Machine with 200mm Max Slotting Length for Keyway and Metal Work
