Modular On-Site Flange Lathe Quick Setup ID/OD Clamping Portable Machine
Modular On-Site Flange Lathe Quick Setup ID/OD Clamping Portable Machine
Modular On-Site Flange Lathe Quick Setup ID/OD Clamping Portable Machine
Modular On-Site Flange Lathe Quick Setup ID/OD Clamping Portable Machine
Modular On-Site Flange Lathe Quick Setup ID/OD Clamping Portable Machine
Modular On-Site Flange Lathe Quick Setup ID/OD Clamping Portable Machine
Modular On-Site Flange Lathe Quick Setup ID/OD Clamping Portable Machine
Modular On-Site Flange Lathe Quick Setup ID/OD Clamping Portable Machine
Specifications
Model Number :
XDFX-3000
Brand :
BAISHUN
MOQ :
1
Delivery Time :
45 work days
Processing diameter range :
1500-3000mm
Function :
Flange milling
Payment Terms :
T/T
Power :
4.5kw
Price :
53500
Rated torque :
285N.m
Certification :
CE，ISO
Model :
3000
Supply Ability :
30 Set/Sets per Month
Key words :
On-Site Flange Lathe
Brand Name :
BAISHUN MACHINERY
Name :
On-Site Flange Lathe
Place of Origin :
Henan, China
Processing mothed :
Milling
Packaging Details :
Export standard wooden case package or Negotiation with customers
Description

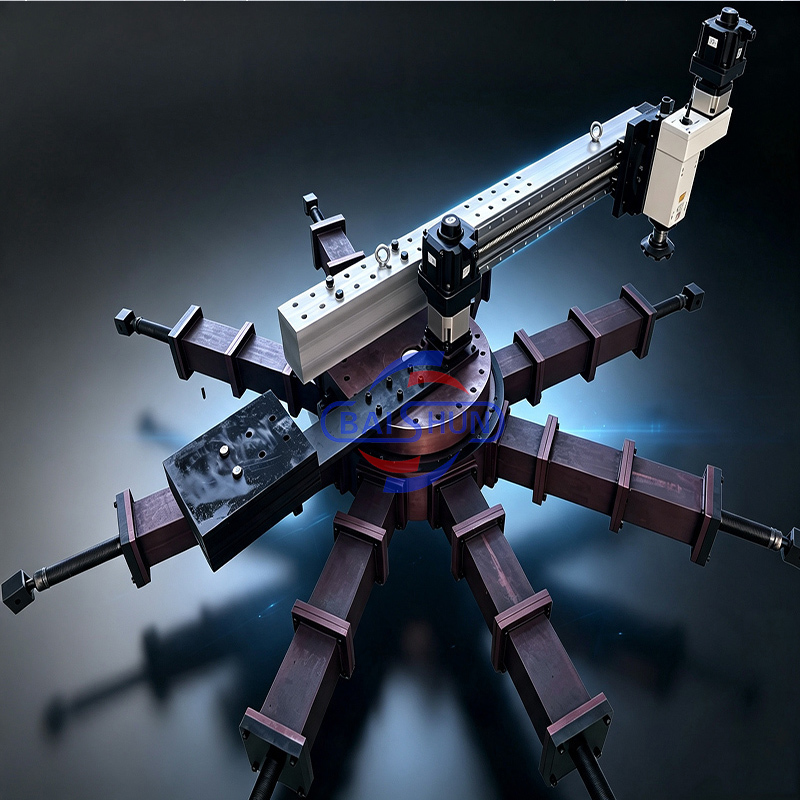

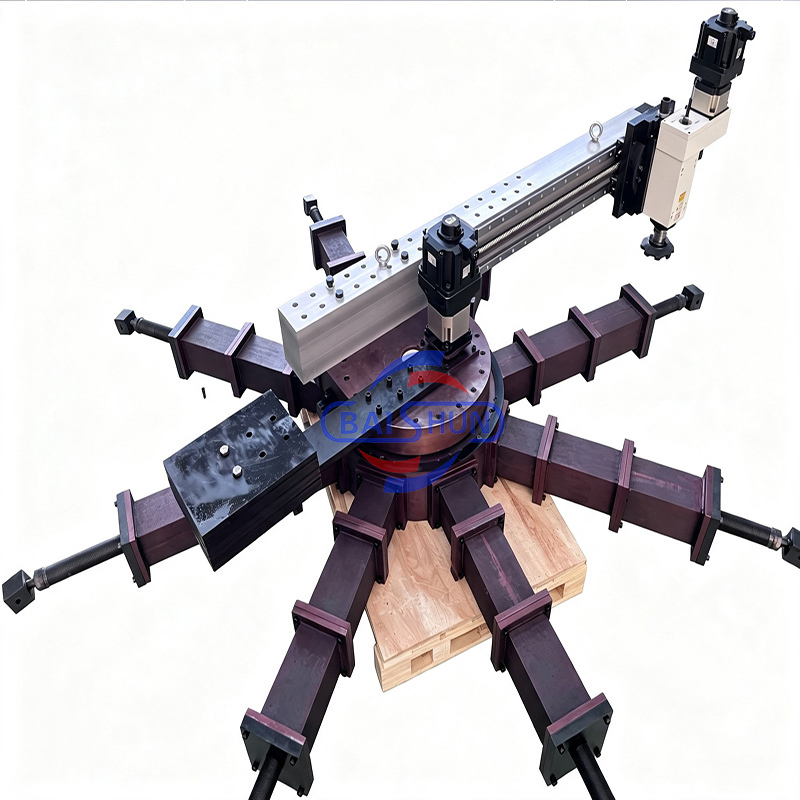

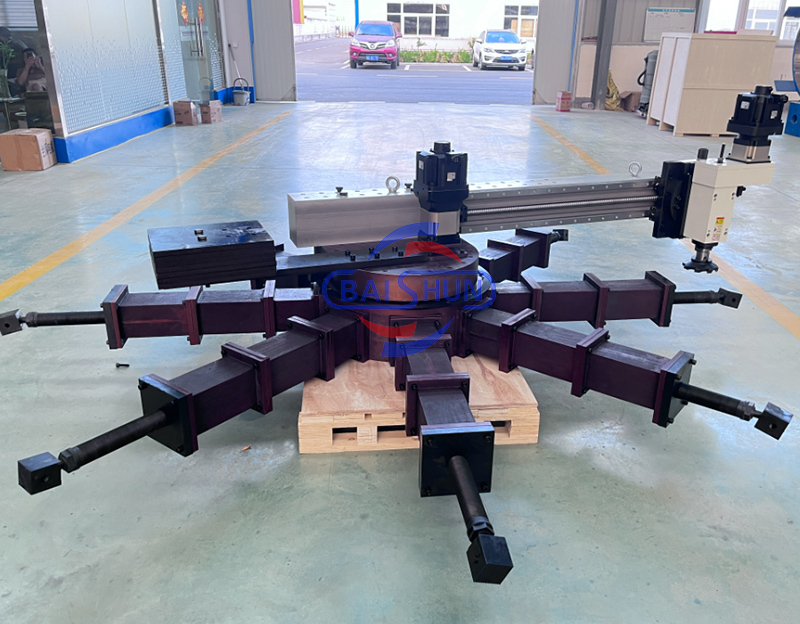

Modular On-Site Flange Lathe Quick Setup ID/OD Clamping Portable Machine:

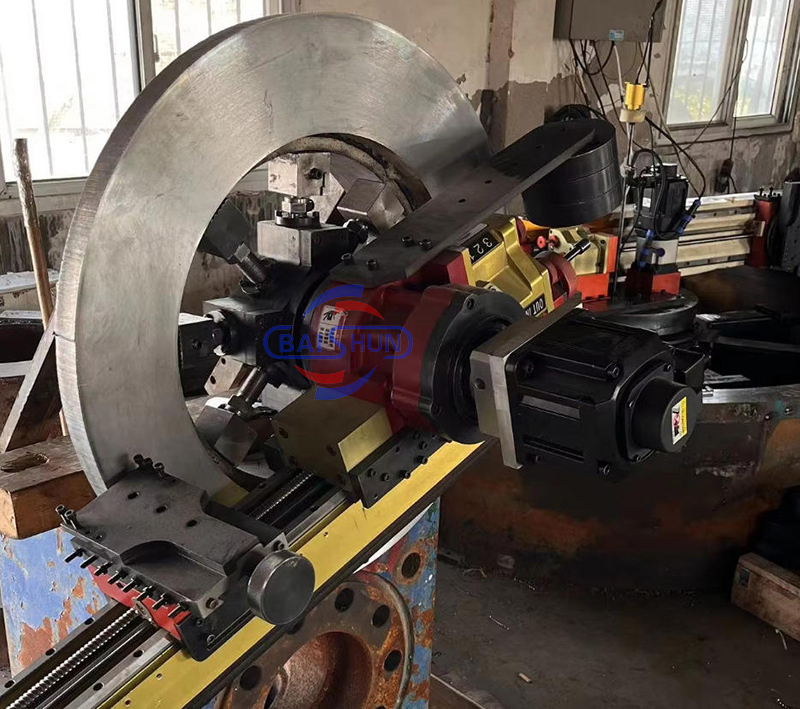

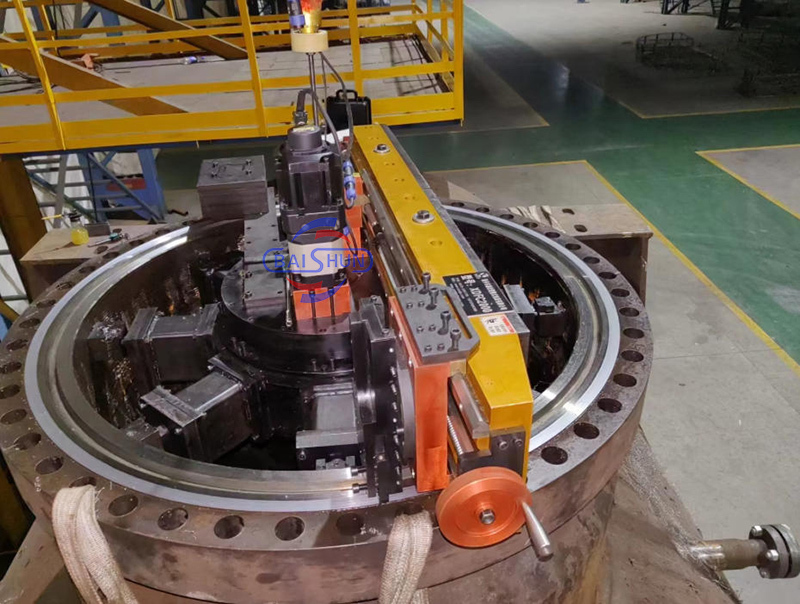

The portable flange milling machine is one of the mature products of our company's portable machining machine. This machine has a wide range of applications, mainly used for processing the sealing surface and inner diameter of large pipeline flanges, such as petroleum, chemical, nuclear power and other industries. Our company's portable flange lathe(milling machine) has fast installation, quick calibration, strong and precise power; Fast milling and sales speed; The blade arm is made of special steel and processed by special techniques. Automaticly movements of blades has adjustable feed rate. It has high strength, hardness, precision, and toughness. The spindle and spindle box are made ofspecial steel; and also the servo motor and Japanese NSK bearings; High precision and high rigidity.

Modular On-Site Flange Lathe Quick Setup ID/OD Clamping Portable Machine

Modular On-Site Flange Lathe Quick Setup ID/OD Clamping Portable Machine


Modular On-Site Flange Lathe Quick Setup ID/OD Clamping Portable Machine

Modular On-Site Flange Lathe Quick Setup ID/OD Clamping Portable Machine

Modular On-Site Flange Lathe Quick Setup ID/OD Clamping Portable Machine


Technical specification:

ITEM

UNIT

FX-3000

Processing method

Milling

Processing diameter range

MM

1500~3000

ROTARY DRIVE

structural style

Servo motor+reducer

Motor Power

KW

4.5

rated torque

N.m

285

HORIZONTAL FEED

Transverse feed stroke of spindle

Screw+linear guide rail

Transverse feed stroke of spindle

MM

300

Horizontal feeding mode

hand movement

MAIN SPINDLE FEED

Milling feed stroke

MM

100

Milling feed mode

hand movement

SPINDLE DRIVE

structural style

Servo motor+reducer

Motor Power

KW

4.5

rated torque

N.m

100

SUPPORTING METHOD

Supporting method

Internal support legs

Supporting diameter range

MM

1450-2950

PROCESSING CAPABILITY

Maximum processing capacity

MM

1mm

Processing flatness

MM

0.10mm

Roughness

Ra

3.2~1.6

LUBRICATION METHOD

linear guide rail

way

Quantitative centralized lubrication

Screw rod

way

Quantitative centralized lubrication

OTHER REQUIREMENTS

Power requirements

Ф380V±10 , 50HZ

Milling cutter disc

Diameter 120mm

Control method

Handle control

Spindle Model

BT40


Company Profile

Henan Baishun Machinery Equipment Co., Ltd is a professional manufacturer specializing in slotting machines, vertical lathe machines, CNC vertical lathe machines, CNC horizontal lathe machines, roll lathe machines, gear hobbing machines, pole erection machines, and shredder machines. With 14 years of experience in lathe manufacturing, we have exported our products to Peru, Brazil, Chile, Mexico, Italy, Indonesia, Sri Lanka, Russia, Uzbekistan, and other countries.

Our company places great importance on international technical exchanges and cooperation, having introduced advanced technology and craftsmanship from the United States, Germany, Australia, and other countries. We have established internationally advanced production lines and first-class modern testing facilities. We welcome all partners for visits, communication, and cooperation.

Modular On-Site Flange Lathe Quick Setup ID/OD Clamping Portable Machine
Packaging & Delivery
Modular On-Site Flange Lathe Quick Setup ID/OD Clamping Portable Machine Modular On-Site Flange Lathe Quick Setup ID/OD Clamping Portable Machine
Customer Services
Our Services

We provide comprehensive support including 7x24-hour online pre-sale service, engineer order follow-up, and logistics delivery operation services. Installation services are also available. With over 10 years of experience in various markets, we assist customers through the complete process from purchasing to customs clearance, saving time and reducing costs across all aspects.

Our Advantages
  • CE and ISO certified
  • Full production tracking
  • Professional engineers ensuring highest quality
  • Multiple supplier alternatives for competitive pricing
  • Sales staff with 10+ years experience for pre-sales and after-sales support
  • OEM production available to meet customer needs
  • Low MOQ (1 unit) available
  • 24-hour technical support
Warranty & Support

Warranty Period: During the one-year warranty period, any parts broken due to quality issues will be supplied free of charge by express delivery.

After the warranty period, we continue to provide our best service and support for any issues that may arise.

  • Online technical support service
  • Technical documentation service
  • Machine operation videos provided
  • On-site training service available
  • Spare parts replacement and repair service
  • All inquiries responded to within 24 hours
Further More Informations

Welcome to contact us!
