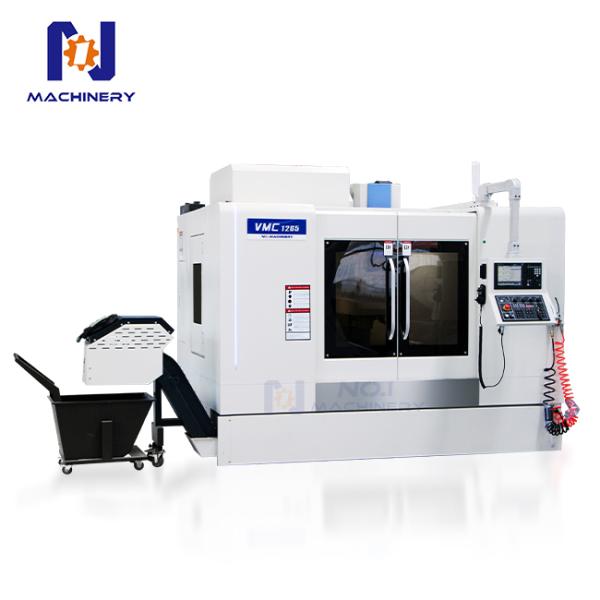

4 Axis CNC Machining Center VMC1265 Vertical CNC Milling Machine
4 Axis CNC Machining Center VMC1265 Vertical CNC Milling Machine
4 Axis CNC Machining Center VMC1265 Vertical CNC Milling Machine
4 Axis CNC Machining Center VMC1265 Vertical CNC Milling Machine
4 Axis CNC Machining Center VMC1265 Vertical CNC Milling Machine
4 Axis CNC Machining Center VMC1265 Vertical CNC Milling Machine
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
VMC1265
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
25000USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Size of worktable (mm) :
1300*650
Spindle end taper/diameter :
BT40-150
Maximum load on table（kg） :
800
X/Y/Z Axis stroke（mm） :
1200*650*650
Spindle speed（rpm） :
8000
Machine weight(kg) :
7500
Overall size(mm) :
3200*2450*2650
Description

Hot Selling 4 Axis Cnc Machining Center VMC1265 Vertical CNC Milling Machine Price

Application:
VMC series vertical CNC milling machine adopts vertical frame layout, the column is fixed on the bed body, the headstock moves up and down along the column (Z direction), the slide moves longitudinally along the bed (Y direction), and the table moves laterally along the slide (X To) the structure. . Can be achieved for a variety of plate, plate and shell, complex parts, such as CAM, mold processing, can complete drilling, milling, tapping and other processes, is suitable for batch production of products, can meet the drilling, tapping, milling process of small and medium-sized workpiece processing.
Product Features:
1 High-precision castings, quenched to eliminate internal stress and ensure accuracy
2 CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
3 The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure that the backlash and thermal deformation of the machine are kept low for a long time.
4 The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the bearing life.
5 High-precision Taiwan spindle, good stability and long life
6 Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics, can do rapid
displacement and obtain the best cycle accuracy.
7. Fully automatic electronic lubrication system for uniform oil supply and good stability.
Standard configuration:

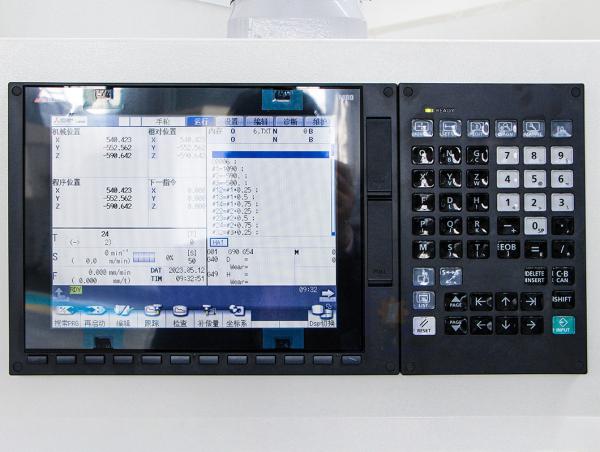

1. syntec 22ma control system
2. bt40 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -disc-atc
6.Electrical cabinet cold air exchanger
Product Specification:
Item Model
Unit
VMC1265
Size of worktable
mm
1300*650
Maximum load on table
Kg
800
Number of worktables
1
X/Y/Z rail width
mm
45/45/45
X/Y/Z screw diameter
mm
4012/4012/4012
X/Y/Z Axis stroke
mm
1200*650*650
X/Y/Z motor torque
mm
18/18/28(Contracting brake)
Distance from spindle face to table
mm
120-770
Distance from Spindle Center to column
mm
673
Cutting feed rate
mm/min
1-10
X/Y/Z axis fast feed
mm/min
36/36/36
Spindle end taper
mm
BT40-150
Spindle motor power
kw
11
Maximum spindle speed
rpm
8000
Form of Tool Magazine
-
disc/Chain type
Maximum tool diameter/weight
mm/kg
78/120/8
Tool change time
sec
2.5
Positioning accuracy
mm
0.008
Repeat positioning accuracy
mm
0.005
The smallest unit of positioning
mm
0.001
Weight of machine tool
Kg
7500
External dimensions
mm
3200*2450*2650

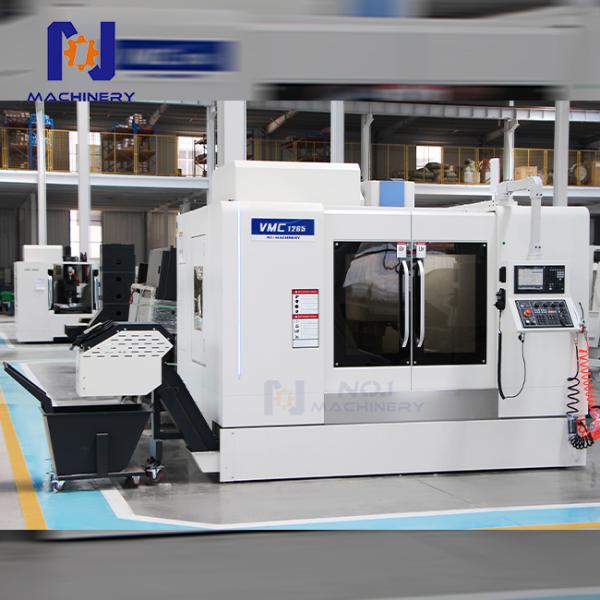

Product Display

4 Axis CNC Machining Center VMC1265 Vertical CNC Milling Machine

4 Axis CNC Machining Center VMC1265 Vertical CNC Milling Machine
