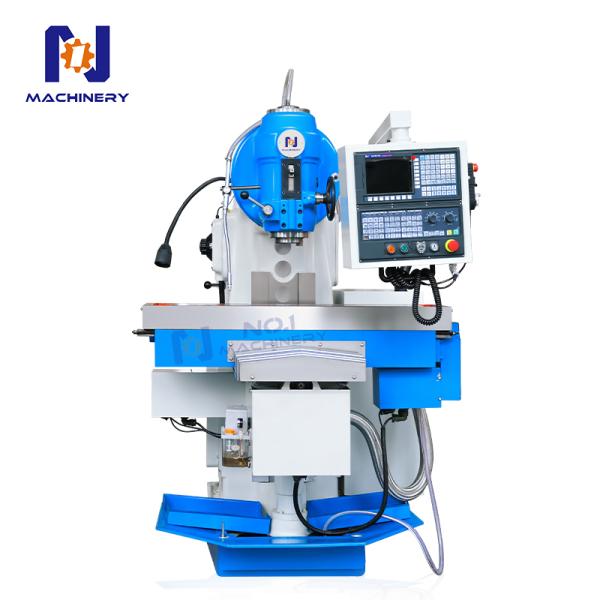

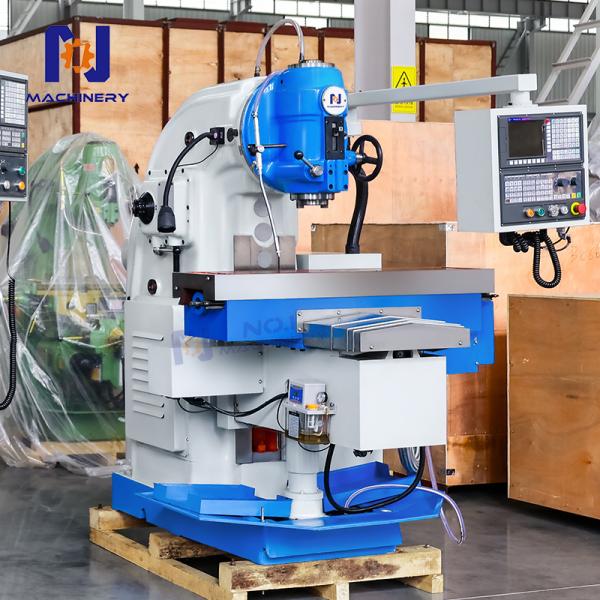

XK5040 Fresadora CNC Vertical Milling Machine Manufacturer CE Certified
XK5040 Fresadora CNC Vertical Milling Machine Manufacturer CE Certified
XK5040 Fresadora CNC Vertical Milling Machine Manufacturer CE Certified
XK5040 Fresadora CNC Vertical Milling Machine Manufacturer CE Certified
XK5040 Fresadora CNC Vertical Milling Machine Manufacturer CE Certified
XK5040 Fresadora CNC Vertical Milling Machine Manufacturer CE Certified
XK5040 Fresadora CNC Vertical Milling Machine Manufacturer CE Certified
XK5040 Fresadora CNC Vertical Milling Machine Manufacturer CE Certified
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
XK5040
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
25000USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Table size :
1700x400mm
X/Y/Z–axis travel :
1000x330x400mm
Spindle Taper :
ISO:50/7:24
Spindle speed range (series) :
30-1500/18
Table rotation angle (optional) :
±45°
Main motor power :
7.5kw
T-groove :
3-18-90
Description
XK5040 Fresadora Cnc Vertical Milling Machine Manufacturer CE Certified Low Price
Product Description:
The XK5040 is a high-performance vertical CNC milling machine featuring a sturdy bed structure and precision guideways to ensure machining stability and accuracy. Equipped with a CNC system, it supports three-axis linkage and a wide spindle speed range to meet the needs of processing a variety of materials.
Standard Configuration:

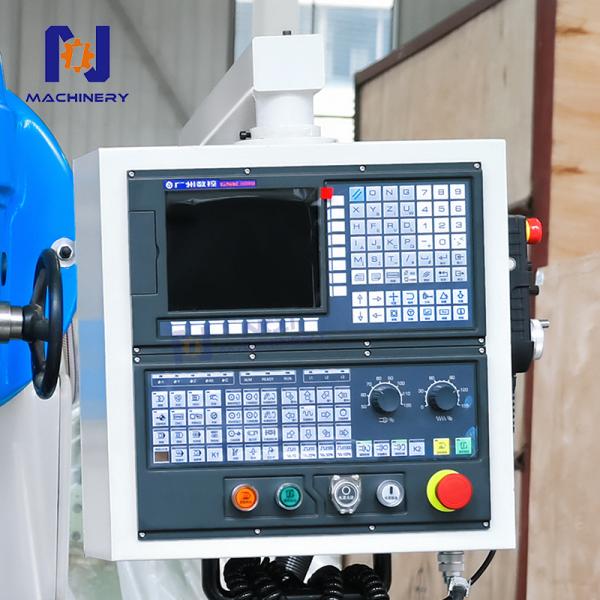

1. Guangtai 130 system
2.Three axis CNC
3.Manual transmission of spindle

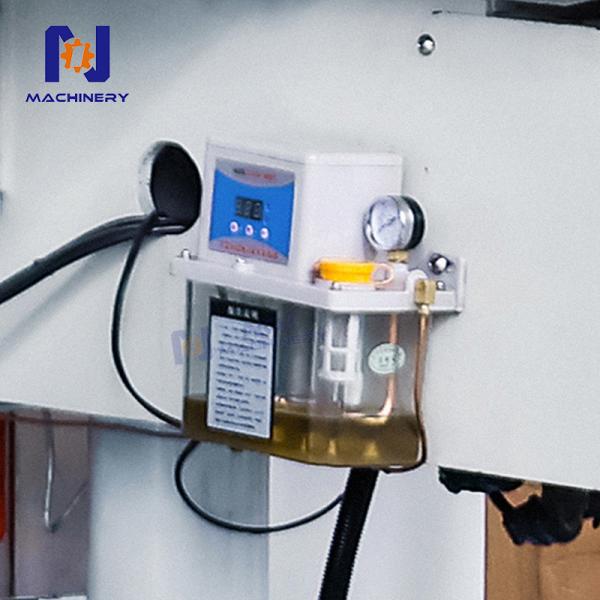

4.Electronicoil pump
5.Three-axis hard rail
Optional Configuration:
1. System :GSK,KND
2.Pneumatic broach
3.CNC dividing head
4.Top Tailstock
5.Fully protected sheet metal
Product Specification:
PARAMETER ITEM
UNIT
XK5032
XK5040
Size of worktable
mm
1500x320
1700x400
Tabe travel
mm
900x310x350
880x300x365
T-groove
mm
3-14-70
3-18-90
Spindle Taper
-
ISO:50/7:24
ISO:50/7:24
Maximum rotation angle of end mill head
.
±45°
±45°
Distance between spindle end face and table top
mm
30-380
45-410
Bed Vertical Guide to the spindle center line distance
mm
350
450
Spindle speed range (series)
rpm
30-1500/18
30-1500/18
Fast moving speed(x/y/z)
mm/min
6000/6000/3000
3000/3000/1500
Positioning accuracy
mm
0.025/300
0.05/300
Repeat positioning accuracy
mm
0.015/300
0.025/300
Main Drive motor power
kw
7.5
11
Cooling pump motor power
kw
0.125
0.125
External dimensions
mm
2272x1825x2094
2556x2160x2400
Weight of machine tool
kg
3250
4320
Details Display:

XK5040 Fresadora CNC Vertical Milling Machine Manufacturer CE Certified

XK5040 Fresadora CNC Vertical Milling Machine Manufacturer CE Certified

XK5040 Fresadora CNC Vertical Milling Machine Manufacturer CE Certified
