CW6180 Heavy Duty Metal Conventional Manual Lathe Machine 3000mm
CW6180 Heavy Duty Metal Conventional Manual Lathe Machine 3000mm
CW6180 Heavy Duty Metal Conventional Manual Lathe Machine 3000mm
CW6180 Heavy Duty Metal Conventional Manual Lathe Machine 3000mm
CW6180 Heavy Duty Metal Conventional Manual Lathe Machine 3000mm
CW6180 Heavy Duty Metal Conventional Manual Lathe Machine 3000mm
CW6180 Heavy Duty Metal Conventional Manual Lathe Machine 3000mm
CW6180 Heavy Duty Metal Conventional Manual Lathe Machine 3000mm
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
CW6180
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
13900USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
35 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Max. swing over bed :
800mm
Rotation diaeter on tool post :
480mm
Maximum workpiece length / Maximum turning length :
1500/2000/3000mm
Guide rail width :
600mm
Spindle through hole diameter :
105mm
Spindle bore taper :
MT6
Main motor power :
11kw
Description

CW6180 Heavy Duty Metal Lathe 3000mm Lathe Machine Conventional Manual Lathe

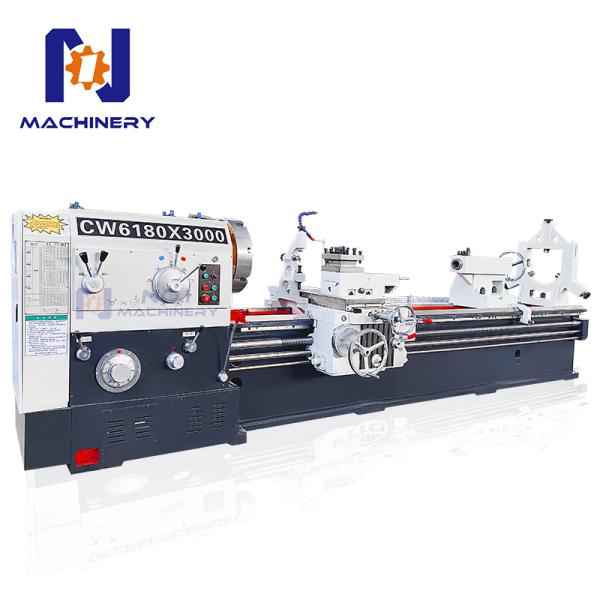

The CW6180 is a heavy-duty horizontal lathe with high-strength cast iron bed, offering 800mm max.swing diameter and 1500/2000/3000mm center distance options. Equipped with 18-speed gearbox and 130mm spindle bore, it's ideal for roughing/finishing large shafts and discs in machinery manufacturing.

Product features:

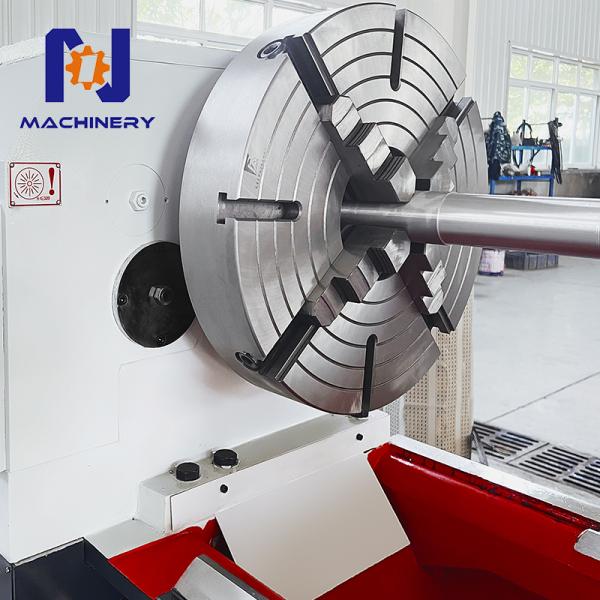

MANUAL CHUCK:The standard version is equipped with a 3-jaw or 4-jaw manual chuck

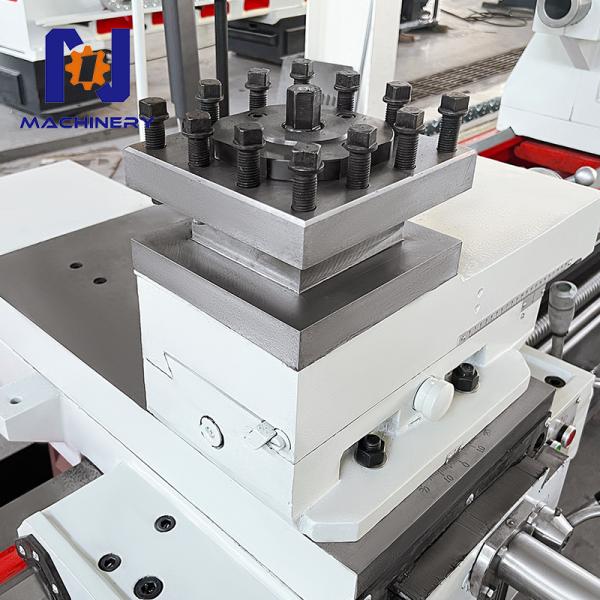

FOUR-STATION TOOL HOLDER:Four-station tool holder,fast-moving mechanism,can be operated with one hand, and tool holder pro-tection is optional.

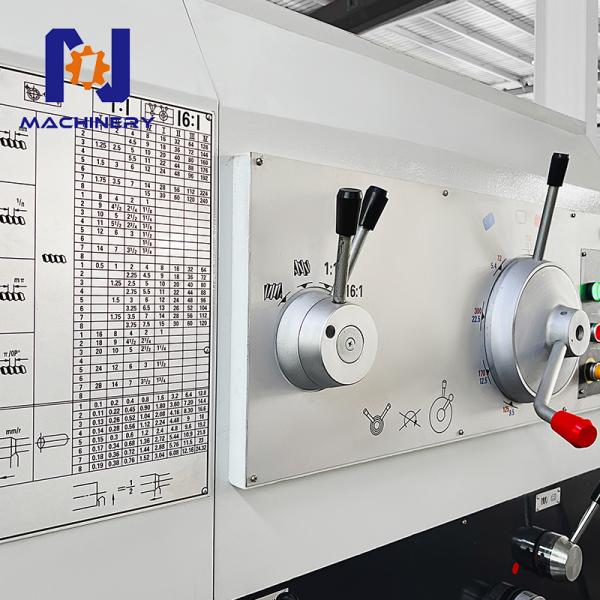

GEAR SPINDLE BOX:Classic gear shifting device, gear engagement is more accurate/fast

STEADY REST:Steady rest are optional accessories, need extra cost.

QUENCHED TAILSTOCK:The tailstock sleeve is treated with high-frequency quenching and carefully ground to prevent wear and tear.

2 AXIS DRO:2 axis digital readoutis optional accessory,clinets can choose it asrequirement.

Product specification:

Specification
Unit
CW6180
Swing over bed
mm
800
Swing over cross slide
mm
480
Distance between center
mm
4000
Guideway width
mm
600
Max.loading capacity
t
1.5
Spindle bore
-
130
Spindle bore taper
-
Metric-120/MT6
Spindle nose type
-
1:30
Spindle speed steps
FWD.21 STEP
Spindle speed range
rpm
18,5.4-720
Chuck
mm
500-4-jaw manual
Turret/tool post
-
4-station
Tool size
mm
32*32
X axis travel
mm
480
Z axis travel
mm
3750
X axis feed grade/range
Mm/r
64/0.05-6
Y axis feed grade/range
Mm/r
64/0.1-2
X axis rapid traverse
Mm/min
1870
Y axis rapid traverse
Mm/min
3740
Metric thread grade/range
mm
44/1-120
Inch thread grade/range
T.P.I
31/28-3/8
Module thread grade/range
mm
-
DP thread grade/range
D.P
-
Tailstock quill diameter
mm
100
Tailstock quill taper
-
80
Tailstock quill travel
mm
250
Main motor power
kw
11
Rapid traverse motor
kw
1.5
Coolant pump motor
kw
0.125
Width * height
mm
1500*1575
Length
mm
6100
Net weight
t
5500

Details Display:

CW6180 Heavy Duty Metal Conventional Manual Lathe Machine 3000mm

CW6180 Heavy Duty Metal Conventional Manual Lathe Machine 3000mm

CW6180 Heavy Duty Metal Conventional Manual Lathe Machine 3000mm

CW6180 Heavy Duty Metal Conventional Manual Lathe Machine 3000mm
