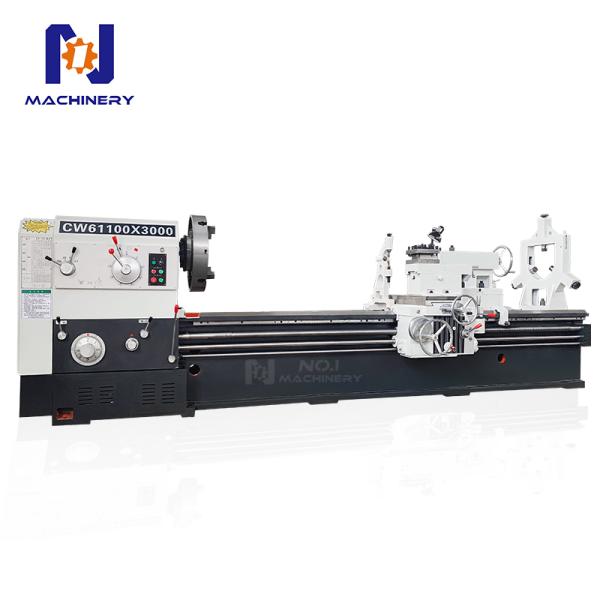

CW61100 Metal Lathe Machine 3m Heavy Duty Horizontal Flat Bed Lathe Machine
CW61100 Metal Lathe Machine 3m Heavy Duty Horizontal Flat Bed Lathe Machine
CW61100 Metal Lathe Machine 3m Heavy Duty Horizontal Flat Bed Lathe Machine
CW61100 Metal Lathe Machine 3m Heavy Duty Horizontal Flat Bed Lathe Machine
CW61100 Metal Lathe Machine 3m Heavy Duty Horizontal Flat Bed Lathe Machine
CW61100 Metal Lathe Machine 3m Heavy Duty Horizontal Flat Bed Lathe Machine
CW61100 Metal Lathe Machine 3m Heavy Duty Horizontal Flat Bed Lathe Machine
CW61100 Metal Lathe Machine 3m Heavy Duty Horizontal Flat Bed Lathe Machine
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
CW61100
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
17000USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
35 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Max. swing over bed :
1000mm
Rotation diaeter on tool post :
720mm
Guide rail width :
500/600mm
Spindle through hole diameter :
105mm
Spindle bore taper :
MT6
Main motor power :
11kw
Description

CW61100 Metal Lathe Machine 3m Heavy Duty Horizontal Flat Bed Lathe Machine Price

The CW61100 is a heavy-duty horizontal lathe featuring a reinforced cast iron bed and a maximum swing diameter of 1000mm. It is equipped with an 18-speed gearbox and a 105mm spindle bore. It can meet the precision machining needs of ultra-large workpieces such as large rolls and turbine shafts.

Product features:

1. One-piece bed adopts high strength iron to ensure rigidity and precision.

2. Ultrasonic frequency quenched guide-ways ensure good wear-resistance.

3. Headstock gears hardened and ground to achieve precision and low noise.

MANUAL CHUCK:The standard version is equipped with a 3-jaw or 4-jaw manual chuck

FOUR-STATION TOOL HOLDER:Four-station tool holder,fast-moving mechanism,can be operated with one hand, and tool holder pro-tection is optional.

GEAR SPINDLE BOX:Classic gear shifting device, gear engagement is more accurate/fast

STEADY REST:Steady rest are optional accessories, need extra cost.

QUENCHED TAILSTOCK:The tailstock sleeve is treated with high-frequency quenching and carefully ground to prevent wear and tear.

2 AXIS DRO:2 axis digital readoutis optional accessory,clinets can choose it asrequirement.

Product specification:

Model
Unit
CW61100
CW61100
Maximum rotation diameter on the bed
mm
1000
1000
Rotation diameter on the tool holder
mm
720
680
Maximum workpiece length
mm
1500/200/3000
1500/2000/3000
Spindle through hole diameter
mm
105
105
Spindle front end taper hole diameter and center taper
mm
120,1:20
120,MT6
Spindle speed series and range
r/min
7.5-1000 (18kinds)
18,5.4-720
Vertical feed level and range
Range 1:1
mm/r
0.06-1.52(64kinds)
0.06-1.52(64kinds)
Range 16:1
mm/r
1.6-24.3(64kinds)
1.6-24.3(64kinds)
Micro feed range with exchange gear
mm/r
0.06-0.912
0.06-0.912
Ratio of lateral feed to longitudinal feed
—
1/2
1/2
Machine tool lead screw pitch
mm
12
12
Thread type and range
Metric thread
mm
1-240 (50kinds)
1-240 (50kinds)
British thread
tpi
14-1 (26kinds)
14-1 (26kinds)
Module thread
mm
0.5-120 (53kinds)
0.5-120 (53kinds)
Diameter pitch thread
tpi
28-1 (24kinds)
28-1 (24kinds)
Maximum horizontal stroke of lower tool rest
mm
420
390
Maximum stroke of upper tool rest
mm
200
200
Stroke of end sleeve
mm
250
250
Tip of end sleeve
—
MT6
MT6
Width and quenching hardness of bed rail
mm
550mm RC52
600mm RC52
Hardness of bed rail
RC
52
52
Main motor power
kW
11
11
Fast motor power
kW
1.1
1.1
Cooling pump motor power
kW
0.9
0.9
Lathe weight
kg
3800/4200/5000
4500/4700/5500
Machine outline dimensions (length × width × height)
mm
3600/4100/5100*1530*1870
3600/4200/5200*1500*1700

Details Display:

CW61100 Metal Lathe Machine 3m Heavy Duty Horizontal Flat Bed Lathe Machine

CW61100 Metal Lathe Machine 3m Heavy Duty Horizontal Flat Bed Lathe Machine

CW61100 Metal Lathe Machine 3m Heavy Duty Horizontal Flat Bed Lathe Machine

CW61100 Metal Lathe Machine 3m Heavy Duty Horizontal Flat Bed Lathe Machine
