Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
BC6063
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
6000USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
15days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Max.planing length(mm） :
630
The maximum distance from the bottom of the ram to the work surface :
385
Max.lateral travel distance of worktable :
660
Max.vertical table travel distance :
360
Working surface size(mm) :
630*400
Tool travel(mm) :
120
T-slot(mm) :
18
Main power(kw) :
3
NW/GW（kg） :
3500
Dimensions（mm） :
2000*1300*1550
Description

Factory Direct BC6063 Metal Fully Automatic Planer Hydraulic Shaper Machine Price

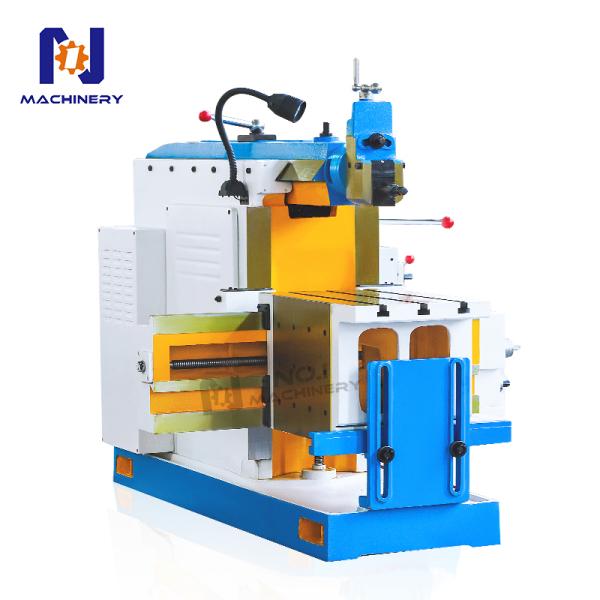

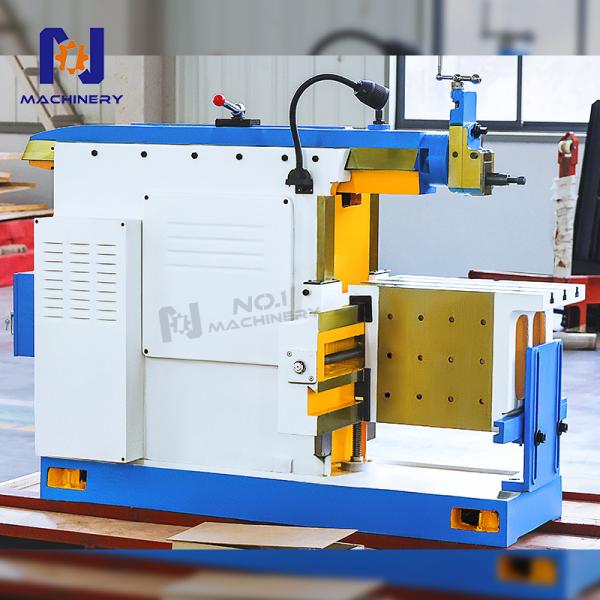

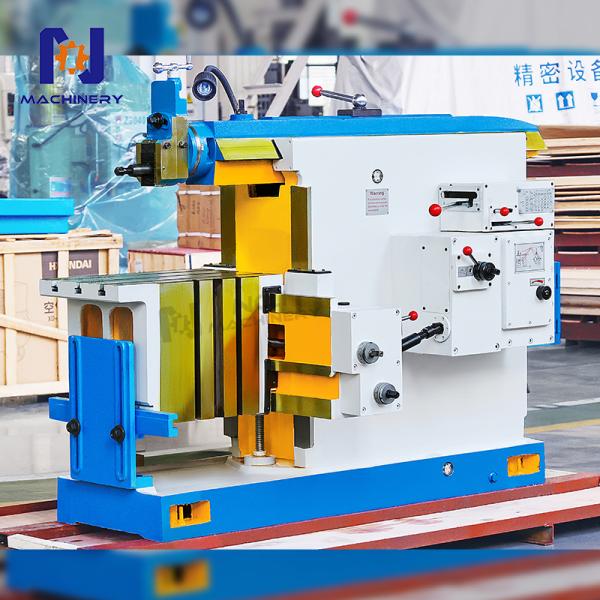

The Shaper is a planer that performs linear reciprocating motion. The ram carries the planer. It is named because the tool holder at the front of the ram looks like a bull's head. The ram carries the planer in horizontal linear reciprocating motion. The tool holder can rotate an angle in the vertical plane and can be fed manually. The worktable carries the workpiece in intermittent horizontal or vertical feeding motion. It is often used to process planes, grooves and dovetail surfaces.

Product specification:

Name
Unit
BC6063
Max.planing length
Mm
630
The maximum distance from the bottom of the ram to the work surface
Mm
385
Max.lateral travel distance of worktable
Mm
660
Max.vertical table travel distance
Mm
360
Working surface size
Mm
630*400
Tool travel
Mm
120
The number of reciprocating rams per minute
14-80
Tool holder rotation angle
±60°
Planer handle the largest size
Mm
20*30
Table feed
Mm
0.4-5 (level)
0.08-1.00 (vertical)
T-slot
Mm
18
Main power
Kw
3
Dimensions
Mm
2000*1300*1550
NW/GW
KG
3500

Details Display:

BC6063 Planing Machine Metal Fully Automatic Planer Hydraulic Shaper Machine

BC6063 Planing Machine Metal Fully Automatic Planer Hydraulic Shaper Machine

BC6063 Planing Machine Metal Fully Automatic Planer Hydraulic Shaper Machine

BC6063 Planing Machine Metal Fully Automatic Planer Hydraulic Shaper Machine
