Metal Manual Lathe Machine CA6250 Horizontal Conventional Lathe Machine
Metal Manual Lathe Machine CA6250 Horizontal Conventional Lathe Machine
Metal Manual Lathe Machine CA6250 Horizontal Conventional Lathe Machine
Metal Manual Lathe Machine CA6250 Horizontal Conventional Lathe Machine
Metal Manual Lathe Machine CA6250 Horizontal Conventional Lathe Machine
Metal Manual Lathe Machine CA6250 Horizontal Conventional Lathe Machine
Metal Manual Lathe Machine CA6250 Horizontal Conventional Lathe Machine
Metal Manual Lathe Machine CA6250 Horizontal Conventional Lathe Machine
Metal Manual Lathe Machine CA6250 Horizontal Conventional Lathe Machine
Metal Manual Lathe Machine CA6250 Horizontal Conventional Lathe Machine
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
CA6250
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
6900USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Max. swing over bed :
500mm
Rotation diaeter on tool post :
300mm
Swing diameter in saddle x effective length :
720x210mm
Maximum workpiece length / Maximum turning length :
750/1000/1500/2000/3000mm
Spindle Bore/Spindle Bore Front Taper :
Φ52/MT6[80]
Spindle speed range forward :
50Hz:1-1600 60Hz:12-1680 r/min
Tool holder section size :
25x25mm
Distance from spindle center to bed plane guide :
250mm
Main motor power :
7.5kw
Description

High Quality Manual Metal Lathe CA6250 Horizontal Conventional Lathe Machine Price

CA series lathes are capable of turning various materials' end faces, inner and outer cylinders, conical surfaces, and other rotating surfaces. It can accurately process various metric, inch, module, and diametral pitch threads. In addition, tasks such as drilling, reaming, and pulling oil grooves can also be easily completed.

Standard Configuration:

400mm Guide rail width 400mm

Skateboard Box with rapid advance and retreat

Processing thread variety, no need to change gear

Powerful Tool Holder:25x25mm

Can be heavy cutting

Optional Configuration:
Center rack and knife rack

Chuck protection, Tool Holder Protection, lead screw protection

Rear baffle

Digital display

Pedal to the brakes

Change the tool holder quickly

Four-jaw Chuck

Drill Chuck Joint Rod

Taper test scale

Specification:

PARAMETER ITEM
UNIT
CA6140
CA6240
CA6150
CA6250
Max. swing over bed
mm
400
400
500
500
Rotation diaeter on tool post
mm
210
210
300
300
Swing diameter in saddle x effective length
mm
-
630x210
-
720x210
Maximum workpiece length / Maximum turning length
mm
750/650 1000/900 1500/1400 2000/1900
Distance from spindle center to bed plane guide
mm
205
205
250
250
Spindle Bore/Spindle Bore Front Taper
Φ52/MT6[80]
Spindle speed series forward/reverse
24/12
Spindle speed range forward
r/min
50Hz:1-1600 60Hz:12-1680
Reverse
r/min
50Hz:14-1580 60Hz:16.8-1896
Vertical feed/Standard feed
mm/r
0.08-1.59
Minimum feed
mm/r
0.028-0.054
Maximum feed
mm/r
0.86-3.16
Rapid moving speed of tool holder
m/min
portrait4 horizontal2
Max stroke of upper/lower turret
mm
140/320
140/320
140/320
140/420
Rotation angle of tool rest turntable
.
±90
Distance from spindle centerline to tool support surface
mm
26
Tool holder section size
mm
25x25
Lead screw pitch
mm
12
Main motor power
kw
7.5
weight of lathe (750mm)
kg
1990
1990
2060
2060
weight of lathe (1000mm)
kg
2070
2070
2140
2140
weight of lathe (1500mm)
kg
2220
2220
2290
2290
weight of lathe (2000mm)
kg
2570
2570
2640
2640
Lathe outline size(750mm)
mm
2418x1000x1267
2418x1000x1267
2418x1037x1312
2418x1037x1312
Lathe outline size(1000mm)
mm
2668x1000x1267
2668x1000x1267
2668x1037x1312
2668x1037x1312
Lathe outline size(1500mm)
mm
3168x1000x1267
3168x1000x1267
3168x1037x1312
3168x1037x1312
Lathe outline size(2000mm)
mm
3668x1000x1267
3668x1000x1267
3668x1037x1312
3668x1037x1312

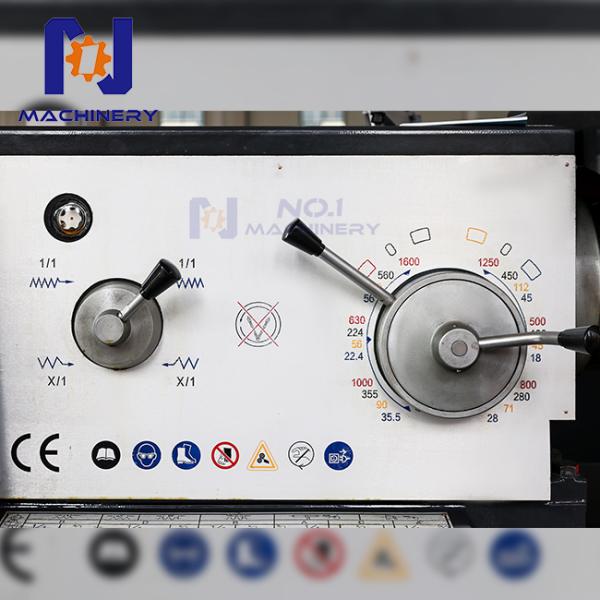

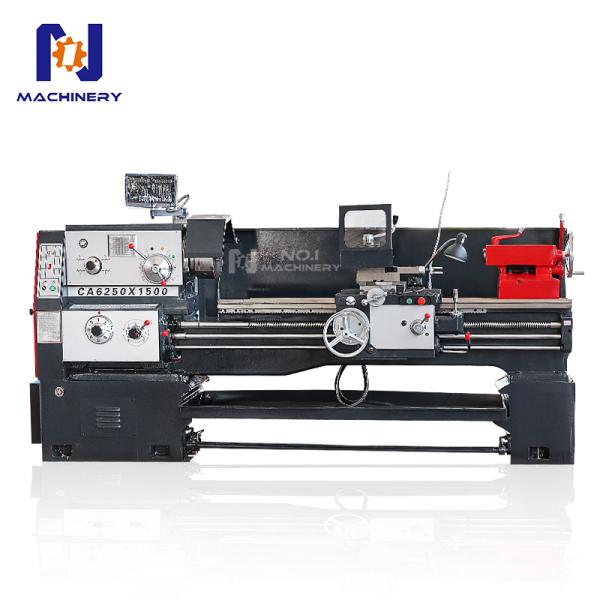

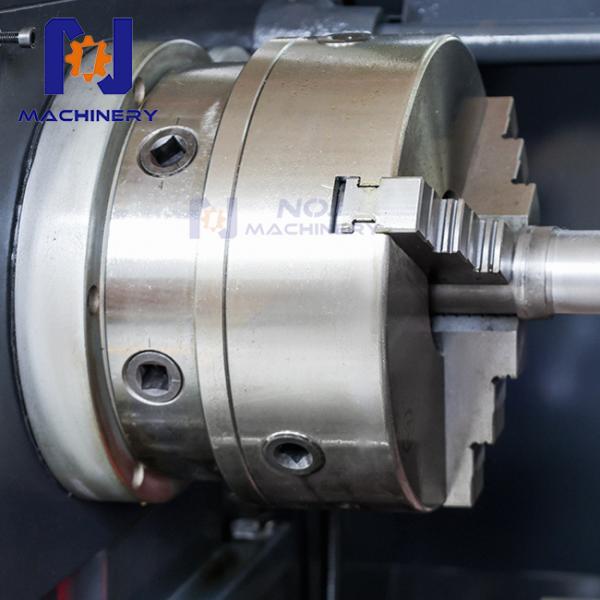

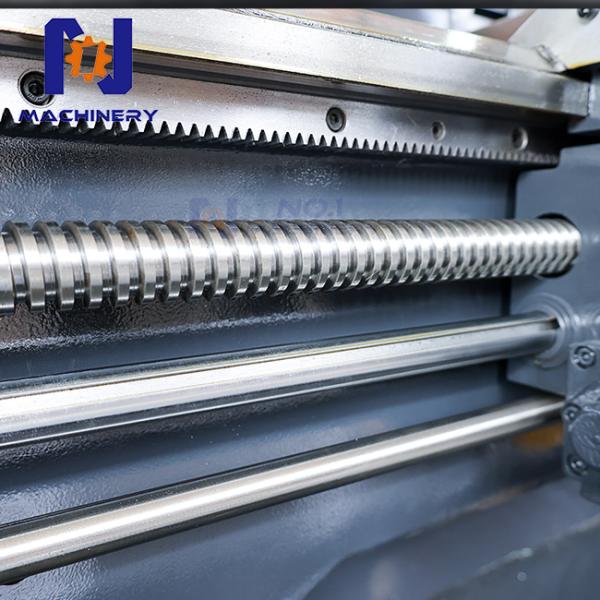

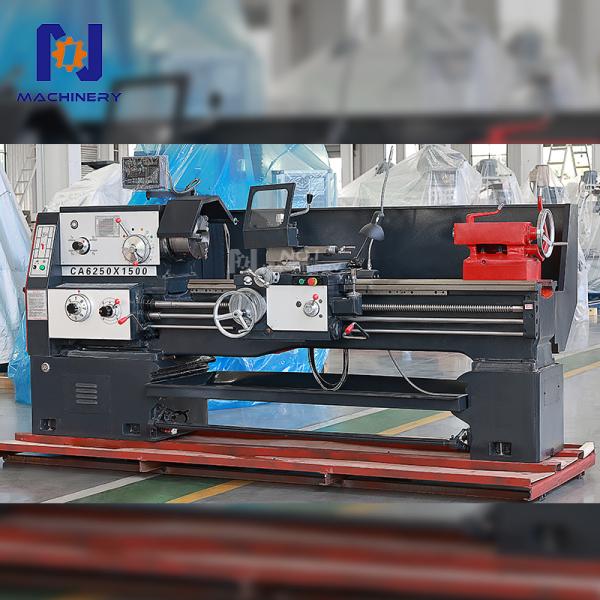

Details Display:

Metal Manual Lathe Machine CA6250 Horizontal Conventional Lathe Machine

Metal Manual Lathe Machine CA6250 Horizontal Conventional Lathe Machine

Metal Manual Lathe Machine CA6250 Horizontal Conventional Lathe Machine

Metal Manual Lathe Machine CA6250 Horizontal Conventional Lathe Machine
