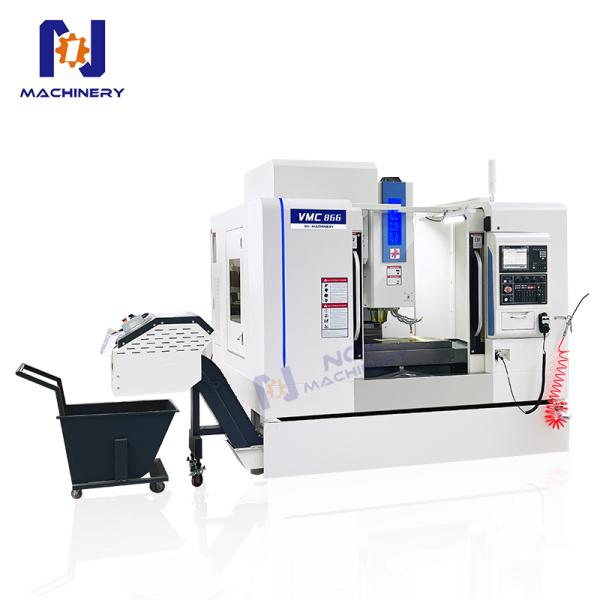

VMC866 3 Axis Vertical Machining Center CNC Milling Machine
VMC866 3 Axis Vertical Machining Center CNC Milling Machine
VMC866 3 Axis Vertical Machining Center CNC Milling Machine
VMC866 3 Axis Vertical Machining Center CNC Milling Machine
VMC866 3 Axis Vertical Machining Center CNC Milling Machine
VMC866 3 Axis Vertical Machining Center CNC Milling Machine
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
VMC866
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
21000USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Size of worktable (mm) :
1000*600
X/Y/Z Axis stroke（mm） :
800*600*600
Maximum load on table（kg） :
550
Spindle speed（rpm） :
8000
Machine weight(kg) :
6000
Overall size(mm) :
2800*2400*2700
Description
VMC866 Cnc Milling Machine 3 Axis Vertical Machining Center with Low Price
Product Description:
The VMC866 is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Product Features:
1. Yunnan HT300 resin sand casting, tempering elimination internal stress, high copper density, long time use no deformation.
2. SIEMENS,KND,FANUC,MITSUBISHI,GSK and other operating systems can be selected according to customer requirements.
3. Guide rail and lead screw adopt taiwan brand The guide rail is quenched at intermediate frequency and precisely scraped ensure accuracy.
4. Schneider safety electrical components Quick plug as standard, Make the machine performance better.
Standard configuration:
1. syntec 22ma control system
2. bt40 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -disc-atc
6.Electrical cabinet cold air exchanger
Product Specification:
Item Model
Unit
VMC866
Size of worktable
mm
1000*600
T-shaped groove for table
mm
5-18*100
Maximum load on table
kg
550
X/Y/Z rail width
mm
35 or 45/45/45
X/Y/Z ball screw specification
mm
4016/4016/4016
X/Y/Z Axis stroke
mm
800*600*600
X/Y/Z motor torque
NM
18/18/22(Contracting brake)
Spindle face to table position
mm
120-720
Distance from Spindle Center to column
mm
626
Cutting feed rate
mm/min
1-8000
X/Y/Z axis fast feed
m/min
48/48/48
Spindle end taper/diameter
mm
BT40-150
Spindle motor power
kw
7.5/11
Maximum spindle speed
rpm
8000
Form of Tool Bank
-
Disc
The capacity of knife storage
tools
24
Maximum tool diameter/weight
mm/kg
78/120/8
Tool change time
sec
2.5
Positioning accuracy
mm
0.008
Repeat positioning accuracy
mm
0.005
The smallest unit of positioning
mm
0.005
Weight of machine tool
kg
6000
External dimensions
mm
2800*2400*2700

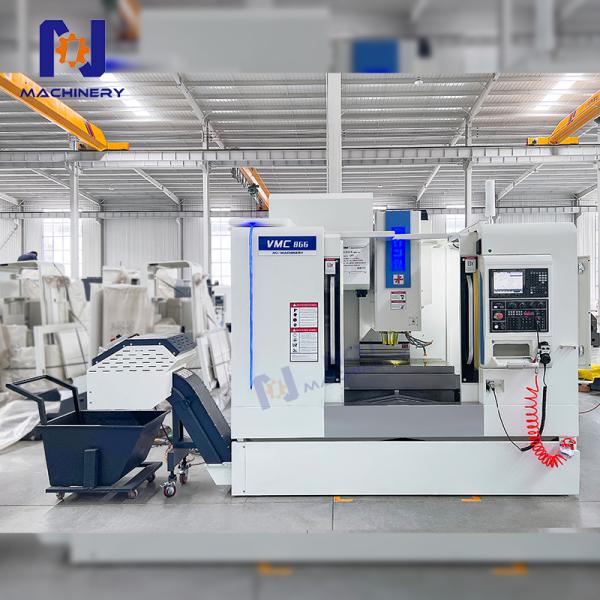

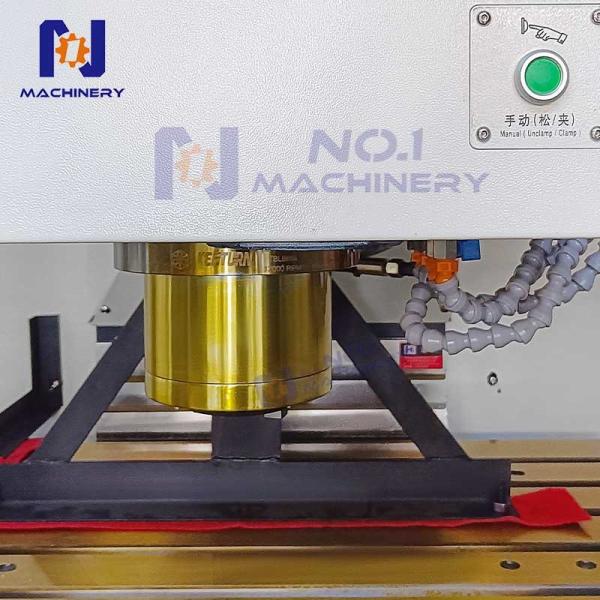

Product Display

VMC866 3 Axis Vertical Machining Center CNC Milling Machine

VMC866 3 Axis Vertical Machining Center CNC Milling Machine
