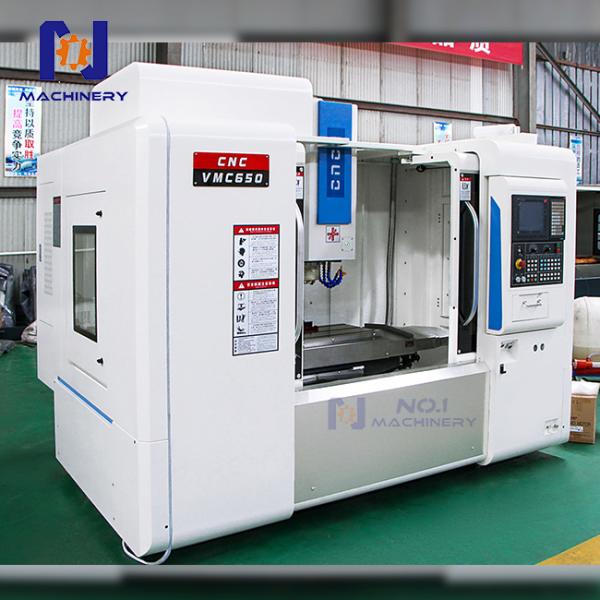

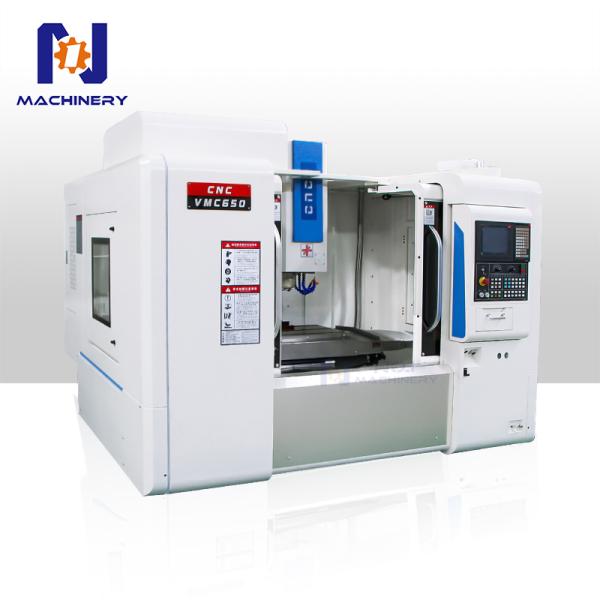

3 Axis VMC650 VMC CNC Milling Machine 8000rpm Spindle Speed
3 Axis VMC650 VMC CNC Milling Machine 8000rpm Spindle Speed
3 Axis VMC650 VMC CNC Milling Machine 8000rpm Spindle Speed
3 Axis VMC650 VMC CNC Milling Machine 8000rpm Spindle Speed
3 Axis VMC650 VMC CNC Milling Machine 8000rpm Spindle Speed
3 Axis VMC650 VMC CNC Milling Machine 8000rpm Spindle Speed
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
VMC650
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
16000USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Size of worktable (mm) :
400×900
X/Y/Z Axis stroke（mm） :
800x500x500
Maximum load on table（kg） :
400
Spindle speed（rpm） :
8000
Spindle taper :
BT40
Power of spindle motor（kw） :
5.5
Overall size(mm) :
2300×2000×2550
Description
Hot Selling 3 Axis VMC650 CNC Milling Machine Vertical Machining Center
Product Description
The VMC650 is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Product Features
1. Yunnan HT300 resin sand casting, tempering elimination internal stress, high copper density, long time use no deformation.
2. SIEMENS,KND,FANUC,MITSUBISHI,GSK and other operating systems can be selected according to customer requirements.
3. Guide rail and lead screw adopt taiwan brand The guide rail is quenched at intermediate frequency and precisely scraped ensure accuracy.
4. Schneider safety electrical components Quick plug as standard, Make the machine performance better.
Optional configuration:
1. Siemens, FANUC, Mitsubishi, GSK, KND
2. spindle RPM 10000 Timingbelt /12000 Direct drive
3.Coolant through spindle(CTS)
4.Workpiece measuring probe
5.Screw type chip conveyor
6.4- axis /5-axis
Product Specification
MODEL
VMC650
X-Axis travel
800mm
Y-Axis travel
500mm
Z-Axis travel
500mm
Distance from Spindle nose to worktable surface
120-620mm
Distance from spindle centre to surface of column ram
492mm
T slot (width×num.)
18mm×3
Worktable size
400×900mm
Max.loading of worktable
400Kg
Power of spindle motor
5.5KW
Spindle speed
8000rpm
Spindle taper
BT40
Spindle bearing
P4
Rapid traverse speed of 3 axes
X /Y 24m/min
Z 18m/min
Cutting feed rate
1-8000mm/min
Min.set unit & moving unit
0.001mm
Pitch of X/Y axes
6mm
Pitch of Z axis
6mm
Positioning accuracy (300mm)
±0.008
Repeatability accuracy (300mm)
±0.005
Changing way of tools
Spindle floating/manipulator
Tool magazine
24(turntable)
Tool spec. max.dia. (neighboring Tool)×weight×length
φ80mm×6Kg×300
Tool changing time
7
Machine weight
4000kg
Air pressure
0.6MPa
Power of cooling pump for cutting
530W
Overall size
2300×2000×2550mm

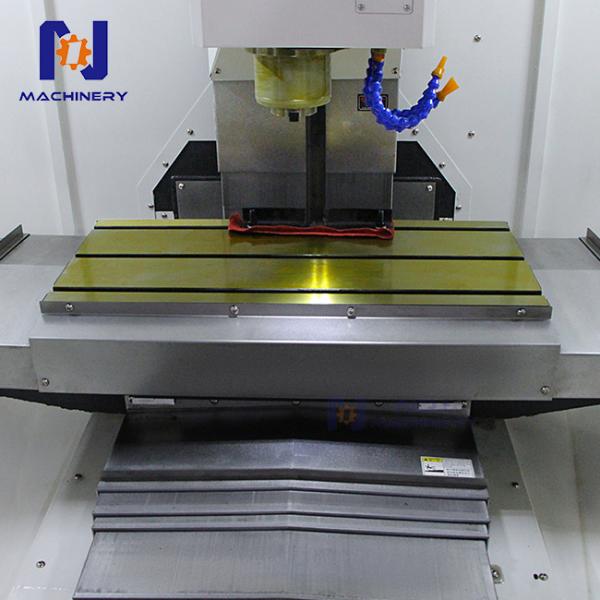

Product Display:

3 Axis VMC650 VMC CNC Milling Machine 8000rpm Spindle Speed

3 Axis VMC650 VMC CNC Milling Machine 8000rpm Spindle Speed
