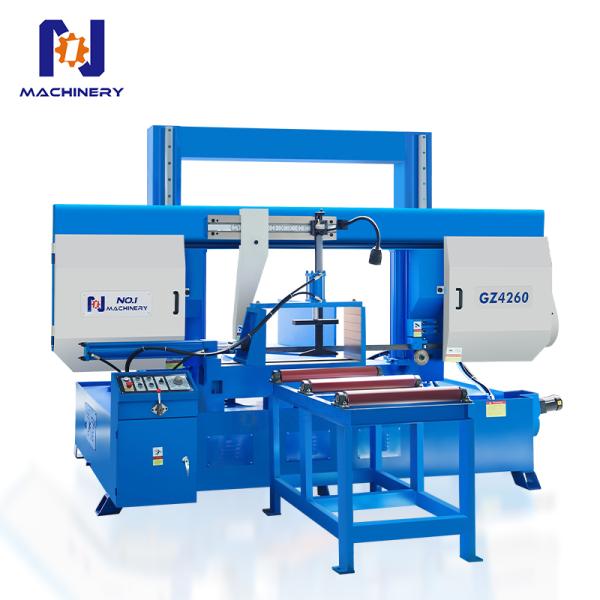

Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Metal Band Saw Machine
Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Metal Band Saw Machine
Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Metal Band Saw Machine
Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Metal Band Saw Machine
Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Metal Band Saw Machine
Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Metal Band Saw Machine
Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Metal Band Saw Machine
Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Metal Band Saw Machine
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
GZ4260
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
7500USD
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
90° sawing range(mm) :
600x600
45° sawing range(mm) :
600x520
Sawing Speed(m/min） :
27,45,69
Size of saw blade（mm） :
7200x54x1.6
Main motor power（kw） :
7.5
Pump Power（kw） :
1.5
Weight of machine tool（kg） :
4000
Extemal dimensions(mm） :
3600x1750x2200
Description

New Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Steel Band Saw Machine

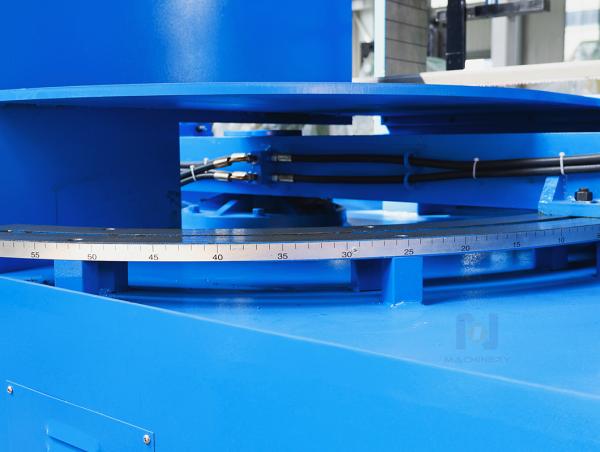

The GZ4260 is a high-efficiency angular band saw designed for precise angle cutting of metal profiles. Its saw frame allows accurate angular adjustment from 0 to 60 degrees, enabling high-precision bevel cuts on high-strength steel, alloy steel, and other materials. With a stable structure, high cutting efficiency, and easy operation, it is widely used in mold making, metallurgy, and structural steel fabrication

optional configuration:

1. saw blade cover protection

2. saw blade broken protection

3.electric feedrack

4.fast down protection

5.protective cover power failure protection

6.saw blade hydraulic clamping

6.saw blade variable speed

7.hydraulic chip conveyor

Product specification:

ARAMETER ITEM
UNIT
GZ4260
90° sawing range
mm
600x600

45° sawing range
mm
600x520
Specification for band saw blades
-
7200x54x1.6
Sawing Speed
m/min
27,45,69／(frequency conversion 20-80)
Feed rate
m/min
Stepless speed regulation
Main motor power
kw
7.5
Pump Power
kw
1.5
Pump Power
W
90
Clamping mode
-
Hydraulic
Weight of machine tool
kg
4000
External dimensions
mm
3600x1750x2200

Details Display:

Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Metal Band Saw Machine

Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Metal Band Saw Machine

Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Metal Band Saw Machine

Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Metal Band Saw Machine

Metal Cutting Machine GZ4260 Hydraulic Angle Horizontal Metal Band Saw Machine
