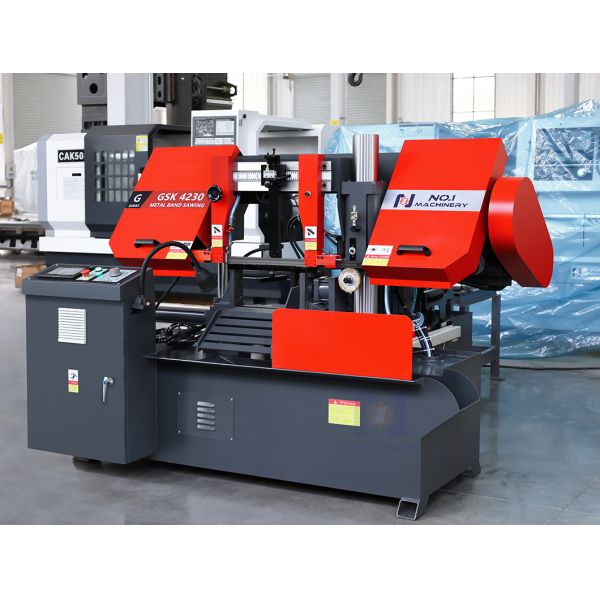

Horizontal Band Saw Machine GSK4230 Automatic Metal Cutting With Hydraulic Feeding
Horizontal Band Saw Machine GSK4230 Automatic Metal Cutting With Hydraulic Feeding
Horizontal Band Saw Machine GSK4230 Automatic Metal Cutting With Hydraulic Feeding
Horizontal Band Saw Machine GSK4230 Automatic Metal Cutting With Hydraulic Feeding
Horizontal Band Saw Machine GSK4230 Automatic Metal Cutting With Hydraulic Feeding
Horizontal Band Saw Machine GSK4230 Automatic Metal Cutting With Hydraulic Feeding
Horizontal Band Saw Machine GSK4230 Automatic Metal Cutting With Hydraulic Feeding
Horizontal Band Saw Machine GSK4230 Automatic Metal Cutting With Hydraulic Feeding
Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
GSK4230
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
4800USD
Payment Terms :
T/T
Supply Ability :
2000 sets/month
Delivery Time :
15 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
sawing round material(mm) :
300
sawing square material(mm) :
300x300
Sawing Speed(m/min） :
27,45,69
Size of saw blade（mm） :
3850x27x0.9
Main motor power（kw） :
3
Cooling motor power（kw） :
0.04
Weight of machine tool（kg） :
1600
Description

GSK4230 CNC Metal Band Sawing Machine Fully Automatic Band Saw Manufacturer Sale


What makes automatic band saws stand out is their extraordinary precision and high-efficiency production capacity. They need practically no manual intervention at all, as advanced sensors and control systems enable them to auto-adjust feed rate and saw blade speed on their own, ensuring steady cutting quality – an essential factor for large-volume production. The built-in automation of these saws cuts down heavily on operator monitoring work, letting workers focus on other tasks and boosting the overall efficiency significantly.


optional configuration:

1.Saw blade cover protection

2.Protective cover power failure protection

3.Electric feedrack

4.Fast down protection

5.Protective cover power failure protection

6.Saw blade hydraulic clamping

7.Saw blade variable speed

8.Hydraulic chip conveyor


Product specification:

Name
GSK4230
Cutting range(mm)
Φ300-300×300
Saw Band Specifications (mm)
3850x27x0.9
Saw belt line speed (m/min)
27,45,69
Working clamping method
hydraulic clamping
Hydraulic motor(kw)
0.55
Cooling motor power(kw)
0.04
Main motor power (kw)
3
Dimensions (mm)
2100x1300x1650
Net weight kg (Kg)
1600

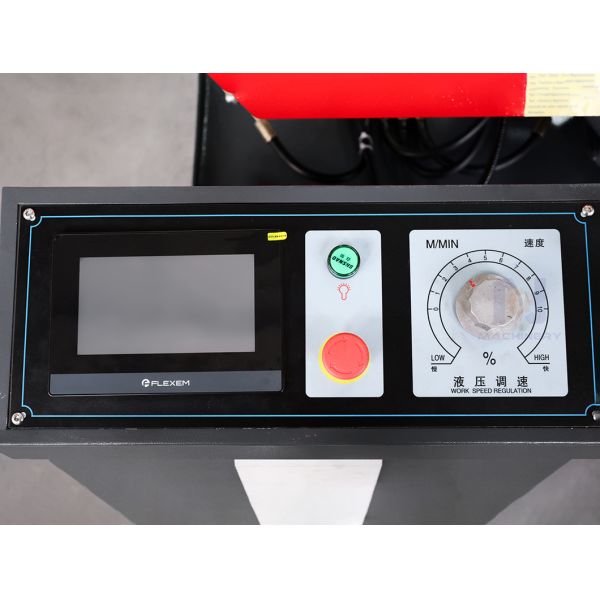

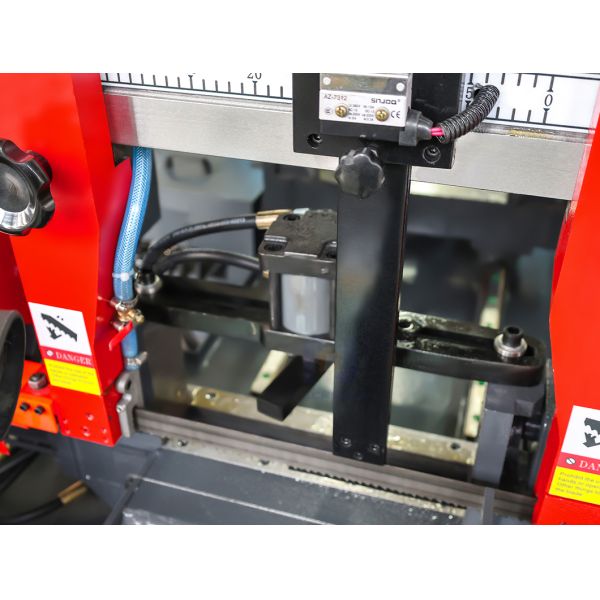

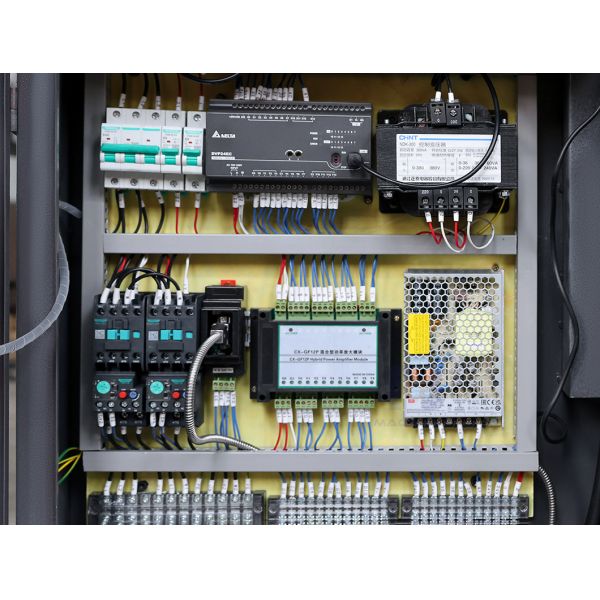

Details Display:

Horizontal Band Saw Machine GSK4230 Automatic Metal Cutting With Hydraulic Feeding

Horizontal Band Saw Machine GSK4230 Automatic Metal Cutting With Hydraulic Feeding

Horizontal Band Saw Machine GSK4230 Automatic Metal Cutting With Hydraulic Feeding

Horizontal Band Saw Machine GSK4230 Automatic Metal Cutting With Hydraulic Feeding
