Specifications
Brand Name :
Zaozhuang NO.1
Model Number :
UT260
Certification :
CE,ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
22000
Payment Terms :
T/T
Supply Ability :
1000 sets/month
Delivery Time :
20 days after getting the deposit.
Packaging Details :
Export standard wooden case or as customers' requirement
Three-axis travel(mm) :
600*450*330
Worktable (rotary table) dimensions(mm) :
φ260
Three-axis screw(mm) :
XY:φ28 Z:φ32
Tool magazine(t) :
BT30-21T
Optical machine dimensions(mm) :
1740*1800*2180
Optical machine weight(kg) :
2500
Description

UT260 High Quality 5-axis CNC Drilling and Tapping Center for Five-axis Machining


The drilling and tapping center is a kind of metal-cutting machine tool. It integrates drilling and tapping functions. With a high-speed spindle and a precise feed system, it can achieve efficient and accurate machining. It is widely used in industries like 3C and precision hardware. It offers high machining efficiency, excellent accuracy, and a high degree of automation.


The whole machine adopts marble bed;
5-axis 5-linkage with dual direct motor drive;
RTCP tool tip following function;
Oil cooler and tool setting instrument;
Z-axis overall heightening:50mm/100mm/150mm.


Product Specification:

Name Unit UT260
Three-axis travel mm 600*450*330
Worktable (rotary table) dimensions mm φ260
Maximum workpiece load and dimensions kg 60kg, maximum workpiece rotation diameter φ400

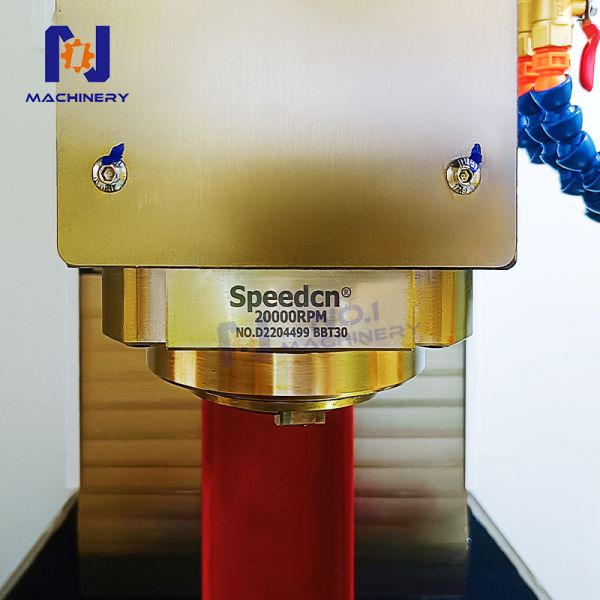

Spindle specifications
BT30-100-short nose direct type (optional TN35-φ110)
Distance from spindle end face to worktable mm 55-385mm (column heightened 150 + base heightened 50)
Three-axis screw mm XY:φ28 Z:φ32
Three-axis axis rail mm XY ball 30#, Z axis 30# roller
Tool magazine t BT30-21T
Five-axis cradle specifications
DRT260-400
A-axis travel (tilt axis) ° ±120°
A-axis maximum speed rpm 60rpm
A-axis rated torque N.m 259N.m
A-axis positioning accuracy ″ ±10″
A-axis repeat positioning accuracy ″ 5″
C-axis travel ° 360°
C-axis maximum speed rpm 386rpm
C-axis rated torque N.m 122N.m
C-axis positioning accuracy ″ ±10″
C-axis repeat positioning accuracy ″ 5″
Brake method Air brake
Optical machine dimensions mm 1740*1800*2180 (with standard cradle)
Optical machine weight kg About 2500


Product Display:

UT260 High Quality 5-axis CNC Drilling and Tapping Center for Five-axis Machining

UT260 High Quality 5-axis CNC Drilling and Tapping Center for Five-axis Machining

UT260 High Quality 5-axis CNC Drilling and Tapping Center for Five-axis Machining

UT260 High Quality 5-axis CNC Drilling and Tapping Center for Five-axis Machining
