Specifications
Place of Origin :
Shandong, China
Brand Name :
lu young
Price :
$22,500.00/sets >=1 sets
Condition :
New
Spindle Taper :
BT40
No. of Spindles :
Single
Type :
VERTICAL
Dimension(L*W*H) :
2780*2450*2700mm
Weight (T) :
5
Table Size (mm) :
1000*500
Table Travel (X) (mm) :
800
Table Travel (Y) (mm) :
500
Table Travel (Z) (mm) :
500
Positioning Accuracy (mm) :
0.006
Repeatability (X/Y/Z) (mm) :
0.003
Range of Spindle Speed(r.p.m) :
50 - 10000 r.p.m
Max. Table Load(kg) :
400 kg
Min. Time of Tool Change(s) :
6
Tool Magazine Capacity :
16, 20, 24
Key Selling Points :
Automatic
Warranty :
1 Year
Voltage :
220V/380V
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Machining Capacity :
Medium Duty
Rapid Feed Speed(mm/min) :
0 - 5 mm/min
After-sales Service Provided :
Engineers available to service machinery overseas
Machine Type :
Vertical Machine Centers
Product name :
4-axis Vertical Cnc Machining Center
Controlling Mode :
Cnc System
Product type :
VMC 850 Machining Center
Processing :
Maching Center
Spindle speed :
8000 Rpm
Application :
Metal Machining
Control system :
SIEMENS GSK FANUC (optional)
After Warranty Service :
Online support
Description
High Precision VMC850 Vertical Machining Center 5T Weight BT40 Spindle Taper
Key Specifications
Condition New
Spindle Taper BT40
Type VERTICAL
Dimensions (L×W×H) 2780×2450×2700mm
Weight 5T
Table Size 1000×500mm
Positioning Accuracy 0.006mm
Repeatability (X/Y/Z) 0.003mm
Spindle Speed Range 50-10000 r.p.m
Max. Table Load 400kg
Tool Magazine Capacity 16, 20, 24
Warranty 1 Year

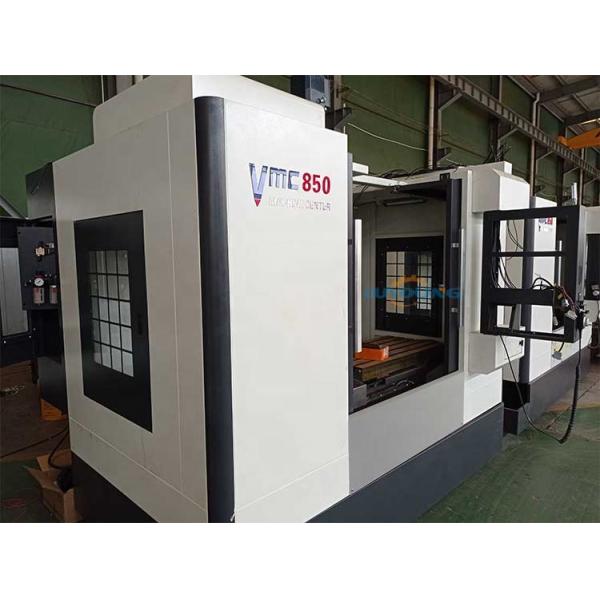

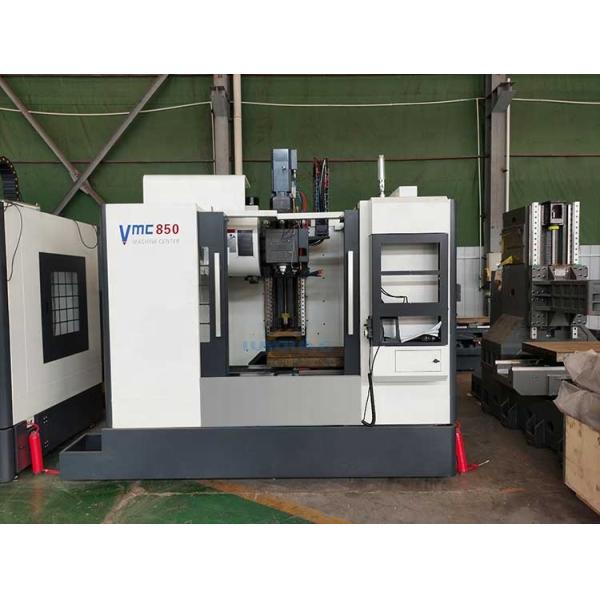

Product Overview

The VMC850 is a high precision 4-axis vertical machining center with BT40 spindle taper, designed for mold, automotive, aerospace, and general machinery manufacturing applications. This machine offers exceptional accuracy and versatility for machining, drilling, tapping, and boring operations.

High Precision VMC850 Vertical Machining Center 5T Weight BT40 Spindle Taper High Precision VMC850 Vertical Machining Center 5T Weight BT40 Spindle Taper
Technical Specifications
Worktable Size 1000×500mm
X-Axis Travel 800mm
Y-Axis Travel 550mm
Z-Axis Travel 500mm
Max Spindle Speed 8000/10000/12000 rpm
Spindle Motor Power 7.5/11kw
Rapid Feed Speed 24m/min (X,Y,Z)
Positional Accuracy ±0.005mm
Repeat Positional Accuracy ±0.003mm
Machine Weight 5500KG
Standard Configuration
High strength resin sand casting
Imported bearings for lead screw (HIWIN/NSK)
Stainless steel telescopic covers for X, Y, Z rails
Belt driven Taiwan spindle (8000RPM)
GSK25I controller system
16 tools Taiwan ATC
Centralized automatic feed lubrication system
Full enclosed cover
Optional Features
Taiwan ATC disc type (24 tools)
4th/5th axis rotary table
Siemens or Fanuc controller system
Hiwin linear guide way
Tool measurement system
Workpiece measurement system
External chip conveyor

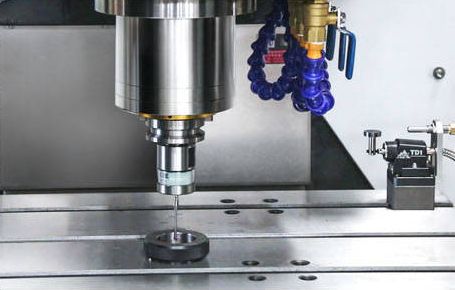

Spindle System

Standard configuration features a high-speed BT40-150 belt driven Taiwan spindle (8000RPM) with simple, compact structure offering high efficiency, low noise, low vibration, and excellent surface finishing. Optional spindles available at 10000/12000/15000 rpm.

High Precision VMC850 Vertical Machining Center 5T Weight BT40 Spindle Taper
Auto Tool Changer

Standard Taiwan hat type (16 tools) magazine offers low wear, long life, easy adjustment, and low failure rate. Optional 20/24 disc type auto tool changer available with tool change speed within 4 seconds.

High Precision VMC850 Vertical Machining Center 5T Weight BT40 Spindle Taper

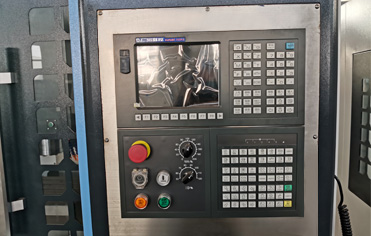

Controller System

Multiple controller options available including GSK, KND, SIEMENS, SYNTEC, and FANUC systems to meet various operational requirements.

High Precision VMC850 Vertical Machining Center 5T Weight BT40 Spindle Taper
Packing & Delivery
Port: Qingdao or Shanghai
Payment: 30% deposit, 70% before shipment
Delivery time: 30 days after deposit
Non-fumigation seaworthy plywood packaging
Steel base plate for enhanced protection
Water-proof wrapping
High Precision VMC850 Vertical Machining Center 5T Weight BT40 Spindle Taper High Precision VMC850 Vertical Machining Center 5T Weight BT40 Spindle Taper
After-Sales Service
Professional technical service team
Free training in factory
Overseas service available
24/7 online support
Free replacement parts within 12 months warranty
Frequently Asked Questions
What's the payment term?

Standard payment terms are 30% deposit by T/T in advance, with 70% balance paid before shipment. We also accept irrevocable letter of credit at sight, D/P or D/A.

What's the quality warranty?

We provide a 1-year warranty on all machines. For any defective parts under normal operation, we will replace them immediately at no cost.

What's the delivery time?

Delivery typically occurs within 1 month after receiving the 30% deposit, depending on product configuration.
