Specifications
Place of Origin :
China
Brand Name :
luyoung
Model Number :
vmc855
Packaging Details :
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of coll
Supply Ability :
60 Set/Sets per Month
Price :
$28,000.00/sets 1-1 sets
Type :
VERTICAL
Range of Spindle Speed(r.p.m) :
50 - 8000
Number of Axes :
3
Machining Capacity :
Medium Duty
Spindle Taper :
BT40
Table Travel (X) (mm) :
800 mm
Table Travel (Y) (mm) :
550 mm
Table Travel (Z) (mm) :
550 mm
Positioning Accuracy (mm) :
0.001
Repeatability (X/Y/Z) (mm) :
0.003
Voltage :
220v/380v
Dimension(L*W*H) :
2700*2250*2700mm
Key Selling Points :
High-accuracy
Weight (KG) :
5000
Warranty :
1 Year
Max. Table Load(kg) :
600 kg
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
CNC
After-sales Service Provided :
Overseas third-party support available
Machine Type :
Vertical high speed metal 5axis cnc milling machine with 24 ATC
Table size :
1050*500mm
Spindle Speed :
8000rpm
Precision :
0.01mm
Max, table load :
600kg
Distance of spindle head to table :
105-755mm
Rapid feed of X/Y/Z :
24m/min
Condition :
New
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Construction works
Showroom Location :
None
Core Components :
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
Port :
Qingdao or shanghai
Description
VMC855 High Speed 5-axis CNC Milling Machine with 24 ATC Max Table Load of 600kg
VMC855 High Speed 5axis CNC Milling Machine With 24 ATC Max Table Load Of 600kg VMC855 High Speed 5axis CNC Milling Machine With 24 ATC Max Table Load Of 600kg VMC855 High Speed 5axis CNC Milling Machine With 24 ATC Max Table Load Of 600kg
Product Overview

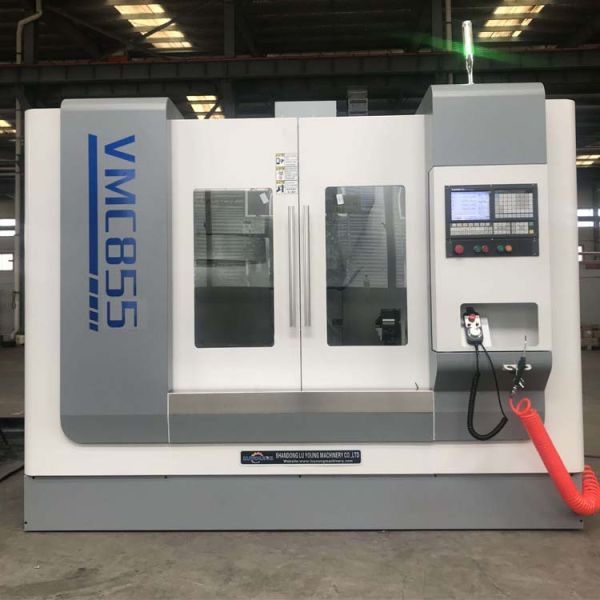

The VMC855 Vertical High Speed 5-axis CNC Milling Machine with 24 ATC is designed for precision mechanical processing and mold making. This versatile machine handles everything from rough machining to finish machining, capable of performing multiple operations including milling, drilling, tapping, and boring.

Technical Specifications
Attribute Value
Type VERTICAL
Range of Spindle Speed (r.p.m) 50 - 8000
Number of Axes 5
Spindle Taper BT40
Table Travel (X/Y/Z) (mm) 800/550/550
Positioning Accuracy (mm) 0.001
Repeatability (X/Y/Z) (mm) 0.003
Max. Table Load (kg) 600
Table Size 1050×500mm
Rapid Feed (X/Y/Z) 24m/min
Machine Weight 5000KG
Overall Dimensions (L×W×H) 2700×2250×2700mm
VMC855 High Speed 5axis CNC Milling Machine With 24 ATC Max Table Load Of 600kg VMC855 High Speed 5axis CNC Milling Machine With 24 ATC Max Table Load Of 600kg VMC855 High Speed 5axis CNC Milling Machine With 24 ATC Max Table Load Of 600kg
Key Features
  • High quality resin sand construction for stability
  • Taiwan spindle for reliable performance
  • Taiwan ball screw and locking nut for precision
  • Taiwan linear railway for smooth operation
  • Japanese NSK bearings and German R+W coupling
  • Automatic lubrication system for maintenance efficiency
  • Optional chip conveyor available
Standard Configuration
  • GSK25i CNC Controller
  • BT40 8000 rpm spindle unit

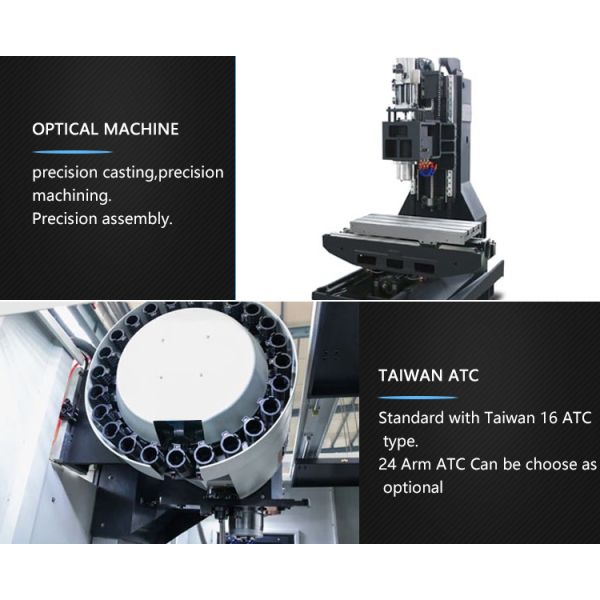

  • 16 Auto Tool Changer
  • Taiwan Hiwin linear guideway
  • Taiwan Hiwin ball screw
  • Work Lamp
  • Automatic Central Lubrication System
  • Full Enclosure Machine Guard
Optional Configurations

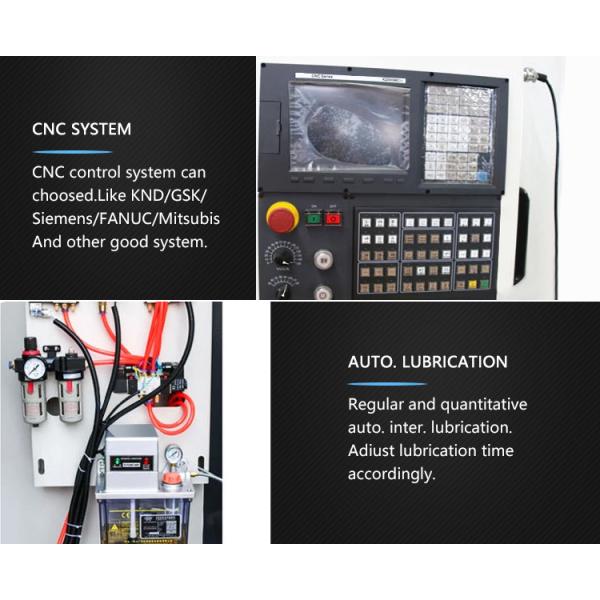

  • GSK/KND/Siemens/Fanuc/Mitsubishi controllers

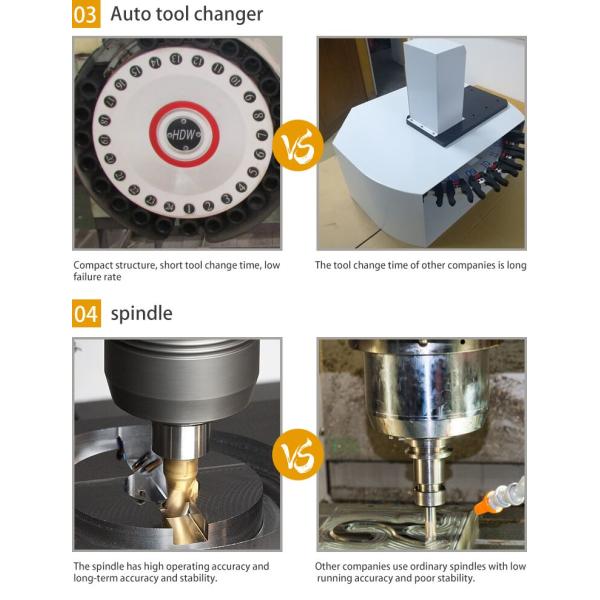

  • Taiwan arm type ATC (24 tools)
  • Automatic chip conveyor

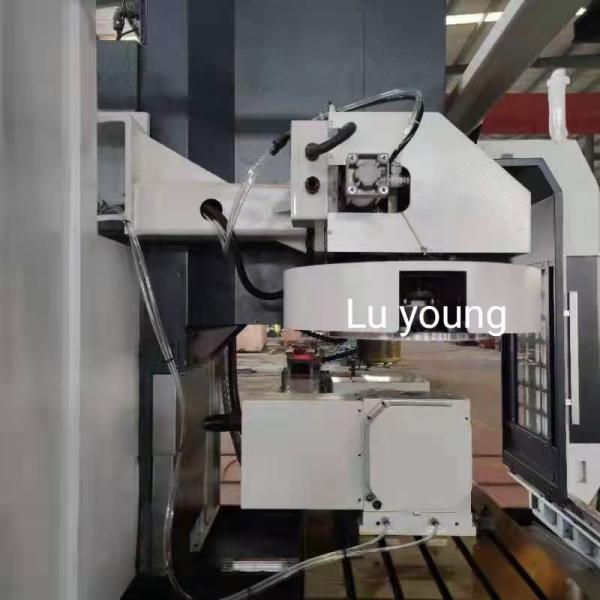

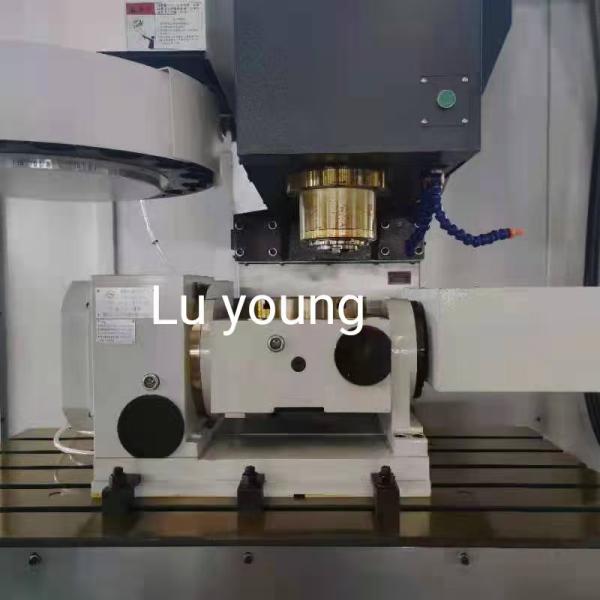

  • 4th axis and 5th axis
  • Spindle oil coolant/center to water
  • Renishaw probe for workpiece and tool
VMC855 High Speed 5axis CNC Milling Machine With 24 ATC Max Table Load Of 600kg VMC855 High Speed 5axis CNC Milling Machine With 24 ATC Max Table Load Of 600kg
Machine Advantages

The VMC855 Vertical Machining Center offers exceptional precision for complex parts including plates, molds, and small shells. Its 5-axis capability allows for processing of complex spatial surfaces, making it ideal for impeller rotors, molds, and cutting tools.

After-Sales Service
  • Comprehensive machine installation and operation training
  • Overseas engineering support available
  • Tools and accessories provided
  • 1-year warranty on machine, 3 years on GSK components
VMC855 High Speed 5axis CNC Milling Machine With 24 ATC Max Table Load Of 600kg
Company Information

Shandong Luyoung Machinery Co., Ltd. is a professional manufacturer specializing in CNC machines. We are committed to quality control and customer service, offering a range of products including CNC lathes, milling machines, and machining centers. All our products meet CE and SGS certification standards.

VMC855 High Speed 5axis CNC Milling Machine With 24 ATC Max Table Load Of 600kg VMC855 High Speed 5axis CNC Milling Machine With 24 ATC Max Table Load Of 600kg VMC855 High Speed 5axis CNC Milling Machine With 24 ATC Max Table Load Of 600kg
Frequently Asked Questions
How can I choose the most suitable machine?

Please provide your specifications or product drawings, and we will recommend the best model for your needs.

What are your main products?

We specialize in CNC Lathe Machines, CNC Milling Machines, Vertical Machining Centers, and various other industrial machines.

What are your trade terms?

We accept FOB, CFR, and CIF terms. Payment options include T/T (30% deposit, 70% before shipment) or irrevocable LC at sight.
