Specifications
Brand Name :
Luyoung
Model Number :
VMC1270
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
52000-60000
Payment Terms :
T/T, , L/C, Western Union
Supply Ability :
100sets
Delivery Time :
45 working days
Packaging Details :
Fumigation-free plywood
Description

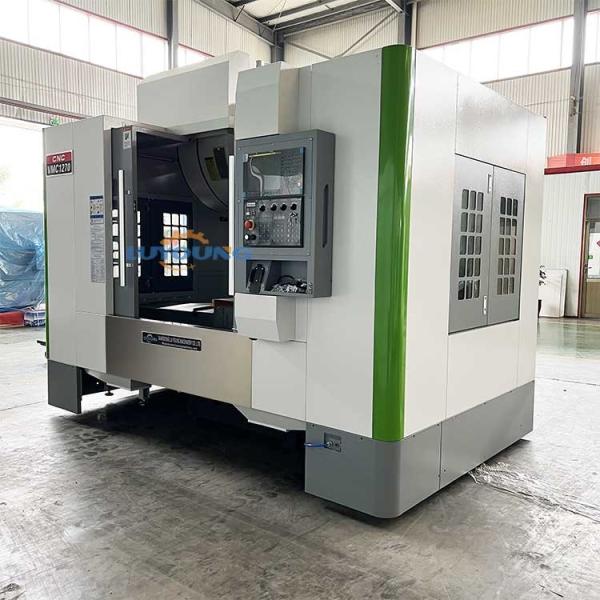

VMC1270 CNC Milling Machine 5 Axis Vertical Machining Center BT40 8000/10000/12000 RPM
Vmc1270 Cnc Milling Machine 5 Axis Vertical Machining Center Bt40 8000 10000 12000rpm Vmc1270 Cnc Milling Machine 5 Axis Vertical Machining Center Bt40 8000 10000 12000rpm
Technical Specifications
Size of worktable (length×width) 1300×700 mm
T slot 7-18×100 mm
Max loading weight on worktable 900 KG
X-Axis travel 1200 mm
Y-Axis travel 700 mm
Z-Axis travel 700 mm
Distance between spindle nose and table 120-720 mm
Distance between spindle center and column 835 mm
Spindle taper BT40
Max. spindle speed 8000/10000/12000 rpm
Spindle motor power 11-15 Kw
Rapid feeding speed: X,Y,Z axis 24/24/24 m/min (linear guideway)
Fast cutting speed 10 m/min
Positional accuracy ±0.005 mm
Repeat positional accuracy ±0.003 mm
Auto Tool changer type 24 arm type auto tool change
X/Y/Z linear guide way φ4012
Max.tool weight 7500 KG
Tool changing time (tool-to-tool) 2.5 sec
Air pressure 0.6 Mpa
Machine weight 7500 KG
Overall size 3340×2800×2700 mm
Voltage 380v 3 phase
Key Features
Casting Structure
HT300 resin sand wear-resistant castings provide high density and excellent wear resistance. The saddle features a double-layer casting structure with large A-shaped column design for superior rigidity and cutting performance.
High Performance Spindle
Standard high speed BT40-150 belt driven Taiwan spindle (8000 RPM) with optional 10000/12000/15000 RPM configurations. Features simple, compact structure with high efficiency, low noise and vibration, delivering exceptional precision and surface finishing.
Precision Screw System
Standard hardened guide way with optional Taiwan Hiwin linear guide way. Features imported JIS-C3 grinding grade pre-stretched nut screw for backlash elimination. Heat treated for excellent rigidity and wear resistance, ensuring high operational precision.
Auto Tool Changer
Taiwan hat type (24 tool) magazine with low wear, long lifespan, easy adjustment and minimal failure rate. Optional Taiwan 24/32 disc type Auto tool changer available.
Axis Configuration Options
Flexible 3/4/5 axis configurations available to meet specific machining requirements. Vmc1270 Cnc Milling Machine 5 Axis Vertical Machining Center Bt40 8000 10000 12000rpm

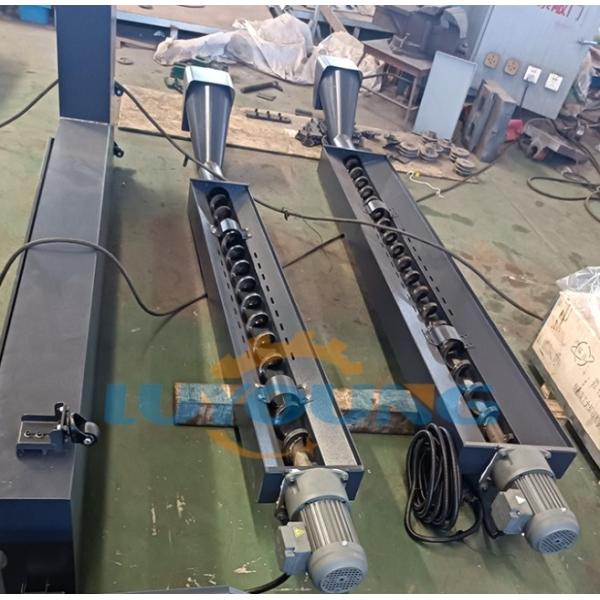

Chip Conveyor Options
Available with either chain type or spiral chip conveyor to enhance production efficiency. Vmc1270 Cnc Milling Machine 5 Axis Vertical Machining Center Bt40 8000 10000 12000rpm Vmc1270 Cnc Milling Machine 5 Axis Vertical Machining Center Bt40 8000 10000 12000rpm
Controller System Options
Multiple controller system options available including GSK, KND, SIEMENS, SYNTEC, and FANUC.
