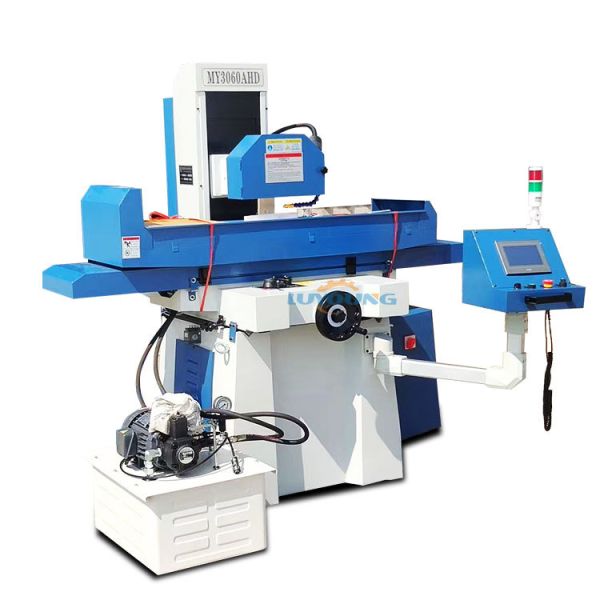

Cnc Surfacing Grinding Machine MY3060AHD Servo Drive And Auto Lubrication
Cnc Surfacing Grinding Machine MY3060AHD Servo Drive And Auto Lubrication
Cnc Surfacing Grinding Machine MY3060AHD Servo Drive And Auto Lubrication
Cnc Surfacing Grinding Machine MY3060AHD Servo Drive And Auto Lubrication
Cnc Surfacing Grinding Machine MY3060AHD Servo Drive And Auto Lubrication
Cnc Surfacing Grinding Machine MY3060AHD Servo Drive And Auto Lubrication
Cnc Surfacing Grinding Machine MY3060AHD Servo Drive And Auto Lubrication
Cnc Surfacing Grinding Machine MY3060AHD Servo Drive And Auto Lubrication
Cnc Surfacing Grinding Machine MY3060AHD Servo Drive And Auto Lubrication
Cnc Surfacing Grinding Machine MY3060AHD Servo Drive And Auto Lubrication
Specifications
Brand Name :
Luyoung
Model Number :
MY3060AHD
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD20000-USD29000
Payment Terms :
L/C,T/T
Delivery Time :
45 working days
Packaging Details :
non-fumigation wooden box
grinding workpiece :
700x300x300
Workbench slide :
pair V rail
Maximum load of workbench :
200kg
Workbench T Groove :
14x1
Spindle motor :
4KW
Description
CNC Surfacing Grinding Machine MY3060AHD Servo Drive And Auto Lubrication
Key Specifications
Grinding Workpiece 700x300x300 mm
Workbench Slide Pair V Rail
Maximum Load of Workbench 200kg
Workbench T Groove 14x1 mm
Spindle Motor 4KW
Technical Specifications
Maximum size of grinding workpiece 700×300×300 mm
Maximum longitudinal movement of the worktable 750 mm
Maximum lateral movement of the worktable 300 mm
Maximum distance from worktable to spindle center 550 mm
Workbench surface size 600×300 mm
Table speed 3-20 m/min
Minimum feed amount (automatic feed) 0.001 mm
Grinding wheel size 350×30×127 mm
Spindle speed (50 Hz) 1450 rpm
Parallelism of machined surface 300:0.005 mm
Surface roughness Ra 0.32 μm
Machine tool dimensions 1960×1480×1850 mm
Weight (gross/net) 1.6/1.5 T
Cnc Surfacing Grinding Machine MY3060AHD Servo Drive And Auto Lubrication
Advanced Configuration Features
  • X Axis: Left-right movement with V-flat guide rail, hydraulic cylinder drive (8-25 m/min speed)
  • Y Axis: Front-rear movement with double V guide rail, ball screw transmission with servo motor
  • Z Axis: Up-down movement with square rail, ball screw drive with Siemens 750W servo (0.005mm positioning accuracy)
  • C Axis: 3kW grinding spindle motor (1450 rpm, 0.005mm runout)
  • Optional 300×600 electromagnetic chuck for workbench
  • High-pressure water pump and electronic oil supply system
  • Exposed waste oil tank for easy maintenance
