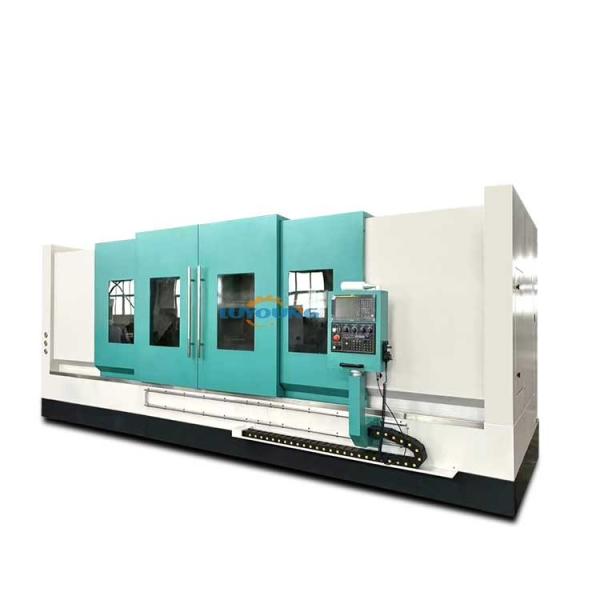

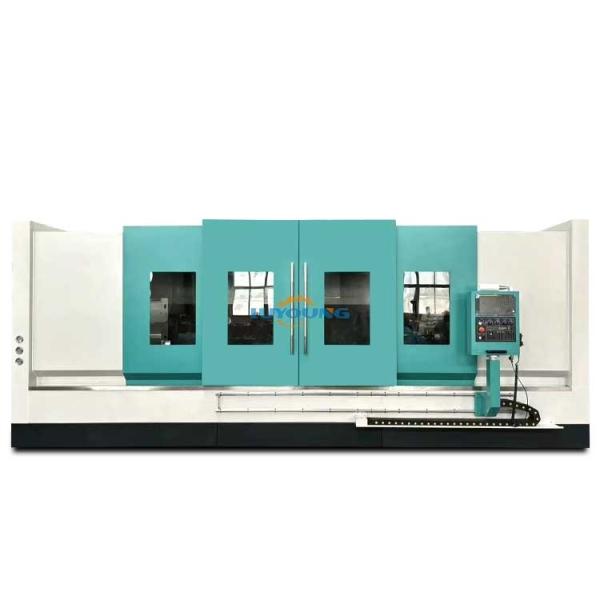

TCK600 3000mm Slant Bed Machine High Precision And Long Turning Length
TCK600 3000mm Slant Bed Machine High Precision And Long Turning Length
TCK600 3000mm Slant Bed Machine High Precision And Long Turning Length
TCK600 3000mm Slant Bed Machine High Precision And Long Turning Length
Specifications
Brand Name :
Luyoung
Model Number :
TCK600
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD69999-89999
Supply Ability :
100sets
Delivery Time :
45 working days
Packaging Details :
Fumigation-free plywood
Tool Turret :
12 Station
Bar Diameter :
80
Core Components :
Bearing, Gear
Max Turning Length :
3000mm
Key Words :
Slant Bed CNC Lathe Machine
Weight :
11000
Spindle Motor Power :
11/15KW
Repeatability Accuracy :
±0.003mm ±0.01mm
Key Selling Points :
High-accuracy
Tailstock Max Travel :
2800
Axis Movement :
X/Z axis
CNC power :
Three-phase 380V 50Hz
Description
TCK600-3000mm Slant Bed Machine - High Precision Long Turning Length CNC Lathe
Key Features
  • 12-station tool turret for versatile machining operations
  • 3000mm maximum turning length for large workpieces
  • ±0.003mm repeatability accuracy for precision machining
  • 15KW servo spindle motor providing powerful cutting performance
  • Inclined bed design (30° or 45°) offering superior rigidity and stability
  • Linear guide rails and ball screws for high precision movement
  • Automated lubrication system for consistent performance
Technical Specifications
Specification Value
Max swing diameter over bed Φ600mm
Max cutting diameter Φ320mm
Max cutting length 3000mm
Spindle motor power 15KW
Spindle speed range 5-3000 rpm
X/Z axis travel 280mm/3000mm
X/Z axis rapid feed 18 m/min
Reposition accuracy ±0.003mm/±0.01mm
Workpiece accuracy IT6-IT7
Surface roughness ≤Ra1.6μm (non-ferrous metals)
Machine weight 12000kg
Power requirements Three-phase 380V 50Hz
Advanced Design Features

The TCK600-3000mm slant bed CNC lathe features a high-quality cast iron resin sand molding bed with compact stiff-bone plate structure for excellent rigidity and shock resistance. The inclined bed design provides superior bending torque resistance compared to flat bed machines.

The machine incorporates precision pre-stretched ball screws connected directly to servo motors through elastic couplings, along with high-rigidity linear guide rails. A computerized automatic lubrication system ensures consistent performance and longevity of moving components.

Versatile Machining Capabilities

This CNC lathe can process inner/outer circles, steps, conical surfaces, spherical surfaces, grooves, various threads, and complex curved surfaces. The servo spindle and power head enable 360-degree arbitrary division and positioning, with side end face drilling, tapping, and milling functions.

Automation Options

The machine can be optionally equipped with hydraulic chuck and tailstock for automatic loading/unloading. When combined with an industrial manipulator, it can complete all cutting processes and automatic chip removal efficiently.

Industry Applications

Ideal for precision machining in industries including IT, precision instruments, aerospace, and military applications where complex, precise small to medium-sized rotating components are required.

TCK600 3000mm Slant Bed Machine High Precision And Long Turning Length TCK600 3000mm Slant Bed Machine High Precision And Long Turning Length TCK600 3000mm Slant Bed Machine High Precision And Long Turning Length

Note: Spindle speeds listed represent standard configuration ranges. When using other chuck or tooling configurations, please observe maximum allowable speeds. Maximum torque is constant, but achievable cutting parameters decrease with larger diameters - adjust machining parameters accordingly.
