Specifications
Brand Name :
Luyoung
Model Number :
TCK600
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD172000-USD180000
Supply Ability :
100sets
Delivery Time :
45 working days
Packaging Details :
Fumigation-free plywood
Tool Turret :
12 Station
Bar Diameter :
70
Core Components :
Bearing, Gear
Max Turning Length :
3000mm
Key Words :
Slant Bed CNC Lathe Machine
Weight :
12000
Spindle Motor Power :
15KW
Repeatability Accuracy :
±0.003mm ±0.01mm
Key Selling Points :
High-accuracy
Tailstock Max Travel :
2700
Axis Movement :
X/Z axis
CNC power :
Three-phase 380V 50Hz
Description

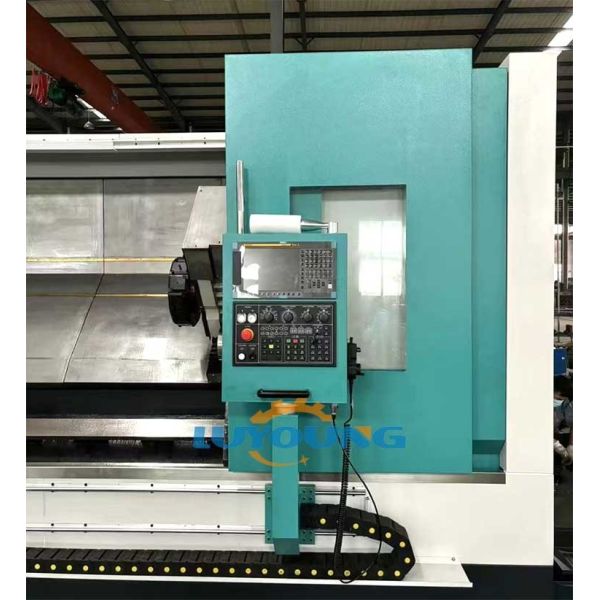

Big Size TCK600-3000mm Slant Bed Machine With Driven Turret Y Axis
Big Size Tck600-3000mm Slant Bed Machine With Driven Turret Y Axis Big Size Tck600-3000mm Slant Bed Machine With Driven Turret Y Axis Big Size Tck600-3000mm Slant Bed Machine With Driven Turret Y Axis Big Size Tck600-3000mm Slant Bed Machine With Driven Turret Y Axis Big Size Tck600-3000mm Slant Bed Machine With Driven Turret Y Axis
High-Precision CNC Slant Bed Lathe Machine

The TCK600-3000mm is a high-performance CNC horizontal lathe featuring X and Z axis control with a 45° inclined bed design. This robust machine offers exceptional precision (±0.003mm repeatability), high rigidity, and efficient operation for complex turning applications.

Key Features
  • 12-station servo turret for multi-operation capability (turning, drilling, boring, expanding, reaming)
  • 3000mm maximum turning length with 2700mm tailstock travel
  • 15KW spindle motor with 5-3000 rpm speed range
  • High-strength HT300 cast iron bed with 45° inclined design for stability
  • P-grade linear guides on X/Z axes for precision movement
  • C3 class ball screws for optimal load distribution and accuracy
  • Direct drive structure minimizes transmission chain for better responsiveness
  • Hydraulic tailstock with automatic sleeve extension/retraction
Technical Specifications
Specification Value
Max swing diameter over bed Φ600mm
Max cutting diameter Φ320mm
Max cutting length 3000mm
X/Z axis travel 280mm/3000mm
Spindle bore diameter Φ86mm
Bar through-hole diameter Φ70mm
Repeat positioning accuracy (X/Z) ±0.003mm/±0.01mm
Workpiece machining accuracy IT6-IT7
Surface roughness (non-ferrous metals) ≤Ra1.6μm
Machine weight 12000kg
Power requirements Three-phase 380V 50Hz
Structural Advantages
Rigid Construction

HT300 high-grade resin sand casting with tubular rib structure enhances resistance to bending and twisting. Components undergo two aging treatments for superior stability and vibration reduction.

Efficient Chip Management

45° inclined bed design with spacious chip removal area and full protective covers ensures smooth chip discharge and operator convenience.

Precision Spindle System

Features high-quality domestic bearings with NN double-row cylindrical roller bearings and bidirectional thrust angular contact ball bearings. Heat dissipation design maintains low operating temperatures.

Versatile Applications

Ideal for complex, high-precision components in industries including aerospace, military, precision instruments, and IT. Suitable for small to medium batch production and automated production lines.

Note: Spindle speeds represent standard configuration range. Maximum torque is constant torque - cutting parameters should be adjusted according to workpiece size. Please consider chuck/tooling maximum speeds when selecting configurations.
