TCK56 High Precision Metal Slant Cnc Lathe Machine 750mm 1000mm 1500mm
TCK56 High Precision Metal Slant Cnc Lathe Machine 750mm 1000mm 1500mm
TCK56 High Precision Metal Slant Cnc Lathe Machine 750mm 1000mm 1500mm
TCK56 High Precision Metal Slant Cnc Lathe Machine 750mm 1000mm 1500mm
Specifications
Brand Name :
luyoung
Model Number :
tck56
Place of Origin :
Shandong, China
MOQ :
1
Price :
$20000-$35000/sets >=1 sets
Payment Terms :
T/T, L/C
Supply Ability :
100sets
Delivery Time :
30 working days
Packaging Details :
Fumigation-free plywood
Type :
Horizontal
Max. Length of Workpiece (mm) :
750/1000/1500mm
Structure :
Slant Bed Lathe
Machining Capacity :
Medium Duty
No. of Spindles :
Single
Number of Axes :
2/3/4/5
Positioning Accuracy (mm) :
±0.006
Repeatability (X/Y/Z) (mm) :
±0.015
Dimension(L*W*H) :
3650x2060x2100mm
Voltage :
380v 3 phase
CNC Control System :
GSK/Siemens/Fanuc
Tool Post Stations :
12
Warranty :
1 Year
Key Selling Points :
High Safety Level
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Range of Spindle Speed(r.p.m) :
3000 - 3500 r.p.m
Cutting torque :
15 N.m
CNC or Not :
CNC
Automatic Grade :
Automatic
Lathe bed straucture :
3 Jaw Manual Chuck
Spindle nose :
A2-8
Description
TCK56 High Precision Metal Slant CNC Lathe Machine
Key Specifications
Type Horizontal
Max. Length of Workpiece 750/1000/1500mm
Structure Slant Bed Lathe
Positioning Accuracy ±0.006mm
Repeatability (X/Y/Z) ±0.015mm
Spindle Speed Range 3000 - 3500 r.p.m
CNC Control System GSK/Siemens/Fanuc
Warranty 1 Year
TCK56 High Precision Metal Slant Cnc Lathe Machine 750mm 1000mm 1500mm
Technical Specifications
Model TCK56*750 (with Y axis)
Max. Swing Diameter Φ650mm
Max. Cutting Diameter Φ540mm
X Axis Travel 280mm
Z Axis Travel 750/1000mm
Spindle Bore Φ66mm
Main Motor Power 11kW
Machine Weight 4200/4500kg
Product Features
  • High Rigidity Structure: Box-shaped bed made from high-strength cast iron (HT-300) with one-piece casting technology
  • 30-degree Slant Bed: Facilitates easy chip removal with separate coolant tank

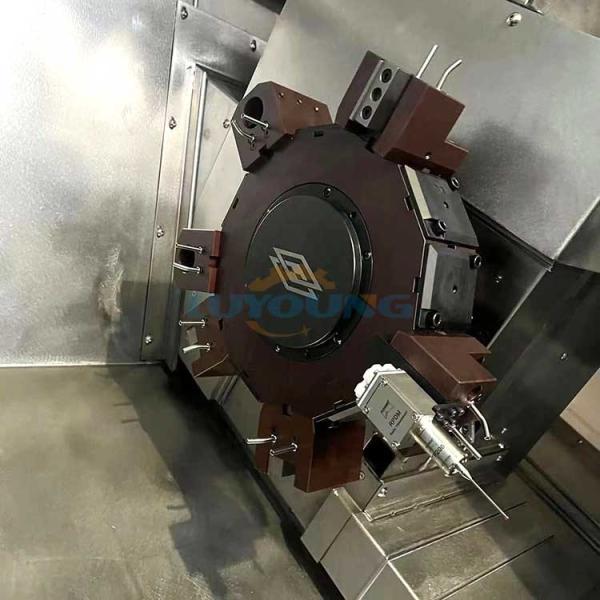

  • 12-station Servo Hydraulic Tool Holder: Rapid tool change (0.25 seconds) with 0.003mm repeatability
  • High-performance Spindle: 11kW AC servo motor with closed oil grease lubrication system
  • Precision Linear Guides: Taiwan Hiwin large-diameter, high-precision (C3 grade) linear guides
  • Hydraulic System: Imported components control variable pump system for energy efficiency
  • Centralized Lubrication: Automatic forced lubrication for ball screws and linear rails
TCK56 High Precision Metal Slant Cnc Lathe Machine 750mm 1000mm 1500mm TCK56 High Precision Metal Slant Cnc Lathe Machine 750mm 1000mm 1500mm
Frequently Asked Questions
Can the TCK56 CNC Lathe be customized?

Yes, we can redesign and produce the machine to meet your specific requirements if our standard configuration doesn't suit your needs.

What is the warranty period?

The warranty period is one year. We provide free replacement for damaged parts within this period, along with free online or factory training. Overseas paid installation and commissioning services are available.

How can I get a quote?

Please provide the model you need or send us workpiece drawings. We will recommend the most suitable products and provide the best offer within 24 hours.
