Specifications
Brand Name :
luyoung
Model Number :
tck630
Place of Origin :
Shandong, China
Price :
$35,000.00/sets >=1 sets
Payment Terms :
L/C, T/T
Supply Ability :
30/SET
Delivery Time :
45 working days
Packaging Details :
non-fumigation wooden box
Max. Length of Workpiece (mm) :
500
Structure :
Slant Bed Lathe
Machining Capacity :
Medium Duty
Width of bed (mm) :
600 mm
Spindle Motor Power(kW) :
11
No. of Spindles :
Single
Travel (X Axis)(mm) :
340 mm
Travel (Z Axis)(mm) :
1000 mm
Positioning Accuracy (mm) :
±0.006
Repeatability (X/Y/Z) (mm) :
±0.015
Voltage :
380v 3 phase
Tool Post Stations :
12
Weight (KG) :
5700
Key Selling Points :
High Safety Level
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
CNC or Not :
CNC
Automatic Grade :
Automatic
Max.swing over bed :
630mm
Cross slide length :
1000mm
Lathe bed straucture :
3 Jaw Manual Chuck
Control system :
SIEMENS GSK FANUC (optional)
Spindle nose :
A2-8
Spindle bore :
87mm
Condition :
New
Toolpost Brand :
Hongda
Applicable Industries :
Machinery Repair Shops, Manufacturing Plant, Retail
Showroom Location :
None
Core Components :
Bearing, Gear
Max. Spindle Speed (r.p.m) :
3000 r.p.m
Spindle Bore(mm) :
88
Max. Turned Length (mm) :
500
Description
TCK630 1000mm Metal Turning Center Flat Bed CNC Lathe Machine With Driven Turret
Key Features
45° integral inclined lathe bed structure for stability and precision

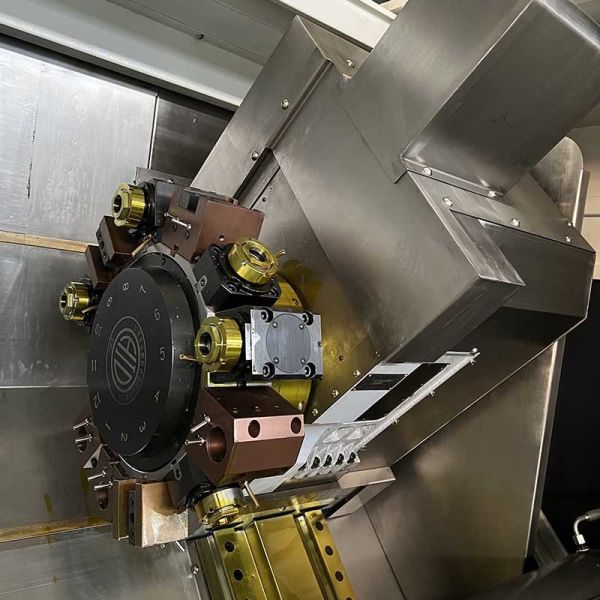

12 station driven turret for versatile machining operations
High precision with positioning accuracy of ±0.006mm
Powerful 11kW spindle motor with 50-3000 R/min speed range
Large machining capacity with 630mm max swing over bed
Compatible with SIEMENS, GSK, and FANUC control systems
Automatic CNC operation for efficient production
Technical Specifications
Specification Value
Max. Swing Over Bed 630mm
Max. Processing Length 460mm
Cross Slide Length 1000mm
Spindle Bore 87mm
Spindle Speed Range 50-3000 R/min
X Axis Travel 340mm
Z Axis Travel 1000mm
Positioning Accuracy ±0.006mm
Repositioning Accuracy ±0.015mm
Machine Dimensions (L×W×H) 3650×1870×2100mm
Net Weight 5700kg
Product Description

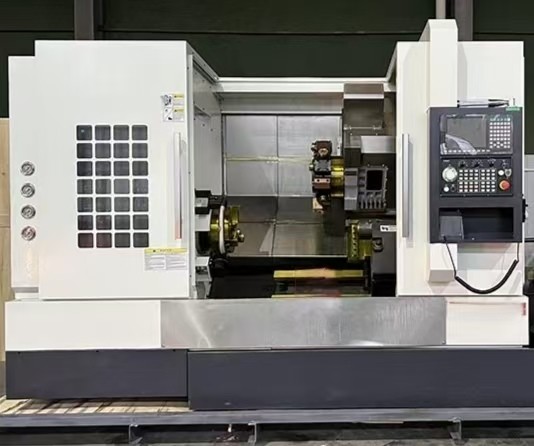

The TCK630 CNC lathe is a semi-closed slant-bed turning and milling machine with X, Y, Z and C axes servo control. Its compact and rational structure enables efficient machining of various materials including shafts and discs. The machine features a servo-driven spindle (C axis) capable of turning outer circles, end surfaces, and threads, as well as performing surface milling and drilling in radial and axial directions.
Designed for medium duty machining, this CNC lathe is particularly suitable for high-efficiency processing of small parts. The 12-station driven turret provides excellent versatility for complex machining operations, making it ideal for machinery repair shops, manufacturing plants, and retail applications.
Product Images
TCK630 1000mm Metal Turning Center Flat Bed Cnc Lathe Machine With Driven Turret TCK630 1000mm Metal Turning Center Flat Bed Cnc Lathe Machine With Driven Turret TCK630 1000mm Metal Turning Center Flat Bed Cnc Lathe Machine With Driven Turret TCK630 1000mm Metal Turning Center Flat Bed Cnc Lathe Machine With Driven Turret
Additional Information
Warranty: 1 year for core components
Machinery test report provided
Video outgoing inspection available
High safety level design
Tool post brand: Hongda
Voltage requirement: 380V 3 phase
