High Quality YAG Laser Welding Machine Stainless Steel Mutiple Aoolication
High Quality YAG Laser Welding Machine Stainless Steel Mutiple Aoolication
High Quality YAG Laser Welding Machine Stainless Steel Mutiple Aoolication
High Quality YAG Laser Welding Machine Stainless Steel Mutiple Aoolication
Specifications
Brand Name :
HaiLei Laser
Model Number :
HL-YZ-200W/400W
Place of Origin :
China
MOQ :
1
Price :
negotiable
Supply Ability :
1500 units per month
Delivery Time :
15 working days
Packaging Details :
Packed with strong wooden cases
Cooling Method :
forced air cooling
Power Input :
AC220V±10%，50/60Hz
Fiber Length :
5M, 10M, 15M(optional)
Power Stability :
<2% RMS
Lasertype :
Quasi-Continuous Wave (QCW) Fiber Laser
Applications :
Welding, Cutting, Marking, Medical
Laser Mode :
multimode
Fibercorediameter :
50 µm to 100 µm
Powerstability :
±1%
Beam Quality :
M2<1.3
Polarization Ratio :
>100:1
Working Temperature :
0~35ºC
Dimensions :
600 mm x 400 mm x 150 mm
Visual System :
CCD visual system
Description

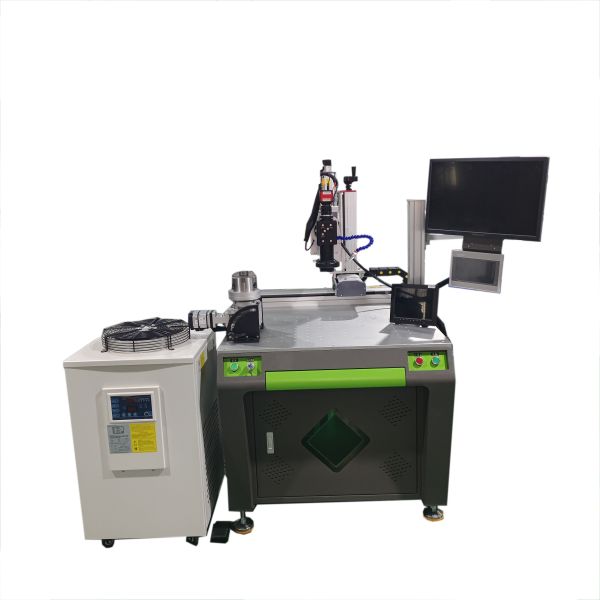

High Quality YAG Laser Welding Machine for Stainless Steel Multiple Applications
1064NM YAG Laser Automatic Welding Machine 220V/380V YAG Laser Welding Machine
Key Features
  • High Precision: Small focal spot allows for micron-level positioning and welding
  • Dissimilar Metal Joining: Effectively handles materials with high reflectivity or different melting points (e.g., Aluminum, Copper, Stainless Steel)
  • Non-contact Processing: No mechanical stress is applied, preventing deformation of delicate parts
  • High Controllability: Can be integrated with fiber optics and robotic arms for automated production lines
Applications
  • Electronics and Electrical Engineering
  • Medical Device Industry
  • Automotive Industry
  • Jewelry and Watchmaking
Product Specifications
Model number HL-YZ-200W HL-YZ-400W
Maximum number of laser powers 200W 400W
Light Wave length (NM) 1064 1064
Pulse energy 90J 150J
Laser Welding Frequency (HZ) 1-50,1-100 1-50,1-100
Laser welding depth (mm) 0.1-2.5 0.1-3.5
Pulse width (ms) 0.5-20 0.5-20
Spot size (mm) Φ0.2-2 Φ0.2-2
Power requirements 9kw single-phase power 220VAC, 50HZ 35A above 12kw three-phase power 380VAC, 50HZ 40A
Rated power 4KW 6.5KW
Control system PLC/PC PLC/PC
Positioning system Red light indication/CCD Red light indication/CCD
Special requirements customizable customizable
Standard table stroke 300*200*200 or customizable 300*200*200 or customizable
High Quality YAG Laser Welding Machine Stainless Steel Mutiple Aoolication High Quality YAG Laser Welding Machine Stainless Steel Mutiple Aoolication
Professional Certifications and Honors
High Quality YAG Laser Welding Machine Stainless Steel Mutiple Aoolication High Quality YAG Laser Welding Machine Stainless Steel Mutiple Aoolication
Please note: All photos on this site are real. Due to changes in lighting, and display resolution, the image you see may have some degree of chromatic aberration. HailLei Laser is a professional laser equipment manufacturer with 18 years of history. Our products and equipment are updated and upgraded every year.
If you are interested in this product and want to know more details, please contact us online or email us. We will have professional engineers to serve you. Thank you for your time.
