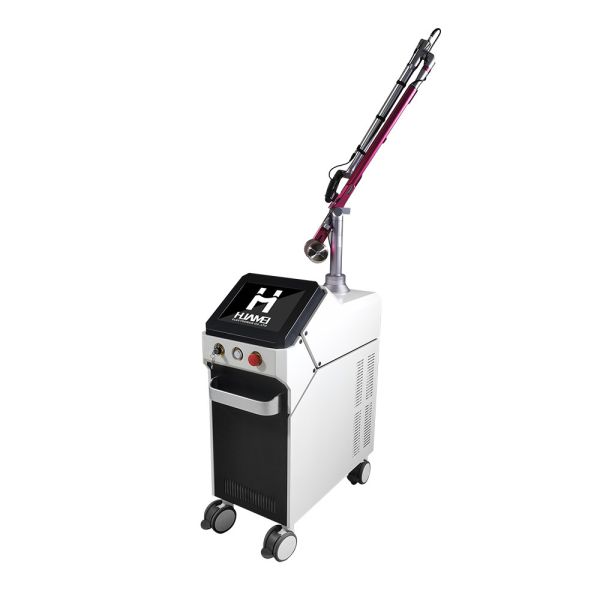

| Laser type | EO Q-switch Nd:YAG laser | | | | |||
| Wavelength | 1064/532nm | | | | |||
| Operate mode | Q-switched mode & SPT mode | | | | |||
| Beam profile | Flat-top mode | | | | |||
| Pulse width | ≤6ns (Q-switched mode) 300us (SPT mode) | | | | |||
| Pulse energy | | Q-switched | Q-switched | SPT mode | |||
| | | 1064nm | 532nm | 1064nm long pulse | |||
| | Double pulse | 100mJ-1200mJ | 50mJ-480mJ | 100mJ-2000mJ | |||
| | Single pulse | 100mJ-800mJ | 50mJ-320mJ | 100mJ-1000mJ | |||
| Energy calibration | External & self-resoration | | | | |||
| Spot size | 2-10mm | | | | |||
| Reprtition rate | Max.10Hz(1064nm,532nm,STP mode) | | | | |||
| Optical delivery | Articulated arm | | | | |||
| Operate interface | 12”True color touch screen | | | | |||
| Aiming beam | Diode 655nm(Red),brightness adjustable | | | | |||
| Cooling system | Advanced Air & Water cooling system & semiconductor cooling | | | | |||
| Power supply | AC 110V or 230V,50/60Hz | | | | |||
