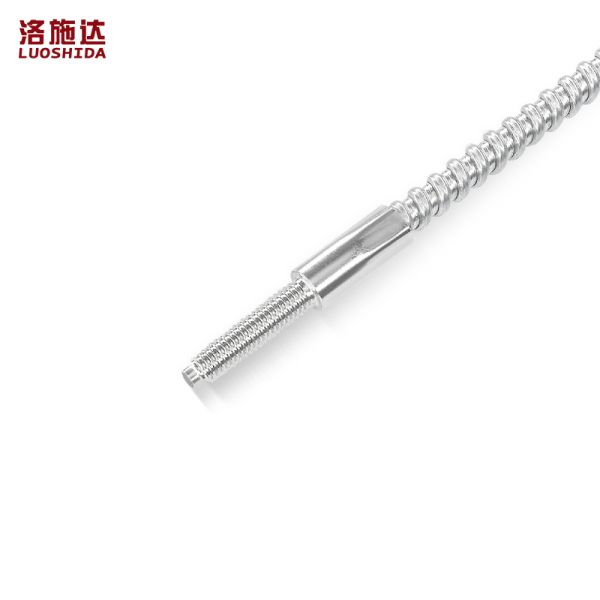

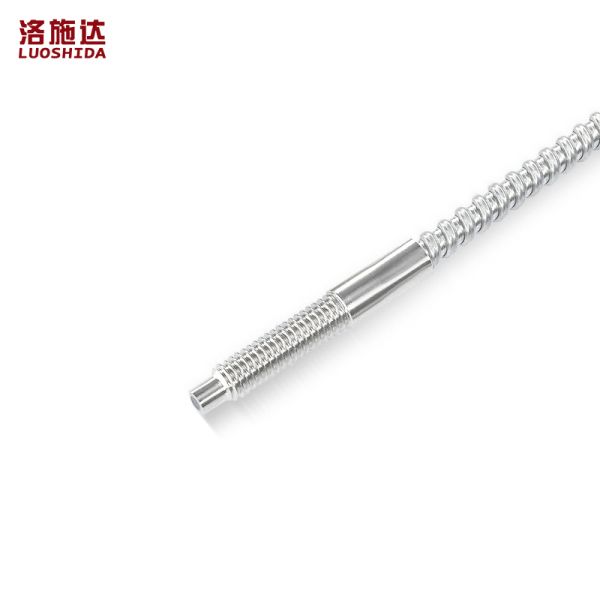

M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor
M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor
M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor
M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor
M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor
M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor
Specifications
Brand Name :
Luoshida
Model Number :
M3 High temperature resistant optical fiber sensor
Certification :
CE RoHS
Place of Origin :
China
MOQ :
5
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
3000PCS per month
Delivery Time :
5-8 work days
Packaging Details :
Normal standard: individual package with labels and outside is normal brown box.
product name :
optical fiber sensor
Sensing distance :
90mm±10%
Reliable sensing distance :
0-72mm
Minimum detection object :
φ0.1
Minimum bending radius :
R25
Description
M3 High temperature resistant optical fiber sensor diffuse reflection(350°℃)
Size M3*22.7
Sensing distance 90mm±10%
Reliable sensing distance 0-72mm
Standard detection object 200*200mm White card
Fiber opticcable length 1M 2M
Temperature resistance -55℃…+350℃
Model without convex tube RSG310S RSG320S
Fiber materal Glass
Fiber core size Fiber coreφ1.5*1
Fiber outer diameter φ3.5
Minimum bending radius R25
Minimum detection object φ0.1
Fiber tube material Stainless steel
Weight About 23.8g About 41.5g
Certification CE


M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensorM3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor

Company Profile
M3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensorM3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensorM3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensorM3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensorM3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensorM3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensorM3 High Temperature 350°C resistance Diffuse reflection stainless optical proximity Fiber Optic sensor

FAQ

Relevant information about the service :

Shipping ways :
Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
Sea transportation is also can be considered, but only appointed agent accetpable.

Payment term and delivery time :
1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;
3. Delivery time:
The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
If no stocks, the delivery time will be 7-10days when we received the PO or deposit.

After-sales services :
1. The warranty period is 12 months
2. If we send the wrong parts to you, free replacement will be available
3. As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
