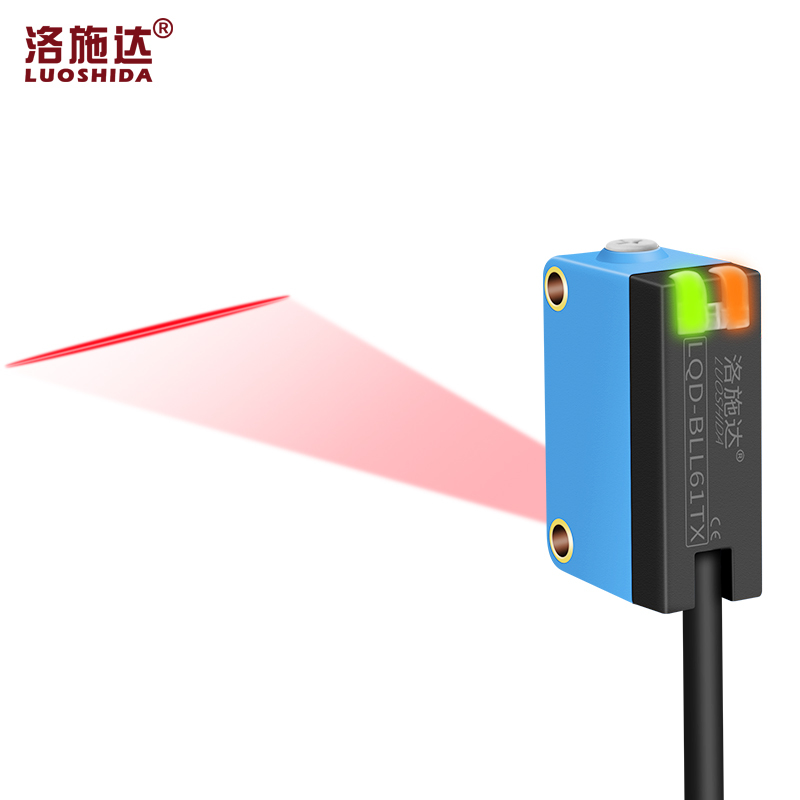

LUOSHIDA LQD-BLL61TX DC 4-Wire NO NC Adjustable Detecting Distance Background Suppression NPN PNP Output Photoelectric Sensor
LUOSHIDA LQD-BLL61TX DC 4-Wire NO NC Adjustable Detecting Distance Background Suppression NPN PNP Output Photoelectric Sensor
LUOSHIDA LQD-BLL61TX DC 4-Wire NO NC Adjustable Detecting Distance Background Suppression NPN PNP Output Photoelectric Sensor
LUOSHIDA LQD-BLL61TX DC 4-Wire NO NC Adjustable Detecting Distance Background Suppression NPN PNP Output Photoelectric Sensor
LUOSHIDA LQD-BLL61TX DC 4-Wire NO NC Adjustable Detecting Distance Background Suppression NPN PNP Output Photoelectric Sensor
LUOSHIDA LQD-BLL61TX DC 4-Wire NO NC Adjustable Detecting Distance Background Suppression NPN PNP Output Photoelectric Sensor
LUOSHIDA LQD-BLL61TX DC 4-Wire NO NC Adjustable Detecting Distance Background Suppression NPN PNP Output Photoelectric Sensor
LUOSHIDA LQD-BLL61TX DC 4-Wire NO NC Adjustable Detecting Distance Background Suppression NPN PNP Output Photoelectric Sensor
LUOSHIDA LQD-BLL61TX DC 4-Wire NO NC Adjustable Detecting Distance Background Suppression NPN PNP Output Photoelectric Sensor
LUOSHIDA LQD-BLL61TX DC 4-Wire NO NC Adjustable Detecting Distance Background Suppression NPN PNP Output Photoelectric Sensor
LUOSHIDA LQD-BLL61TX DC 4-Wire NO NC Adjustable Detecting Distance Background Suppression NPN PNP Output Photoelectric Sensor
LUOSHIDA LQD-BLL61TX DC 4-Wire NO NC Adjustable Detecting Distance Background Suppression NPN PNP Output Photoelectric Sensor
Specifications
Payment Terms :
L/C, D/A, T/T, D/P
Product model :
LQD-BLL61TX (NPN), LQD-BLL61TXP (PNP)
Sensing distance :
30-100mm adjustable
Model Number :
LQD-BLL61TX
Light source :
visible laser red light
MOQ :
5 pieces
Delivery Time :
5-8 work days
Shell material :
PC
Spot size :
60mm long, 2mm wide (actual length and width vary according to installation height)
Packaging Details :
Normal standard: individual package with labels and outside is normal brown box.
Brand Name :
Luoshida
Working voltage :
DC10-30V
Place of Origin :
Guangdong, China
Maximum load :
150mA
Price :
Negotiable
Brand :
Luoshida
Supply Ability :
3000PCS per month
Product name :
Laser strip light
Output mode :
NPN/PNP normally open and normally closed switching
Certification :
CE RoHS ISO
Description
Parameter Item Specification
Product name Laser strip light
Product model LQD-BLL61TX (NPN), LQD-BLL61TXP (PNP)
Brand Luoshida
Spot size 60mm long, 2mm wide (actual length and width vary according to installation height)
Sensing distance 30-100mm adjustable
Shell material PC
Light source visible laser red light
Working voltage DC10-30V
Output mode NPN/PNP normally open and normally closed switching
Maximum load 150mA
Switching frequency 100Hz
Response time 5ms
Protection level IP65
Standard cable length 2 meters
Light feature The actual beam cannot be seen, the light spot is visible


LUOSHIDA LQD-BLL61TX DC 4-Wire NO NC Adjustable Detecting Distance Background Suppression NPN PNP Output Photoelectric Sensor


Luoshida Sensor (Dongguan) Co., Ltd.

Founded in 2012, Luoshida is a high-tech enterprise dedicated to the R&D, production, sales and service of sensors. Its core products cover a wide range of types, including inductive/capacitive proximity sensors, laser displacement sensors, through-beam/diffuse-reflective photoelectric sensors, fiber optical sensors, and color mark sensors, which are widely applied in industrial automation, smart manufacturing and electronic equipment.

All products are developed and produced in line with IEC standards. They have passed strict tests (EMC, IP, vibration impact, high-low temperature) and obtained EU CE certification and ROHS compliance.
With a team of experienced technicians, Luoshida adheres to the concept of "people-oriented, integrity, quality first, customer first". It provides customers with international-standard products, fast technical support and customized solutions.
Looking forward, Luoshida will continue to focus on technological progress, contributing to global industrial intelligent upgrading.


LUOSHIDA LQD-BLL61TX DC 4-Wire NO NC Adjustable Detecting Distance Background Suppression NPN PNP Output Photoelectric SensorLUOSHIDA LQD-BLL61TX DC 4-Wire NO NC Adjustable Detecting Distance Background Suppression NPN PNP Output Photoelectric SensorLUOSHIDA LQD-BLL61TX DC 4-Wire NO NC Adjustable Detecting Distance Background Suppression NPN PNP Output Photoelectric SensorLUOSHIDA LQD-BLL61TX DC 4-Wire NO NC Adjustable Detecting Distance Background Suppression NPN PNP Output Photoelectric SensorLUOSHIDA LQD-BLL61TX DC 4-Wire NO NC Adjustable Detecting Distance Background Suppression NPN PNP Output Photoelectric SensorLUOSHIDA LQD-BLL61TX DC 4-Wire NO NC Adjustable Detecting Distance Background Suppression NPN PNP Output Photoelectric SensorLUOSHIDA LQD-BLL61TX DC 4-Wire NO NC Adjustable Detecting Distance Background Suppression NPN PNP Output Photoelectric Sensor

FAQ

Relevant information about the service :

Shipping ways :
Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
Sea transportation is also can be considered, but only appointed agent accetpable.

Payment term and delivery time :
1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;
3. Delivery time:
The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
If no stocks, the delivery time will be 7-10days when we received the PO or deposit.

After-sales services :
1. The warranty period is 12 months
2. If we send the wrong parts to you, free replacement will be available
3. As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
