34° Viewfinder DOE Laser Module With Center Point Square Frame
34° Viewfinder DOE Laser Module With Center Point Square Frame
34° Viewfinder DOE Laser Module With Center Point Square Frame
34° Viewfinder DOE Laser Module With Center Point Square Frame
34° Viewfinder DOE Laser Module With Center Point Square Frame
34° Viewfinder DOE Laser Module With Center Point Square Frame
34° Viewfinder DOE Laser Module With Center Point Square Frame
34° Viewfinder DOE Laser Module With Center Point Square Frame
Specifications
Brand Name :
xinland
Model Number :
DOE Laser Module
Certification :
CE
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiated
Payment Terms :
T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs per months
Delivery Time :
5-8 work days
Packaging Details :
1pc carton
Lens Angle :
34°
Light Source :
Red/Green/Blue
Wavelength :
450nm/520nm/650nm
Output Power :
50mw/100mw Customizable
Line Length :
1.2 Meters
Voltage :
Customizable
Accessories :
1-3V Adjustable power supply +Bracket
Description

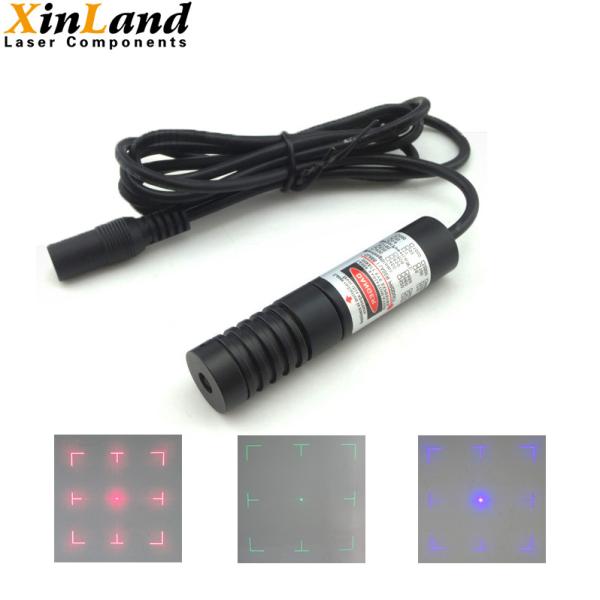

34° Viewfinder Laser Module with Center Point Square Frame Red/Green/Bule Laser Module

Product Details:
Wavelength Output Power Voltage(V) Electric Current Size
650nm 100mw DC 2.8-5.2V <500mA Φ16x70mm
520nm 50mw DC 2.8-5.2V <500mA Φ16x70mm
450nm 100mw DC 2.8-5.2V <500mA Φ16x70mm

Light Spot Details:

Lens angle: 34°
Spot description
At 50 cm: Side length: 30.5 cm Diagonal length: 43 cm
At 100cm: Side length: 61cm Diagonal length: 86cm
At 150cm: Side length: 91.5cm Diagonal length: 129cm
Installation height 0 meters - 10 meters can be used
Use adjustable power supply, can adjustable brightness and reduce diffraction.
Wavelength, Output Power, Voltage and Size Customizable
34° Viewfinder DOE Laser Module With Center Point Square Frame34° Viewfinder DOE Laser Module With Center Point Square Frame34° Viewfinder DOE Laser Module With Center Point Square Frame34° Viewfinder DOE Laser Module With Center Point Square Frame

Warranty:

we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
