Specifications
Brand Name :
xinland
Model Number :
DOE Laser Module
Certification :
CE
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiated
Supply Ability :
50000pcs per months
Delivery Time :
5-8 work days
Packaging Details :
1pc carton
Laser Type :
53.1° 54.02° Solid Circle Laser
Lens Angle :
53.1° 54.02° Customizable
Output Power :
50mw/100mw Customizable
Light Source :
Red/Green/Blue
Wavelength :
650nm/520nm/450nm
Optical Lens :
Grating Sheet
Payment Terms :
T/T, L/C, D/A, D/P, T/T, Western Union,
Description

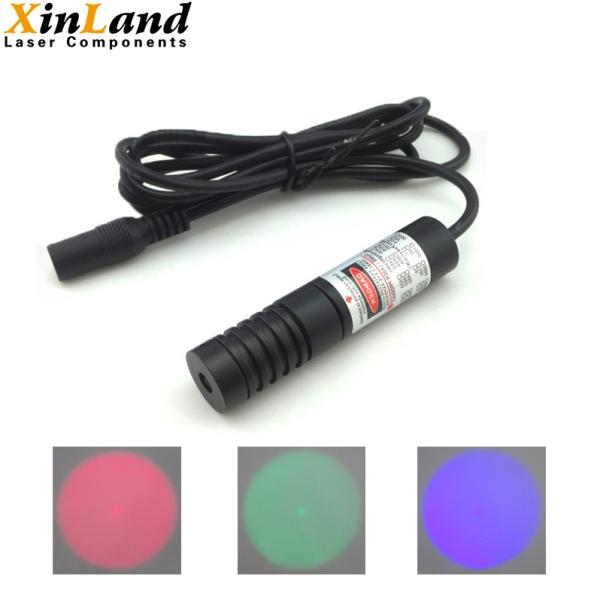

53.1° 54.02° Lens Solid Circle Plane Homogenization Effect Red Green Blue Laser Module

Product Details:
Wavelength Output Power Voltage(V) Electric Current Size
650nm 100mw DC 2.8-5.2V <500mA Φ16x70mm
520nm 50mw DC 2.8-5.2V <500mA Φ16x70mm
450nm 100mw DC 2.8-5.2V <500mA Φ16x70mm

Light Spot Details:

Lens angle: 53.1°
At 25 cm: 250mm in diameter
At 50 cm: 500mm in diameter
At 100 cm: 1000mm in diameter
Lens angle: 54.02°
At 25 cm: 255mm in diameter
At 50 cm: 510mm in diameter
At 100 cm: 1020mm in diameter
Installation height: 0-2meters
Wavelength, Output Power, Voltage and Size Customizable
Other parameters:
Working voltage: DC 2.8V to 5.2V (customizable)
Dimensions: 16*70mm (customizable)
Solid Circle Plane Homogenization DOE Laser Module 450nm
Lens angle: 53.1°
At 25 cm: 250mm in diameter
At 50 cm: 500mm in diameter
At 100 cm: 1000mm in diameter
Solid Circle Plane Homogenization DOE Laser Module 450nmSolid Circle Plane Homogenization DOE Laser Module 450nmSolid Circle Plane Homogenization DOE Laser Module 450nm
Lens angle: 54.02°
At 25 cm: 255mm in diameter
At 50 cm: 510mm in diameter
At 100 cm: 1020mm in diameter
Solid Circle Plane Homogenization DOE Laser Module 450nm
Solid Circle Plane Homogenization DOE Laser Module 450nm
Solid Circle Plane Homogenization DOE Laser Module 450nm

Warranty:

we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and .

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
