PMMA Green Laser Safety Viewing Windows 190nm-450nm 800nm-1700nm
PMMA Green Laser Safety Viewing Windows 190nm-450nm 800nm-1700nm
PMMA Green Laser Safety Viewing Windows 190nm-450nm 800nm-1700nm
PMMA Green Laser Safety Viewing Windows 190nm-450nm 800nm-1700nm
PMMA Green Laser Safety Viewing Windows 190nm-450nm 800nm-1700nm
PMMA Green Laser Safety Viewing Windows 190nm-450nm 800nm-1700nm
PMMA Green Laser Safety Viewing Windows 190nm-450nm 800nm-1700nm
PMMA Green Laser Safety Viewing Windows 190nm-450nm 800nm-1700nm
Specifications
Brand Name :
Xinland
Model Number :
XL4PW4D5T
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
Negotiated
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
10000pcs per month
Delivery Time :
5-8 work days
Packaging Details :
10pcs/carton
Weight :
80kg
Packing :
10pcs/carton
Thickness :
5mm
VLT :
35%
Optical Density :
4+
Wavelength :
190~450nm&800~1700nm
Packing size :
1280x1000mm
Material :
PMMA
Certificate :
CE
Name :
800~1700nm safety window
Description

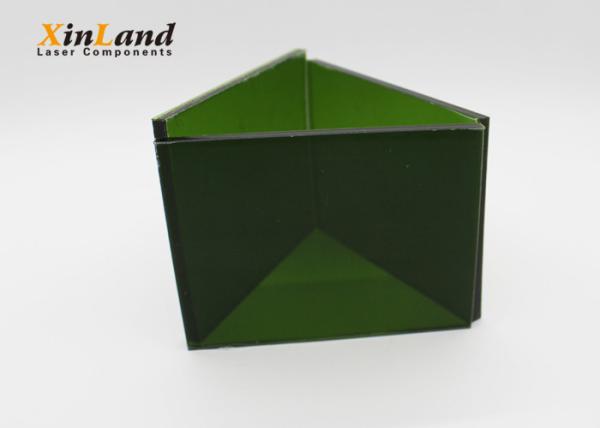

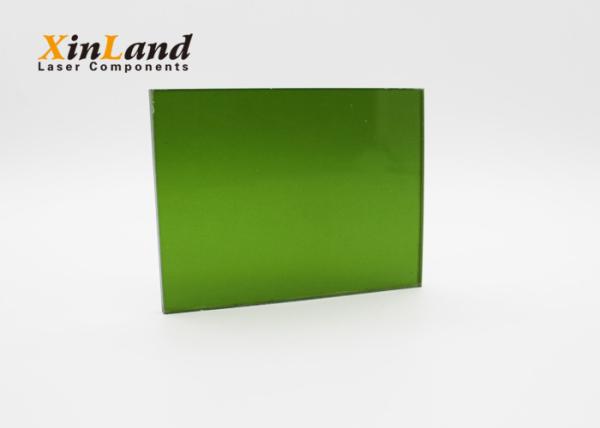

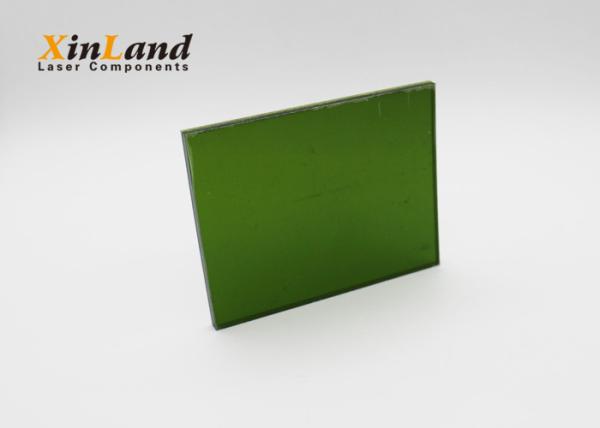

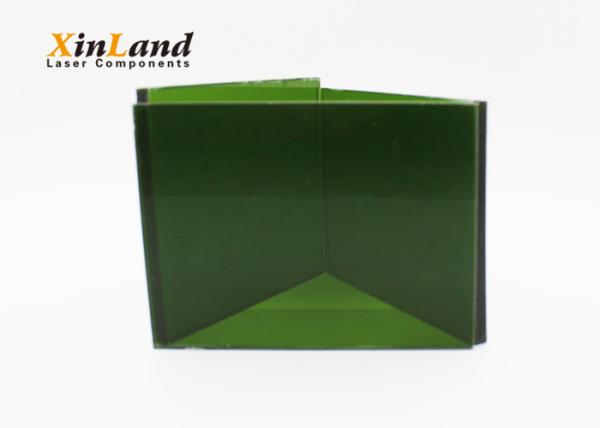

PMMA Material 190~450nm & 800~1700nm Laser Safety Viewing Windows

The Laser Safety Windows supplied by Xi’an Xinland International Co., Ltd are chosen from European’s superior PMMA material. Meanwhile, The Laser Safety Windows protection wavelength including 190~550nm, 580~750nm, 800~1100nm, 190~450nm, 10600nm and CO2 laser.

PMMA Green Laser Safety Viewing Windows 190nm-450nm 800nm-1700nm

Spectrum Chart:

PMMA Green Laser Safety Viewing Windows 190nm-450nm 800nm-1700nm

Technical Details:

VLT 35%
OD 4+
Wavelength 190~450&800~1700nm
Size 1280*1000*5mm
Package 10pcs/carton
G.W 80kg
Thickness 5mm

Notes:

1. The window's maximum size is 1280*1000*5mm,we can cut that for customer size,free cutting service

2. The laser safety window can extensively apply in laser industry manufacturing, range finding,aligning,medical treatment, etc.

Our Services:
Shipping Method: DHL/FEDEX/UPS/EMS/TNT Express service; Post Service

Warranty:we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method: PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Laser Safety Window Catalog :

Series NO. Protection Wavelength Dimension(mm) OD
XL1PW4D3T 190~550nm 1280*1000*3.3mm 4+
XL1PW5D5T 190~550nm 1280*1000*5mm 5+
XL2PW4D5T 580nm~750nm 1280*1000*5mm 5+
XL3PW4D5T 800~1100nm 1280*1000*5mm 4+
XL3PW6D5T 800~1100nm 1280*1000*5mm 6+
XL3PW8D5T 800~1100NM 1280*1000*5mm 8+
XL3PW4GD5T 190~540nm & 800~1100nm 1280*1000*5mm 4+
XL4PW4D5T 190~450nm & 800~1700nm 1280*1000*5mm 4+
XL5PW4D5T 190~420nm & 860~1300nm 1280*1000*5mm 4+
XL6PW4D3T 1064nm&10600nm 1200*1000*3.3mm 4+
XL6PW5D5T 1064nm&10600nm 1200*1000*5mm 5+
XL6PW6D5T 1064nm&10600nm 1200*1000*5mm 6+
XL7PW4D5T 10600nm 1200*1000*5mm 6+

Packing: Standard export carton packing.

Delivery time: 8-13 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
