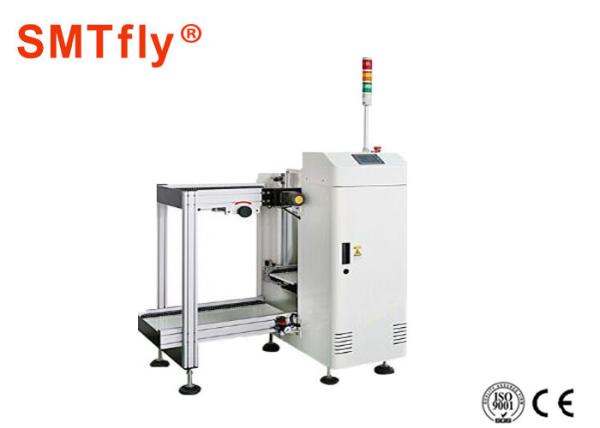

6Sec Board Time SMT Loader PCB Board Handling Equipment SMEMA Standard SMTfly-250LD
6Sec Board Time SMT Loader PCB Board Handling Equipment SMEMA Standard SMTfly-250LD
6Sec Board Time SMT Loader PCB Board Handling Equipment SMEMA Standard SMTfly-250LD
6Sec Board Time SMT Loader PCB Board Handling Equipment SMEMA Standard SMTfly-250LD
Specifications
Brand Name :
SMTfly
Model Number :
SMTfly-250LD
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
USD1/Set
Supply Ability :
100Sets
Delivery Time :
7-15 working days
Packaging Details :
Plywood case
Board time :
6s
Transfer height :
900±20mm(or customized)
Magazine Size(L*W*H) :
355*320*565
Pressure :
4-6bar,Max 10L/Min
Weight :
140Kg
Color :
White
Description

PCB Loader Unloader with 6Sec Board Time Automatic PCB Loader,SMTfly-250LD Features:

PLC control system;

LED TFT touch screen control panel;

Four step pitches selection(10,20,30,40mm);

2 magazines loading capability;

With the special structure of anti clamping plate and foolproof;

Direction from left to right or right to left(option);

Standard SMEMA.

PCB Loader Unloader with 6Sec Board Time Automatic PCB Loader,SMTfly-250LD Specification Parameter:

Model SMTfly-250LD SMTfly-330LD SMTfly-390LD SMTfly-460LD
PCB Size(L*W-L*W) 50*50~350*250 50*50~455*330 50*50~530*390 50*50~530*460
Size(L*W*H) 1100*780*1200 1400*860*1200 1500*920*1200 1600*1120*1200
Magazine Size(L*W*H) 355*320*565 460*400*565 535*460*565 535*530*565
Weight 140Kg 180Kg 220Kg 230Kg

PCB Loader Unloader with 6Sec Board Time Automatic PCB Loader,SMTfly-250LD Technique Parameter:

Board time 6Sec
Magazine change time 20Sec
Power 100-230V AC power(customer)single phase max 300VA
Pressure 4-6bar,Max 10L/Min
Transfer height 920±20mm(customized)
Transfer direction Left - right or right-left
PCB Thickness Min 0.4mm
Magazine Upper conveyor: 1, lower conveyor: 1
Step selection 1-4(10mm step selection)
