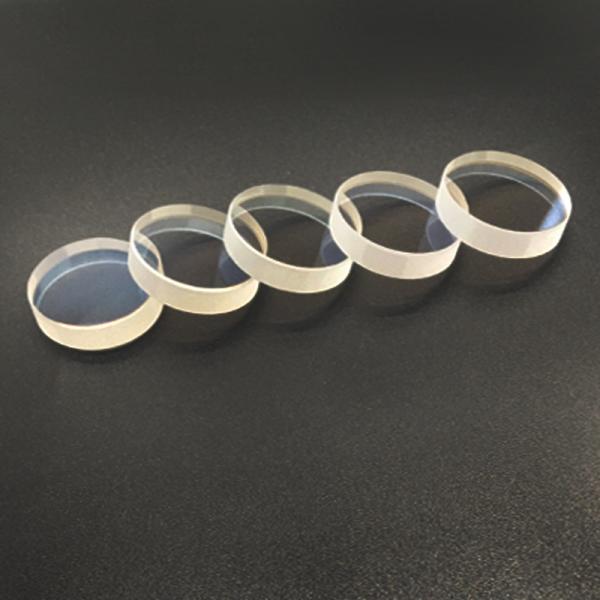

19.05*9.7mm T20% 1064nmAR H-K9L 0 Degree Laser Output Lenses laser machine
19.05*9.7mm T20% 1064nmAR H-K9L 0 Degree Laser Output Lenses laser machine
19.05*9.7mm T20% 1064nmAR H-K9L 0 Degree Laser Output Lenses laser machine
19.05*9.7mm T20% 1064nmAR H-K9L 0 Degree Laser Output Lenses laser machine
19.05*9.7mm T20% 1064nmAR H-K9L 0 Degree Laser Output Lenses laser machine
19.05*9.7mm T20% 1064nmAR H-K9L 0 Degree Laser Output Lenses laser machine
Specifications
Brand Name :
WEIMENG
Model Number :
WM-D-003
Certification :
CE,ISO9000
Place of Origin :
Shaanxi,China(Mainland)
MOQ :
10 pcs
Price :
USD11.3/piece
Payment Terms :
T/T,payapl
Supply Ability :
1000 pcs per day
Delivery Time :
7 days
Packaging Details :
10*10*15 carton packed
Name :
0 Degree Laser Output Lens
Orginal place :
Shaanxi, China(Mainland)
Wavelength :
1064nm
Shape :
Circular/plano
Size :
19.05*9.7mm
Material :
H-K9L
Surface quality :
40/20
Chamfer :
0.2mm*45°
Coating :
AR
Description

LASER OUTPUT MIRROR 0 degree H-K9L 19.05*9.7mm T=20% 1064nmAR laser optical lens laser cutting machine

Description:

The output lens is an important component to obtain laser output in the resonator,laser is produced by the reflection of

two or more lenses with excitation medium and stimulated amplification, in order to obtain the laser, the gain of the medium

must be greater than the initial energy release loss of the output mirror.

Name 0 ° laser output mirror 19.05*9.7mm T20% 1064nmAR H-K9L 0 Degree Laser Output Lenses laser machine
Size 19.05*9.7mm T=20%
Material H-K9L
Tolearance ±0.1mm
Surface quality 40/20
Coating 1064nm AR
Parallelism <1/4
Aperture >90%

19.05*9.7mm T20% 1064nmAR H-K9L 0 Degree Laser Output Lenses laser machine19.05*9.7mm T20% 1064nmAR H-K9L 0 Degree Laser Output Lenses laser machine19.05*9.7mm T20% 1064nmAR H-K9L 0 Degree Laser Output Lenses laser machine19.05*9.7mm T20% 1064nmAR H-K9L 0 Degree Laser Output Lenses laser machine19.05*9.7mm T20% 1064nmAR H-K9L 0 Degree Laser Output Lenses laser machine19.05*9.7mm T20% 1064nmAR H-K9L 0 Degree Laser Output Lenses laser machine19.05*9.7mm T20% 1064nmAR H-K9L 0 Degree Laser Output Lenses laser machine
