4000*1500 2000W Cutter CNC Fiber Laser Cutting Machine Sheet Metal
4000*1500 2000W Cutter CNC Fiber Laser Cutting Machine Sheet Metal
4000*1500 2000W Cutter CNC Fiber Laser Cutting Machine Sheet Metal
4000*1500 2000W Cutter CNC Fiber Laser Cutting Machine Sheet Metal
4000*1500 2000W Cutter CNC Fiber Laser Cutting Machine Sheet Metal
4000*1500 2000W Cutter CNC Fiber Laser Cutting Machine Sheet Metal
4000*1500 2000W Cutter CNC Fiber Laser Cutting Machine Sheet Metal
4000*1500 2000W Cutter CNC Fiber Laser Cutting Machine Sheet Metal
Specifications
Brand Name :
Xinhong Laser
Model Number :
XH-3015L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD12000-16000 per set
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
15-20 workdays
Packaging Details :
Standard Plywood Case
Laser Source :
Raycus/Max/IPG
Laser Head :
Raytools
Control System :
Cypcut
Motor :
Yaskawa Servo
Power :
1500w/2000w/3000w/6000w/12000w
Cutting Working Area :
3000*1500/4000*2000/6000*2500mm
Description

4000*1500 2000W Cutter CNC Fiber Laser Cutting Machine Sheet Metal with Factory Price

​Application

The laser cut steel panels has a wide range of applications, and it is widely used in various manufacturing industries such as auto parts, machinery manufacturing, elevator manufacturing, advertising production, household appliance manufacturing, equipment, hardware, decoration, and metal processing services.

Product Description

Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel , Mild Steel Plate(tube), Carbon Steel,
Alloy,Steel Plate, Spring Steel, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet,
Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc

Product Features

  • Excellent Beam Quality
    The focused spot creates smaller, more intricate cut lines, resulting in higher productivity and improved processing quality.

  • High Cutting Speed
    This machine operates at speeds that are twice as fast as CO2 laser cutting machines of the same power.

  • High Stability
    It utilizes a top-tier imported fiber laser, ensuring stable performance and a lifespan of up to 100,000 hours for key components.

  • High Electro-Optical Conversion Efficiency
    The fiber laser cutting machine achieves three times the electrical-to-optical conversion efficiency of CO2 lasers, promoting energy savings and environmental sustainability.

  • Low Cost
    Its overall power consumption is only 20-30% of that of comparable CO2 laser cutting machines.

Product Parameter

Product Parameter
1 Model XH-3015L XH4020L XH-6025L XH-8025L
2 Cutting Working Area 3000*1500mm 4000*2000mm 6000*2500mm 8000*2500mm
3 Power 1500w/2000w/3000w/6000w/12000W
4 Laser Source Brand Raycus/MAX/IPG
5 Laser Head Raytools
6 Control System Cypcut
7 Pneumatically Part SMC
8 Guiding Rail Taiwan Hiwin
9 Helical Rack Taiwan YYC
10 Motor Yaskawa Servo
11 Water Chiller Hanli
12 Gross weight 1200KG
13 Machine Warranty Lifetime

Machine Main Parts

1.Industrial Machine bed: A solid bed has high stability .It is unmatched by other materials and structures.
The use of graphite cast iron as a raw material keeps the precision of the machine tool for a long time
and remains unchanged for 50 years.
2.Laser Source
---Brand:MAX RAYCUS JPT IPG
---100000hours life time
---e stable, cost-efficient
---Free maintenance

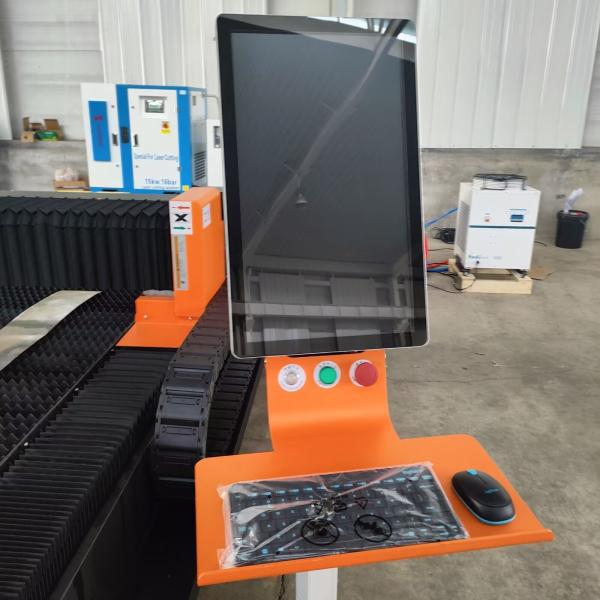

3.control system
brand:CYPCUT
Details;edge seeking function and flying cutting function , intelligent typesetting ect
supported Format:AI,BMP,DST,DWG,DXF,DXP,LAS,PLT,NC,GBX etc...
4.servo motor
brand : japan fuji
details:
--X axis: one set 850w Japan Fuji servo motor and driver.
--Y axis: Two set 850w Japan Fuji servo motor and driver
--Z axis;one set 400w Japan Fuji servo motor and driver
5.SQUARE RAIL
brand :Taiwan HIWIN
Advantage:Low noise,wear-resistant,smooth to keep fast moving speed of laser head
Detaills:30mm width and 165 four pieces stock on every table to decrease the pressure of rail
6.water cooling system:
brand:1000w S&A chiller
Details:Dual cooling funtion,Hot water for laser head and cool water for laser source to keep them
around certain temperature and guarantee their normally work
4000*1500 2000W Cutter CNC Fiber Laser Cutting Machine Sheet Metal
Samples Show
4000*1500 2000W Cutter CNC Fiber Laser Cutting Machine Sheet Metal
Company Profile

About us
Xinhong Machinery Manufacturing Co., Ltd is a professional high-tech enterprise integrating R&D, production and trade. Our company is mainly engaged in the developing, producing and exporting of fiber laser cutting machines, laser welding machines,laser marking machines,and metal processing machinery manufacturing. The mechanical equipment produced by the company is widely used in industrial fields and products are best-selling across the country and overseas markets.

The company has a high-quality and professional management and technical team. "Quality First, Service First" is our manufacturing philosophy. To guarantee the interests of our customers, we promise lifelong after-sales service. With reliable quality and service, our products are deeply trusted by customers.
