3015 CNC Stainless Steel Aluminium Metal Laser Cutter Flat Fiber Sheet Cutting Machine For Carbon Steel Tube Plate Pipe CNC Metal Cutting Machine
3015 CNC Stainless Steel Aluminium Metal Laser Cutter Flat Fiber Sheet Cutting Machine For Carbon Steel Tube Plate Pipe CNC Metal Cutting Machine
3015 CNC Stainless Steel Aluminium Metal Laser Cutter Flat Fiber Sheet Cutting Machine For Carbon Steel Tube Plate Pipe CNC Metal Cutting Machine
3015 CNC Stainless Steel Aluminium Metal Laser Cutter Flat Fiber Sheet Cutting Machine For Carbon Steel Tube Plate Pipe CNC Metal Cutting Machine
3015 CNC Stainless Steel Aluminium Metal Laser Cutter Flat Fiber Sheet Cutting Machine For Carbon Steel Tube Plate Pipe CNC Metal Cutting Machine
3015 CNC Stainless Steel Aluminium Metal Laser Cutter Flat Fiber Sheet Cutting Machine For Carbon Steel Tube Plate Pipe CNC Metal Cutting Machine
Specifications
Brand Name :
XINHONG
Model Number :
XH-3015L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
FOB 12000 USD-18000USD
Payment Terms :
T/T
Supply Ability :
4000SETS/YEAR
Delivery Time :
30-55 working days
Packaging Details :
Container
Resolution Accuracy :
< 0.01mm
Reduction Gears :
Alpha Germany
Cnc Or Not :
Yes
Cutting Accuracy :
±0.01mm
Transmission :
Belt transmission
Laser Output Control :
0-100% set by software
Cnc :
yes
Driver :
Yako driver
Max. Cutting Speed :
40m/min
Color :
Customizable
Application :
Industrial Metal Cutting
Laser Source Brand :
Raycus
Laser Head :
Raytools auto focus BM110
Dimensions :
4200*2250*1840mm
Power Supply :
220V/50HZ, 110V/60HZ
Working Temperature :
0-35℃
Machine Weight :
1800kg
Working Area :
3080mm*1530*100mm
Controller System :
Raytools XC3000S
Beam and Gantry :
Aviation aluminum
Water Chiller :
1500W hanli
Air Conditioner :
Included
Description

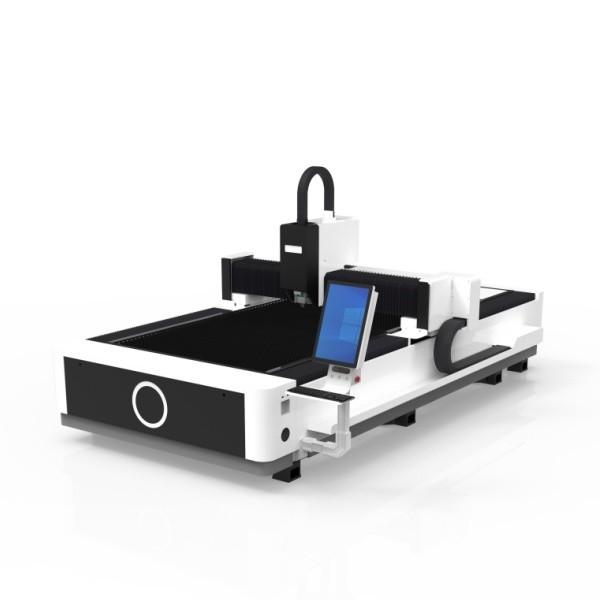

3015 CNC Stainless Steel Aluminium Metal Laser Cutter Flat Fiber Sheet Cutting Machine for Carbon Steel Tube Plate Pipe CNC Metal Cutting Machine

The XINHONG Fiber Laser Cutting Machine is a mature and reliable product engineered to meet leading domestic performance standards.

This model series is specifically designed for efficient and precise metal processing applications.

After undergoing aging and annealing treatments, the machine bed is built using an integrated honeycomb carbon steel structure, delivering outstanding strength and structural stability.

Its beam, crafted from aerospace-grade or cast aluminum, ensures excellent cutting accuracy and durability.

With high-speed operation, this machine greatly boosts productivity and overall processing efficiency.

1 Model XH-3015L XH-4020L XH-6025L XH-8025L
2 Cutting Working Area 3000*1500mm 4000*2000mm 6000*2500mm 8000*2500mm
3 Power 1500w/2000w/3000w/6000w/12000W
4 Laser Source Brand Raycus/MAX with CE
5 Laser Head Raytools auto focus BM110
6 Control System Raytools XC3000S
7

Reducer

 Japan Shimpo/France Motoreducer
8

Electronic Components

 Schneider
9

Guide Rail

 PEK
10

Grinding Rack

 LEITESEN
11

Air Conditioner

 Included
12

Machine Size

 4200*2250*1840mm
13

Total Power

 16.78KW
