Specifications
Brand Name :
Xinhong Lasser
Model Number :
XH-CO2 laser cutter
Certification :
CE,RoHS,ISO9001 certificates
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
USD1100-2100/Set
Payment Terms :
T/T,Western Union
Delivery Time :
10-15 working days
Packaging Details :
Wooden box
Product Name :
CO2 laser engraving machine
Laser Source :
Reci/Yongli
Laser Type :
CO2
Power :
80W/100W/130W/150W/180W
Working Area :
4060/6090/1390/1610(optional)
Control System :
Ruida software
Engraving thickness :
1----5mm
Cutting thickness :
1----15mm
Water Chiller :
Hanli/S&A
Machine Warranty :
2 years warranty
Description

Double Heads Auto Feeding Laser Engraver and Cutter for Fabric Leather


★ Product Application

This equipment is capable of independently engraving the surfaces of various materials, separately cutting multiple materials, or performing both engraving and cutting simultaneously—achieving a seamless integration of these two functions. It boasts fast operating speeds, straightforward operation, and low costs. The engraving results are excellent, while the cutting edges remain burr-free; there’s no need for secondary grinding, cutting waste is minimal, the engraving depth adjusts automatically, and precision is high.

Application industries include: advertising signs, craft gifts, crystal ornaments, paper-cut crafts, reliefs, bamboo and wood carving, printing plate making, clothing and leather, embroidery, decoration, photo frame production, and more.

Applicable materials cover non-metallic substances such as two-color plates, plexiglass, glass, acrylic, wood boards, paper, leather, cloth, rubber, marble, granite, ceramic tiles, shells, and the like.


★ Product Features
The machine operates with the CorelDRAW control system, supporting multiple languages. Users can import stamp designs into the software, set the appropriate parameters, and perform cutting and engraving. It efficiently handles text in various languages, logos, QR codes, barcodes, patterns, and more.

★ Technical Parameters

1 Model XH-4060 XH-6090 XH-1390 XH-1610
2 Cutting Working Area 400*600mm 600*900mm 1300*900mm 1600*1000mm
3 Power 80W/100W/130W/150W/180W(customizable)
4 Laser Source Brand Reci/Yongli
5 Control System Ruida sofeware
6 Engraving speed 0-800mm/s
7 Engraving thickness 1----5mm
8 Cutting speed 0-400mm/s
9 Cutting thickness 1----15mm
10 Working material Non-metallic material
11 Water Chiller Hanli
12 Up and down work table 0--400mm electric lift(Optional auto focus)
13 Workbench honeycomb table or blade table(optional)
14 Gross weight 230KG
15 Machine Warranty 2 years warranty


★More Machine Details

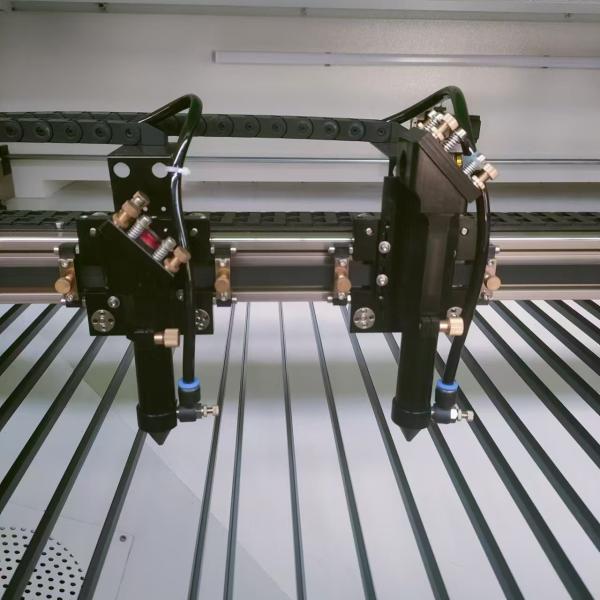

1. Laser head with CCD camera
The aluminum alloy adjustable laser head is
lighter than other metal laser heads,which
can minimize the inertia error when the laser
head moves.

2.Famous brand RECI & CWG tube
Machine choose famous brand laser tube,
durable and stable performance, lifetime last
10000 hours, and we offer you 12 months

3.High precision module linear
The X / Y axis uses a high-precision module
linear & square rail to improve cutting
engraving accuracy. More accurate and
longer working life.

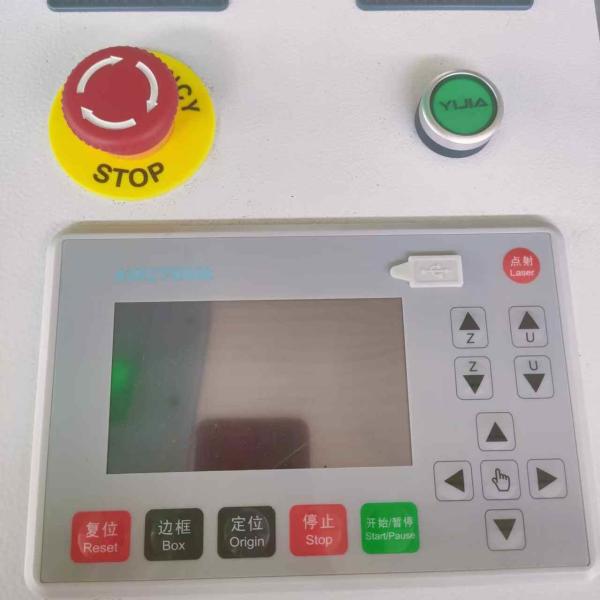

4.Ruida Control System
Ruida control system Supports USB cable
controlled by computer and and also offline
control system by just a U disk. Compatible
with lightburn.


Double Heads Auto Feeding Laser Engraver and Cutter for Fabric Leather
Double Heads Auto Feeding Laser Engraver and Cutter for Fabric Leather

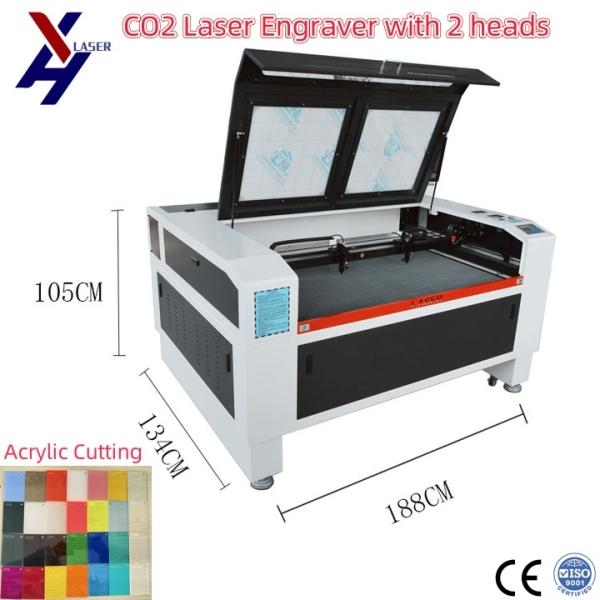

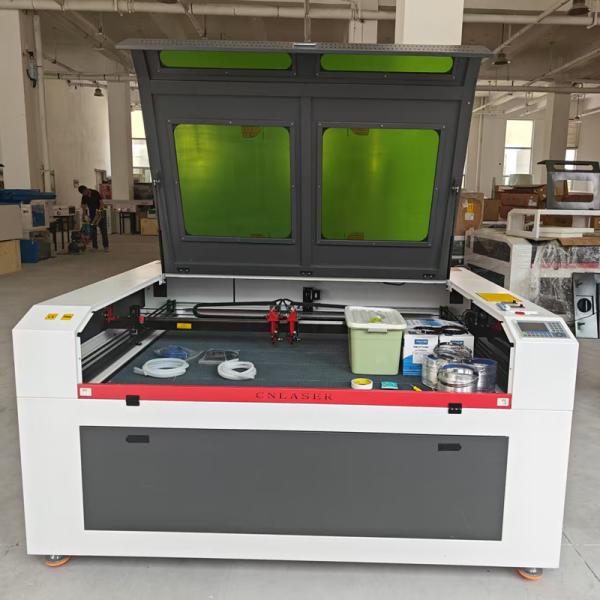

★ 1390 Real Machine with 2-cutting-head Display

Double Heads Auto Feeding Laser Engraver and Cutter for Fabric Leather

Double Heads Auto Feeding Laser Engraver and Cutter for Fabric Leather

Double Heads Auto Feeding Laser Engraver and Cutter for Fabric Leather



★ Sample Show
Double Heads Auto Feeding Laser Engraver and Cutter for Fabric Leather
