Specifications
Brand Name :
Jiangpin
Model Number :
JPL-EFH
Certification :
CE/FDA
Place of Origin :
China
MOQ :
1
Payment Terms :
,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
50sets/week
Delivery Time :
5-8 working days
Packaging Details :
Wooden Case
Description

One of the most important applications of laser cleaning is the removal of rust and unwanted painted substrates. Rust is a thin layer of oxidized material that can arise on the outside of a metal surface and formed by the reaction of iron and oxygen in the catalytic presence of water or air moisture. The traditional techniques to remove rust are sanding, chemical treatment, sandblasting, dry ice blasting, etc. These techniques are either very time consuming or have a big impact on the environment.

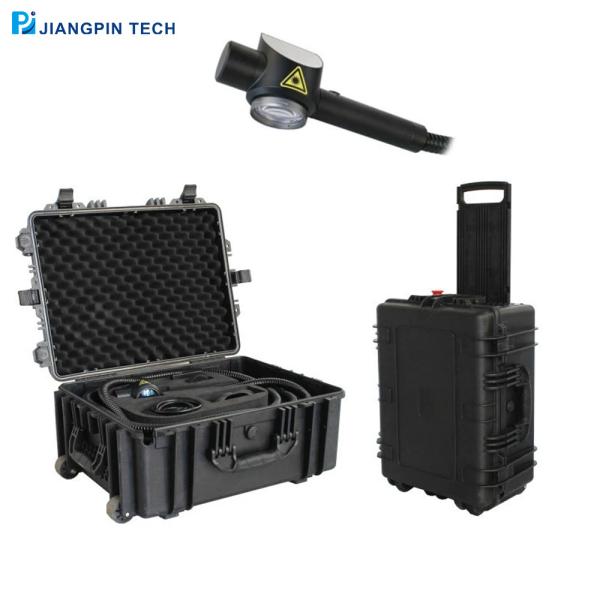

Luggage design laser cleaning machine has many advantages, such as portability and lightness, flexible and adjustable parameters,wireless control and so on. Very easy to move and operate.It use pulse laser source, has 100w 200w 300w 500W 1000W for choose.

Product Advantages
1. No consumables, no chemical pollution, saving energy and electricity;
2. No contact, no friction, and no stress can protect the surface of brittle materials, and minimize damage to the substrate;
3. It can remove pollution particles below the nanometer level, and the cleanliness is high;
4. Optical fiber transmission can be moved and operated, precisely positioned for cleaning, and can also clean areas that are not easily accessible;
5. Synchronous cleaning and synchronous processing to achieve zero discharge during the cleaning process;
6. It can realize fast cleaning of heavy pollutants and high-speed cleaning of light pollutants;
7. Laser cleaning can solve problems that cannot be solved by traditional cleaning methods;
8. Wide range of applicable materials for laser cleaning;

The working mode of the laser
pulse
Power adjustment range
10-100
Cooling method
air cooling
The focal length of the focusing lens
210mm (160mm/254mm/330mm/420mm are optional)
The overall dimensions of the whole machine
617mm*469mm*291mm
Working environment temperature
5℃～40℃
Power supply voltage
Single phase 220V±10%, 50/60Hz AC
Average laser power
≥200W≥300W
Power instability
＜5%
Working environment humidity
≤80%
Scanning range (length * width)
0-145mm, continuously adjustable
The dual-axis supports nine scanning modes.
