Portable Backpack Pulse Laser Cleaning Machine 200W Rust Paint Oil Oxide Removal Pulse Laser Cleaning Machine
Portable Backpack Pulse Laser Cleaning Machine 200W Rust Paint Oil Oxide Removal Pulse Laser Cleaning Machine
Specifications
Brand Name :
JPTECH
Model Number :
JPL-EFH200SC
Certification :
CE、RoHS、EN 60825-1、FDA、UL、ISO 3834
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
50 sets/months
Delivery Time :
5-8 days
Packaging Details :
wood carton
laser source :
JPT; MAX
laser power :
200W pulse energy
cleaning width :
＞2000mm
cleaning speed :
0-5㎡/h
Application :
Rust Paint Oil Oxide Removal
warranty :
12 months
Description

JPL-EFH200SC Portable Backpack Pulse Laser Cleaning Machine 200W Laser Clean Metal Rust Wood Oil Paint

whats is the laser cleaning?

Laser cleaning is a new technology based on the interaction of laser and material, which can achieve the effect of removing surface pollution and attachment. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, accurate cleaning ," green "environmental protection and on-line, especially suitable for high-speed on-line cleaning in designated areas.

Portable Backpack Pulse Laser Cleaning Machine 200W Rust Paint Oil Oxide Removal Pulse Laser Cleaning Machine

The laser cleaning equipment produced by JPTECH is a new generation of high-tech products for surface treatment, which is easy to install, control and realize automation. Simple operation, power supply, open equipment, can be no chemical reagent, no medium, no dust, no water cleaning, can fit surface cleaning, cleaning surface cleanliness is high, can remove object surface resin, paint, oil stains, dirt, rust, coating, coating and oxidation layer, and the industry is widely used, covering ships, auto repair, rubber mold, high-end machine tools, tracks and environmental protection.

Equipment characteristics and implementation standards

1) Equipment characteristics

  • non-contact cleaning without damaging the matrix of the parts

  • accurate cleaning, can achieve precise position, accurate size selective cleaning

  • do not need any chemical cleaning liquid, no consumables, safety and environmental protection

  • simple operation, hand-held or with the manipulator to achieve automatic cleaning

  • ergonomics design, operating labor intensity greatly reduced

  • trolley design, with its own moving wheel, easy to move

  • High cleaning efficiency, save time

  • laser cleaning system is stable with little maintenance

2) Product implementation standards

JPTECH has passed the ISO 9001 international quality management system certification, the formation of medium and small power laser processing equipment design, production and service quality assurance system. and also sets detailed standards for the working environment and working conditions, basic technical requirements, cooling requirements, laser radiation safety, electrical safety, test methods, inspection and acceptance, packaging and transportation, etc.

The national standards cited in this standard are:

  • GB10320: Electrical safety of laser equipment and facilities
  • GB7247: Radiation Safety, Equipment Classification, Requirements and User Guide for Laser Products
  • GB2421: Basic Environmental Test Procedures for Electronic Products
  • GB/TB360: Specification for Laser Power Energy Testing Instruments
  • GB/T13740: Test Method of Laser Radiation Dispersion Angle
  • GB/T13741: Method for measuring laser beam diameter
  • GB/T13862-92: Laser Radiation Power Test Method
  • GB2828-2829-87: Batch-by-cycle inspection of counting sampling procedures and sampling tables

Operating environment and related parameters

Operating environment

Content

JPL-EFH200SC

Supply voltage

Standard AC220V±10%, 50/60Hz power adapter (output DC48V)

Optional single battery, 200W continuous work 80min

Power consumption

≤800W

Working environment temperature

5℃～40℃

Working environment humidity

≤80%

Optical parameters

Average laser power

≥200W

Power instability

＜5%

Laser Working Mode

Pulse

Pulse width

13-500ns

Maximum monopulse energy

2mJ

Power regulation range(%)

0-100( Gradient Adjustable)

Repeat frequency(kHz)

1-3000(Gradient Adjustable)

Fiber length

1.5m

Cooling mode

Air cooling

Cleaning Head Parameters

Scan range (length * width)

0mm~145mm, continuously adjustable;

Biaxial supporting 8 scanning modes

Field mirror focal length(mm)

160mm( Optional 210mm/254mm/330mm/420mm)

Depth of focus

About 5 mm

Mechanical parameters

Machine size(Length, width and height)

About 268mm*135mm*445mm(Do not contain batteries)

About 268mm*191.5mm*445mm(Contain the battery)

Machine Weight

About 12.5Kg(Do not contain batteries)

About 17Kg(Contain the battery)

Cleaning head weight

＜0.75Kg

Mode of operation

Wireless control screen

Product structure

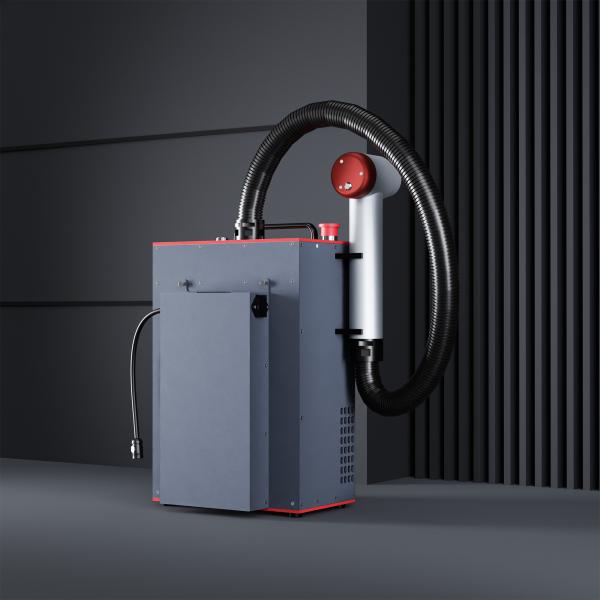

1) laser cleaning machine appearance

Portable Backpack Pulse Laser Cleaning Machine 200W Rust Paint Oil Oxide Removal Pulse Laser Cleaning Machine

2)Structure of Cleaning Head

Portable Backpack Pulse Laser Cleaning Machine 200W Rust Paint Oil Oxide Removal Pulse Laser Cleaning Machine

Portable Backpack Pulse Laser Cleaning Machine 200W Rust Paint Oil Oxide Removal Pulse Laser Cleaning Machine

3) Overall Dimension

Portable Backpack Pulse Laser Cleaning Machine 200W Rust Paint Oil Oxide Removal Pulse Laser Cleaning Machine

Configuration list

Name of name

Model specifications

Units

Quantity

Remarks

Laser cleaning mainframe

JPL-EFH200SC

Table

1

Laser cleaning head

GY-QCDXY200P

Sets

1

Process database

Built-in

Sets

1

Laser protective glasses

SD-3

Payment

1

protect the lens

43*2

Pcs

5

Lens cleaning kit

Pcs

10

Special 220V power adapter

GY-DC48500

Sets

1

Wireless control panel

GY-43W

Sets

1

Control screen lithium battery charger

DC12V0.3A

Sets

1

Dedicated lithium battery module

48V20Ah

Sets

1

Optional

Dedicated lithium battery charger

GY-DC5405

Sets

1

Optional

Installation and Application of Laser Cleaning Machine

1) Precautions before use:

  • Check whether the appearance of the equipment is abnormal, whether the output cable bending, breakage and other phenomena.

  • Please ensure that the electrical outlets are in good contact

  • Check and ensure that the cleaning head protects the lens from dust inside and outside

  • Check and make sure all buttons and switches are in normal condition

2) Operation Steps

  • Take out the hand-held cleaning gun in the chassis, ensure that the button switch on the handle is loosened, and remove the dust cover of the lens at the front of the laser cleaning gun

  • Take out the external power line to energize, turn on the total power switch, open the key switch

  • Turn on the start button to power on and initialize the system

  • After the system is started, set the laser cleaning parameters on the laser cleaning host interface

  • After laser parameters are set, press the laser enable button on the laser cleaning touch screen (before pressing the button, make sure that the button switch on the handle of the handheld head is loosened).

  • Put on laser protective glasses, aim the head of the gun at the cleaned workpiece, press the switch button on the handle of the finger, and the head of the gun can be cleaned with light (please connect the external control line on the laser cleaning host for automatic use, and switch the laser control through the external control signal)

  • After use, loosen the switch on the cleaning head, turn off the enable button on the laser cleaning touch screen, press the start button, turn off the key switch, pull down the main power switch, cover the dust cover of the playing mirror, insert the cleaning gun back into the host placing box, and unplug the power plug
