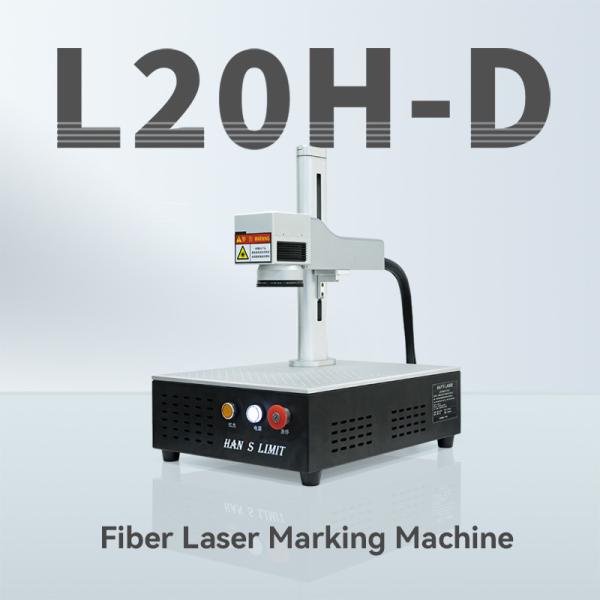

L20H-D Han's Han's fiber laser marking machine desktop engraving machine desktop type

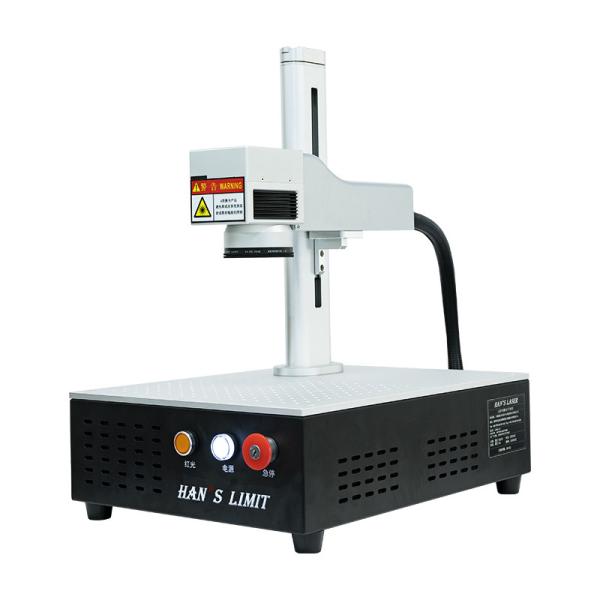

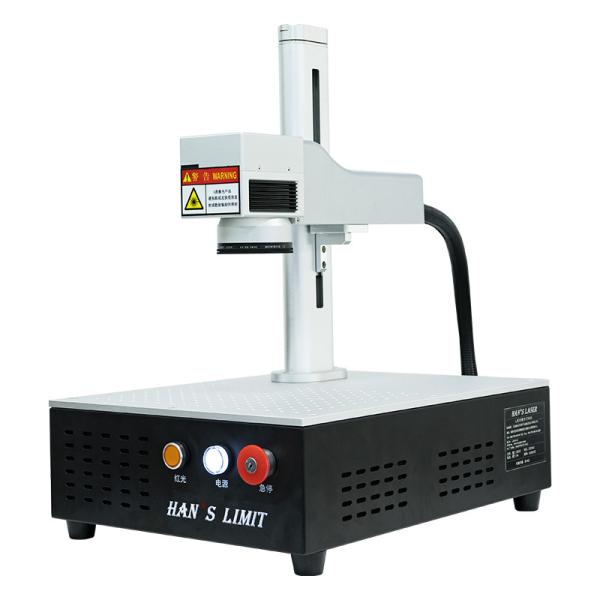

L20H-D Desktop Marker

Equipment features: suitable for metal materials, fiber laser marking machine output beam quality, high reliability, can engrave metal materials and some non-metallic materials, laser marking can be typed out a variety of text, symbols and patterns, etc., the character size can be from millimeters to micron scale, which has a special significance for the anti-counterfeiting of the product, traceability, marking and so on.

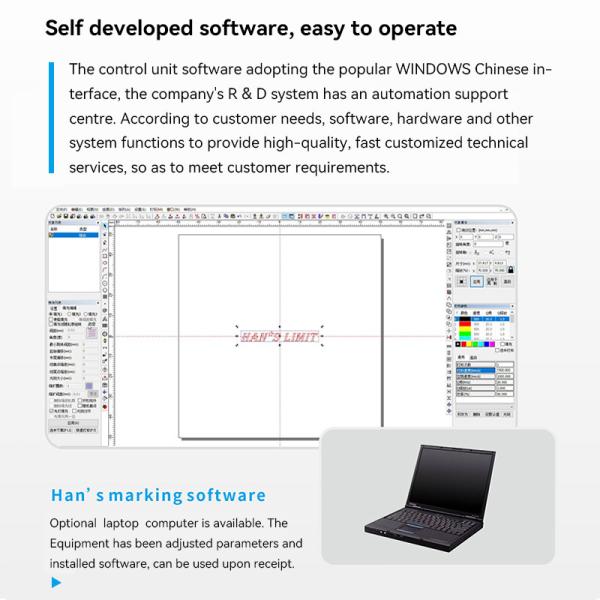

"Self-research software, easy to operate, the software adopts the popular WINDOWS Chinese interface, the company's R & D system has a self-developed

Dynamic Support Center, which can provide high-quality and fast customized technical services for software, hardware and other system functions according to customers' needs, so as to meet their requirements."

Scenarios: automotive translucent buttons, electrical components, bearing blackening, metal embossing, stainless steel, charger shell, small appliances, hardware, clocks and watches, bitmap marking, keyboards, aluminum alloy

Why Desktop?
Fully upgraded, small footprint, weight 22KG, easy to operate. Traditional model, large footprint, weight of about 80KG, cumbersome operation

Eight reasons to choose the L20H-D:
1, 20W high power, application range, can be applied to the key and absorb light sensitive materials.

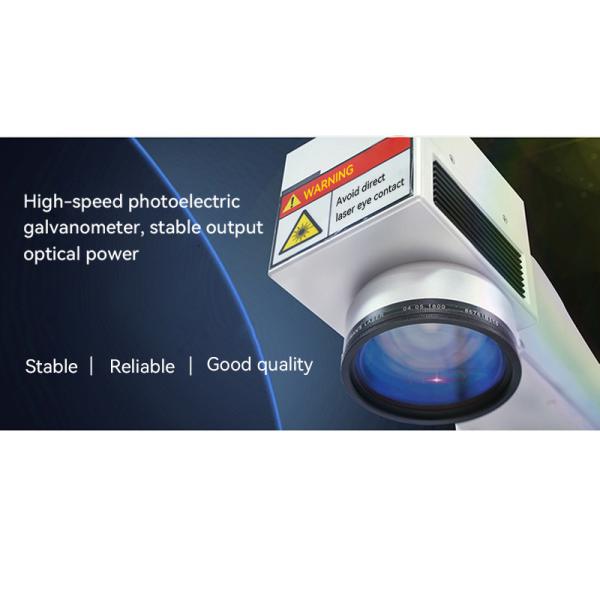

2, high-speed vibration mirror, dynamic vibration mirror, using the large family of homemade high-quality products, high precision, speed, stable performance.
3,Industrial vibrating mirror, high-precision marking, vibrating mirror using high stability precision position detection sensing technology.
4, high-speed preview, red light positioning, the software provides a red frame preview mode to make each marking position accurate and error-free.

5,Air cooling system, stable and durable, the cooling system adopts air-cooling mode, to ensure that the laser long life, stable and reliable work. 6,Desktop marking, weighing only 22kg, can be moved at any time of the all-metal marking machine, engraving effect is comparable to desktop marking machine.

7, self-research software, easy to operate, independent research and development of the marking control software for the Chinese interface, compatible with a variety of file formats.

8, workbench, the machine is equipped with a manual lifting table, can easily adjust the height of the lens to achieve precise positioning.

System Technical Parameters

Laser Output Power ≤ 20W

Fiber Q Laser Laser wavelength 1.06μ m

Maximum single pulse energy 0.8mJ

Optional Mode 1

Laser repetition frequency range 25-100KHz

Beam quality M² 1.2-2

Engraving range 100*100mm(standard)~400*400mm(optional)

Engraving depth ≤ 0.4mm

Engraving line speed ≤ 7000mm/s

Minimum line width 0.1mm

Minimum Character 0.1mm L20H-D Model Recommendation Program

Repeatability ±0.003mm

Power consumption of the whole machine ≤ 500W

Host system: 800mm×600mm×1400mm

Weight of the whole machine: 22KG
