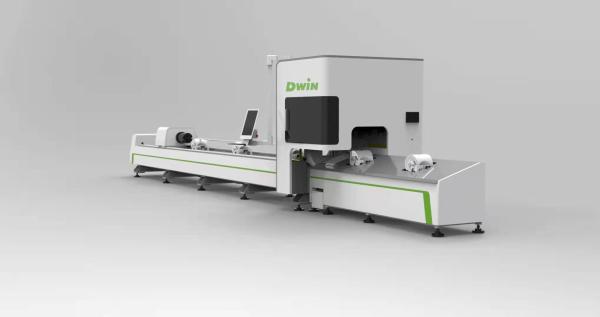

1500w Automatic Fiber Laser Cutting Machine 1000w For Pipe Tube
1500w Automatic Fiber Laser Cutting Machine 1000w For Pipe Tube
1500w Automatic Fiber Laser Cutting Machine 1000w For Pipe Tube
1500w Automatic Fiber Laser Cutting Machine 1000w For Pipe Tube
Specifications
Brand Name :
DWIN
Model Number :
DW1530
Certification :
CE FDA SGS
Place of Origin :
China
MOQ :
1set
Price :
14500-19000usd
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets / month
Delivery Time :
10-20 working days
Packaging Details :
Plywood box
working area :
1500*3000mm
laser type :
fiber laser
laser power :
1000w /1500w
motor :
Delta / FUJI
control system :
cypcut control system
Cooling :
CWFL 1000 / 1500
Warranty :
24 months
Rails :
25mm HIWIN / PMI Liner guide rails
Reducer :
Japanese Shimp / Germany Neugart
Laser head :
Raytools / WSX
Transmission :
Taiwan YYC rack
Fiber source :
Raycus / Max
Description

fiber laser automatic cutting machine for pipe tube

DW1530 affordable metal tube laser cutter is also called tube laser cutting machine,which is used for cutting round tube,square tube and other metal tube. Pipe processing range 6000mm* φ10~220mm.

DW1530 affordable metal tube laser cutter is equipped with fiber laser device, laser power from 1.5kw to 4kw.

Technical parameter:

Model
Affordable Metal Tube Laser Cutting Machine DW1530

Laser Power
1000W/1500W/2000W/3000W/4000W/
Pipe Processing Range
6000mm* φ10~220mm
(Square tube: 10*10~150*150mm)
Maximum Speed
100m/min
Maximum Rotational Speed
100r/min
Z-axis Travel
170mm
Positioning Accuracy
±0.05mm
Repeated Positioning
±0.02mm
Maximum Acceleration
0.8G
Table Maximum Load(KG)
700
Outline Size(mm)
9000*2900 *2400
Power Parameters
Three-phase AC 380V 50Hz
Protection Level of Total Power Supply
IP54

Samples

1500w Automatic Fiber Laser Cutting Machine 1000w For Pipe Tube
