3mm 6mm Stainless Steel Laser Cutting Machine Fast Cam For Craft Gifts / Tube Fittings
3mm 6mm Stainless Steel Laser Cutting Machine Fast Cam For Craft Gifts / Tube Fittings
Specifications
Brand Name :
PM
Model Number :
HS-M3015B
Certification :
CE, ISO
Place of Origin :
China
MOQ :
standard wood case
Price :
USD 100,000 to 200,000 per set
Payment Terms :
L/C, T/T
Supply Ability :
one set per month
Delivery Time :
Within 20 days
Packaging Details :
standard wood case
Application :
Laser Cutting
Applicable Material :
Acrylic,Crytal,Glass,Leather,MDF,Metal,Paper,Plastic,Plexiglax,Plywood,Wood
Control Software :
Fast CAM
After-sales Service :
Engineers available oversea
Cutting thickness :
6mm Mild Steel/ Stainless Steel
Graphic Fromat supported :
AI,BMP,DST,DWG,DXF,DXP,LAS,PLT
Laser source :
Germany IPG Fiber Laser
Power supply :
380V 50HZ
Description

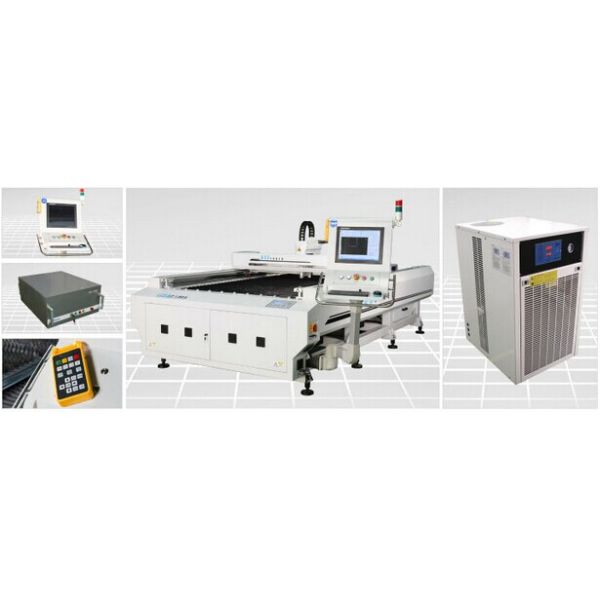

Laser cutting machine stainless steel for 6mm Mild Steel ,3mm Stainless Steel HS-M3015B

Technical Parameters:

Product name

Laser cutting machine stainless steel for 6mm Mild Steel ,3mm Stainless Steel HS-M3015B

Working table(mm)

1500*3000

Laser power(W)

500

Weight(kg)

5000

Table load(kg)

500

Machine body size(mm)

4482*3307*2740

Max.Acceleration Speed

0.3G

Transmitting System

Movable gantry, single driving

Max running speed

60m/min

Positioning Accuracy

0.05mm

Working Power Supply

380V±10% 50HZ

X/Y Positioning Accuracy

±0.05mm

Power Phases

3

Running Temperature

0°C-40°C

Max Acceleration

0.3G

Formats

DXF,AI,DST

Applied Materials

Thin mild steel, stainless steel and other kinds of metallic sheets(non-ferrous metal not suggested)

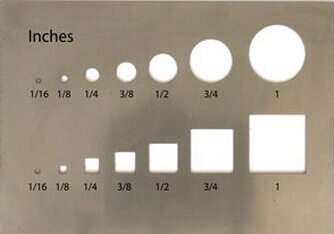

Cutting samples:
3mm 6mm Stainless Steel Laser Cutting Machine Fast Cam For Craft Gifts / Tube Fittings

Features:

1. 600°C heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate CO2
protection welding, to make sure 20 years usage without deformation.

2. Use the collimator to install and adjust guide rail, precision: ≤0.01mm

3. Taiwan precise ball screw and linear guide rail, highest speed up to 60 meters/ minute and
accelerated speed up to 0.5g.

4. Japanese original imported servo system ensures the high precision of transmitting.

5. German speed reducer to enhance the accelerated speed and torsional force.


3mm 6mm Stainless Steel Laser Cutting Machine Fast Cam For Craft Gifts / Tube Fittings

Remotely control:
3mm 6mm Stainless Steel Laser Cutting Machine Fast Cam For Craft Gifts / Tube Fittings

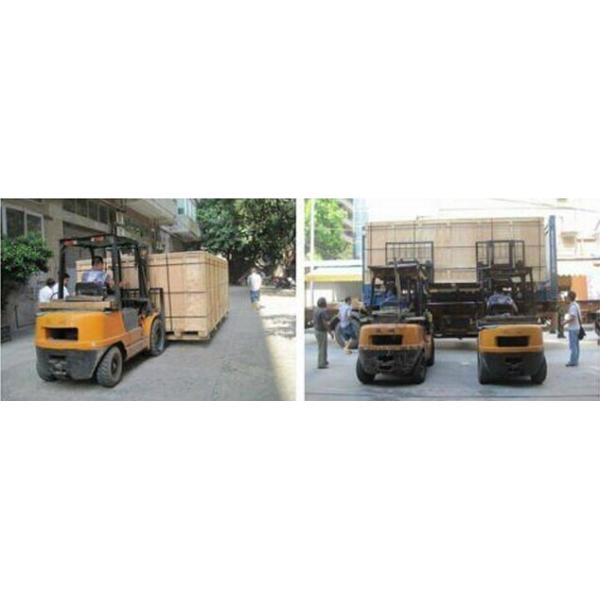

Package and load:
3mm 6mm Stainless Steel Laser Cutting Machine Fast Cam For Craft Gifts / Tube Fittings

Applied industry:

1. sheet metal processing

√

2. aviation

√

3. aerospace

√

4. electronics

√

5. electrical appliances

√

6. tube fittings

√

7. automobile

√

8. food machinery

√

9. textile machinery

√

10. engineering machinery

√

11. precision parts

√

12. ships

√

13. metallurgy equipment

√

14. elevators

√

15. household appliances

√

16. craft gifts

√

17. tool processing

√

18. decoration

√

19. advertising

√

20.metal processing and other manufacturing industries

√
