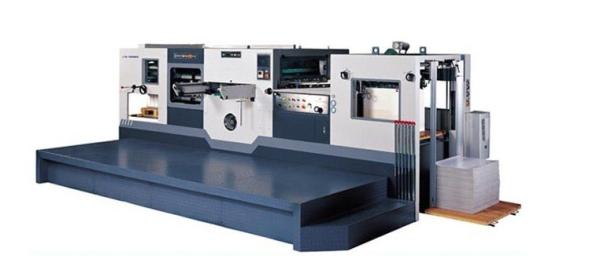

1020H Completely 380V Automatic Die Cutting Equipment and Creasing Machine
1020H Completely 380V Automatic Die Cutting Equipment and Creasing Machine
Specifications
Brand Name :
Diamond
Model Number :
1020H
Certification :
SGS
Place of Origin :
China
MOQ :
1 set
Price :
US $ 80,000 - 100,000 / set
Payment Terms :
L/C, T/T
Supply Ability :
2 sets every month
Delivery Time :
Within 45 days
Packaging Details :
Wood case with hook on the top
Condition :
New
Automatic Grade :
completely automatic
Driven Type :
Electric
Voltage :
380V
Power :
16.82KW
Weight :
18 Tons
Dimension :
L*W*H 5800x2200x2200mm
Description

1020H Completely 380V Automatic Die Cutting Equipment and Creasing Machine

Specifications

Auto Diecutting and Creasing, accurate feeding and position, with or without auto striping, stable, speed max. 7000/hour

Main Features:

· Adopt programmable controller,and it is incorporated with fully automatic feeding,diecutting,delivery,obstacle indicating,checking and measuring
· interface is used to monitor all kinds of trouble,which contributes to easy trouble shooting and operation.
· Using unique cam intermittent construction designed by computer,which ensuring diecutting precision and gripper bars processing stability.
· The driving chain for gripper bar is imported from IWIS,Germany,ensuring precision and life
· The main driving bearing is imported from NSK Japan.
· The main motor is controlled by transducer,which achieves stepless speed regulation and smooth operation.
· PLC,Transducer and all kinds of electric sswitch are imported from FUJI,YASKAWA,and OMRON of JAPAN

Specifications

Max. Paper Size 1020×720mm
Min. Paper Sze 400×360mm
Max. Cutting Size 1010×710mm
Max. Cutting Speed> 6000s/h
Diecutting Precision ±0.1mm
Max. Pressure 250T
Max. Feeding Pile 1100mm
Max. Delivery Pile 1040mm
Sheet Thickness Cardboard 100-2000g/m2 Corrugated paper ≤4mm
Net Weight 13T
Total Power 16.82Kw
Overall Dimensions 4500×2545×1900mm
